Installation Procedure

WARNING: This page is about a different car, the 2007 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

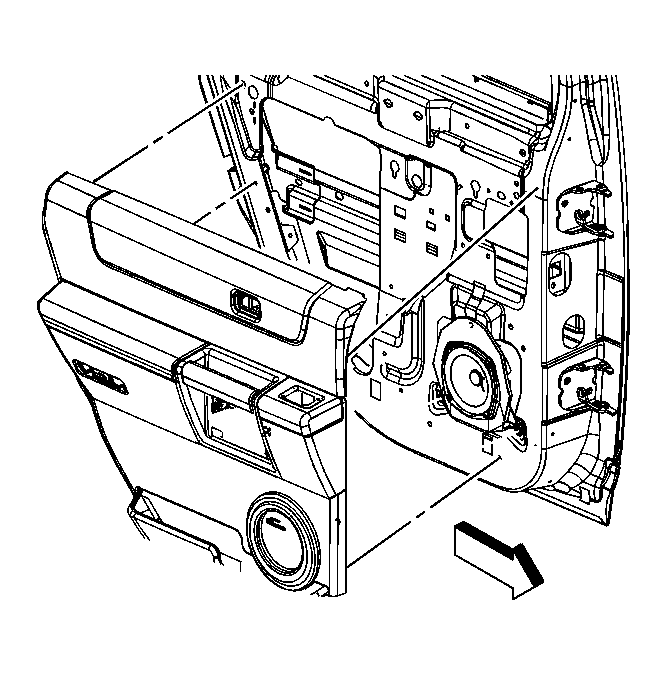

    Fig 1: Side Rear Door Trim Panel
    GM922455Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical wiring harness connectors.
  2. Install the door trim panel to the vehicle.
    1. Align the door trim panel retaining clips with the openings in the door.
    2. Push inward on the door trim panel to engage the fasteners.
  3. Install the door panel retaining screw.
  4. Install the rear door handle bezel. Refer to Rear Door Inside Handle Bezel Replacement .
  5. Install the upper door trim panel. Refer to Upper Extension Trim Panel Replacement .
