Installation Procedure

WARNING: This page is about a different car, the 2007 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

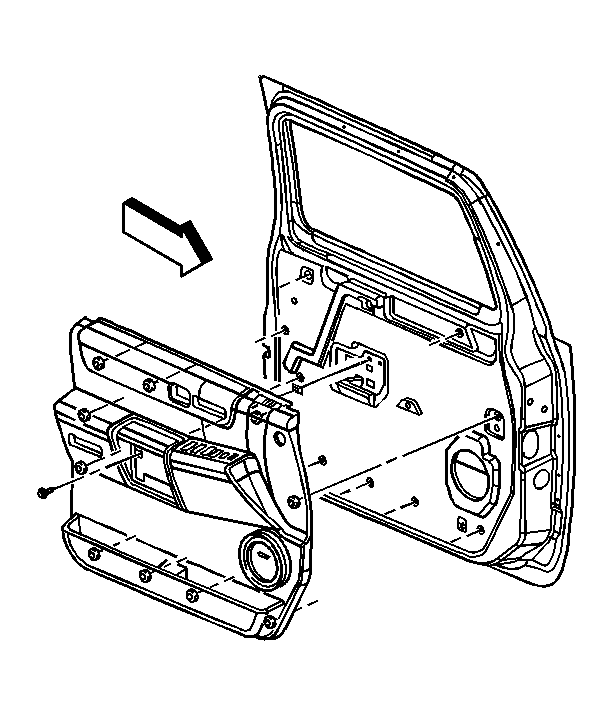

    Fig 1: Side Front Door Trim Panel
    GM833451Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical wiring harness connectors.
  2. Install the door trim panel to the vehicle.
    1. Align the door trim panel retaining clips with the openings in the door.
    2. Push inward on the door trim panel to engage the fasteners.
  3. Install the door window switch. Refer to Door Lock and Side Window Switch Replacement - Driver or Door Lock and Side Window Switch Replacement - Passenger .
  4. Install the door panel retaining screw within the handle bezel opening.
  5. Install the door handle bezel. Refer to Front Side Door Inside Handle Bezel Replacement .
