Removal Procedure

WARNING: This page is about a different car, the 2007 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Rear Seat Belt Lower Anchor
    GM1453842Courtesy of GENERAL MOTORS CORP.
  1. Remove the endgate center molding. Refer to Endgate Center Molding Replacement .
  2. Remove the rear seat belt lower anchor bolt (1). Refer to Seat Belt Retractor Replacement - No. 1 Rear .
  3. Open the endgate.

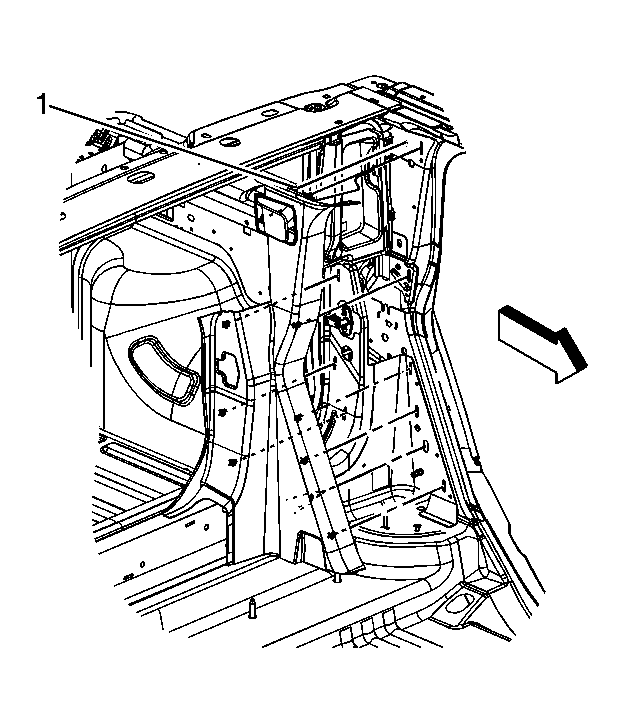

    4. Fig 2: Pillar Upper Garnish
    GM1453838Courtesy of GENERAL MOTORS CORP.
  4. Pull the center pillar upper garnish (1) away from the body towards the center of the vehicle to release the clips.
  5. Remove the seat belt from the center pillar upper garnish (1), through the opening on the trim.
  6. Remove the center pillar upper garnish (1) from the vehicle.
