Removal Procedure

WARNING: This page is about a different car, the 2007 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen the air cleaner outlet duct clamps from the throttle body.
  2. Loosen the air cleaner outlet duct clamps from the mass airflow sensor.
  3. Remove the air cleaner outlet duct.
    4. Fig 1: Radiator Hose & Radiator (Inlet)
    GM801113Courtesy of GENERAL MOTORS CORP.
  4. Remove the radiator inlet hose from the fan shroud retainer (3).
  5. Remove the bolt (5) from the fan shroud (3).
  6. Remove the transmission oil cooler line from the fan shroud retainer.
  7. Rotate the slip ring from under the fan shroud.

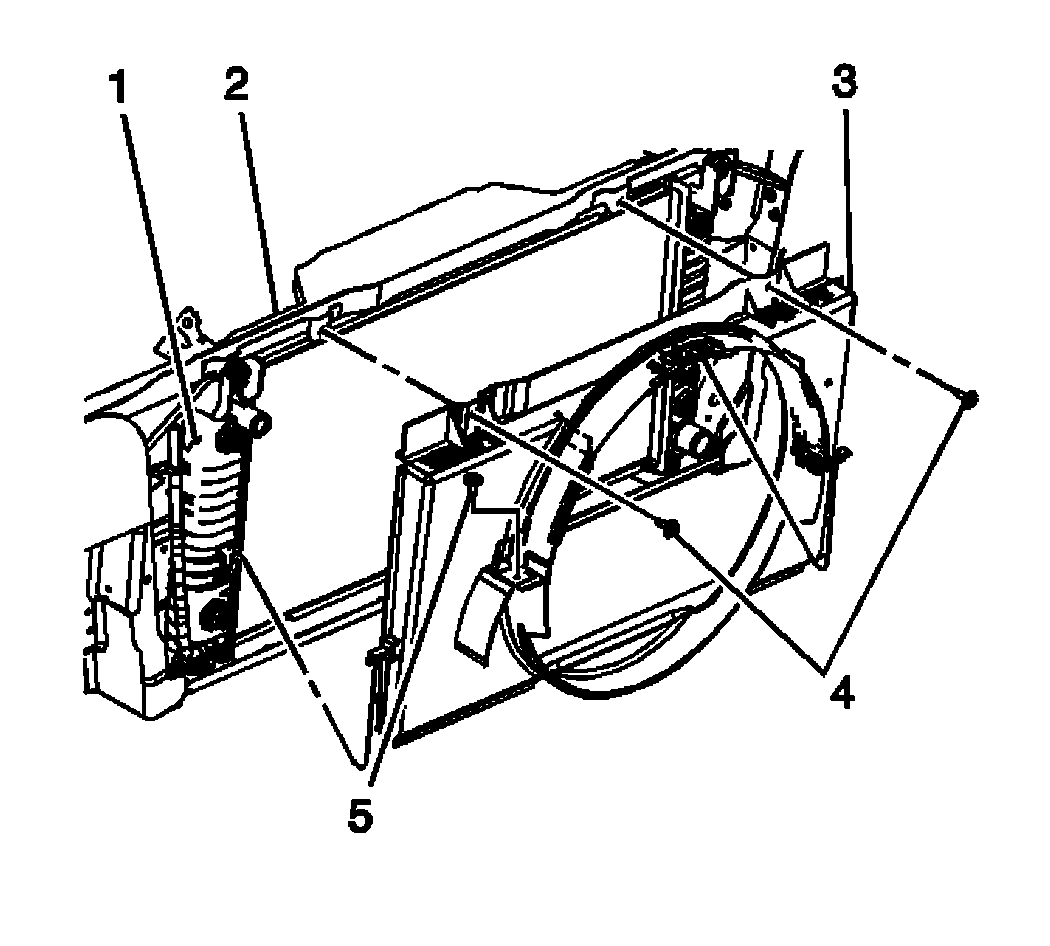

    8. Fig 2: Identifying Fan Shroud
    GM801107Courtesy of GENERAL MOTORS CORP.
  8. Remove the bolts (4) from the fan shroud (3).
  9. Remove the fan shroud (3) from the vehicle.
