Turn Signal Lamp - Right Front (Z75)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 GMC Yukon XL, 2008 GMC Yukon, 2008 Chevrolet Tahoe, 2008 Chevrolet Suburban, and 2008 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

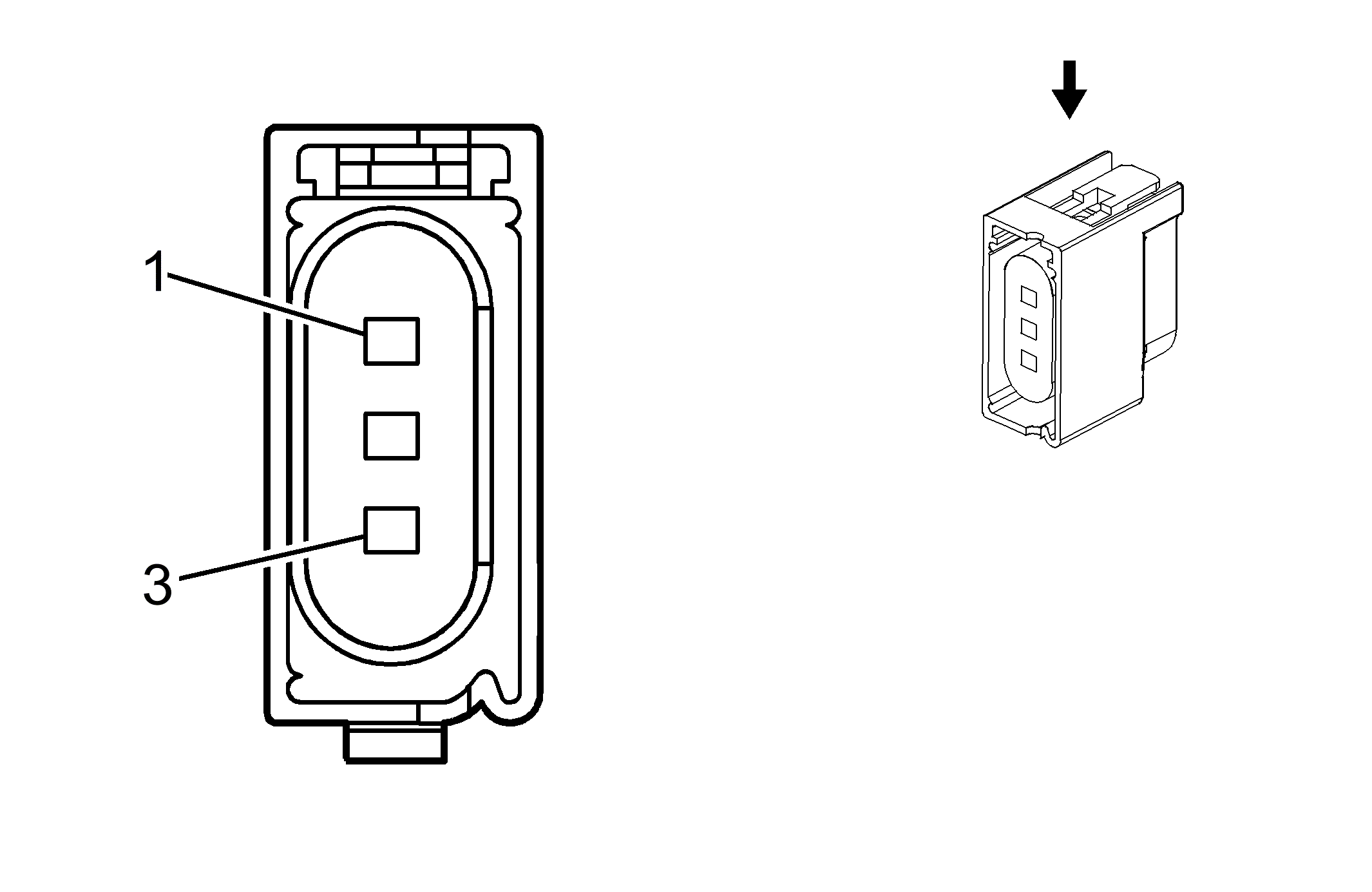

Fig 1: Turn Signal Lamp - Right Front (Z75) Connector End View

Courtesy of GENERAL MOTORS CORP.

Pin	Wire Color	Circuit	Function
1	0.8 L-BU/WH	1314	Left Front Turn Signal Lamp Control
2	-	-	Not Used
3	0.8 BK	150	Ground

Connector Part Information

OEM: 15454375
Service: 88988117
Description: 3-Way F Axial Series (BN)

Terminal Part Information

Terminal/Tray: 7116-4102-08/9
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094430/J-35616-2A (GY)
