Tail Lamp Circuit Board - Left (Z75 with E52)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 GMC Yukon XL, 2008 GMC Yukon, 2008 Chevrolet Tahoe, 2008 Chevrolet Suburban, and 2008 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

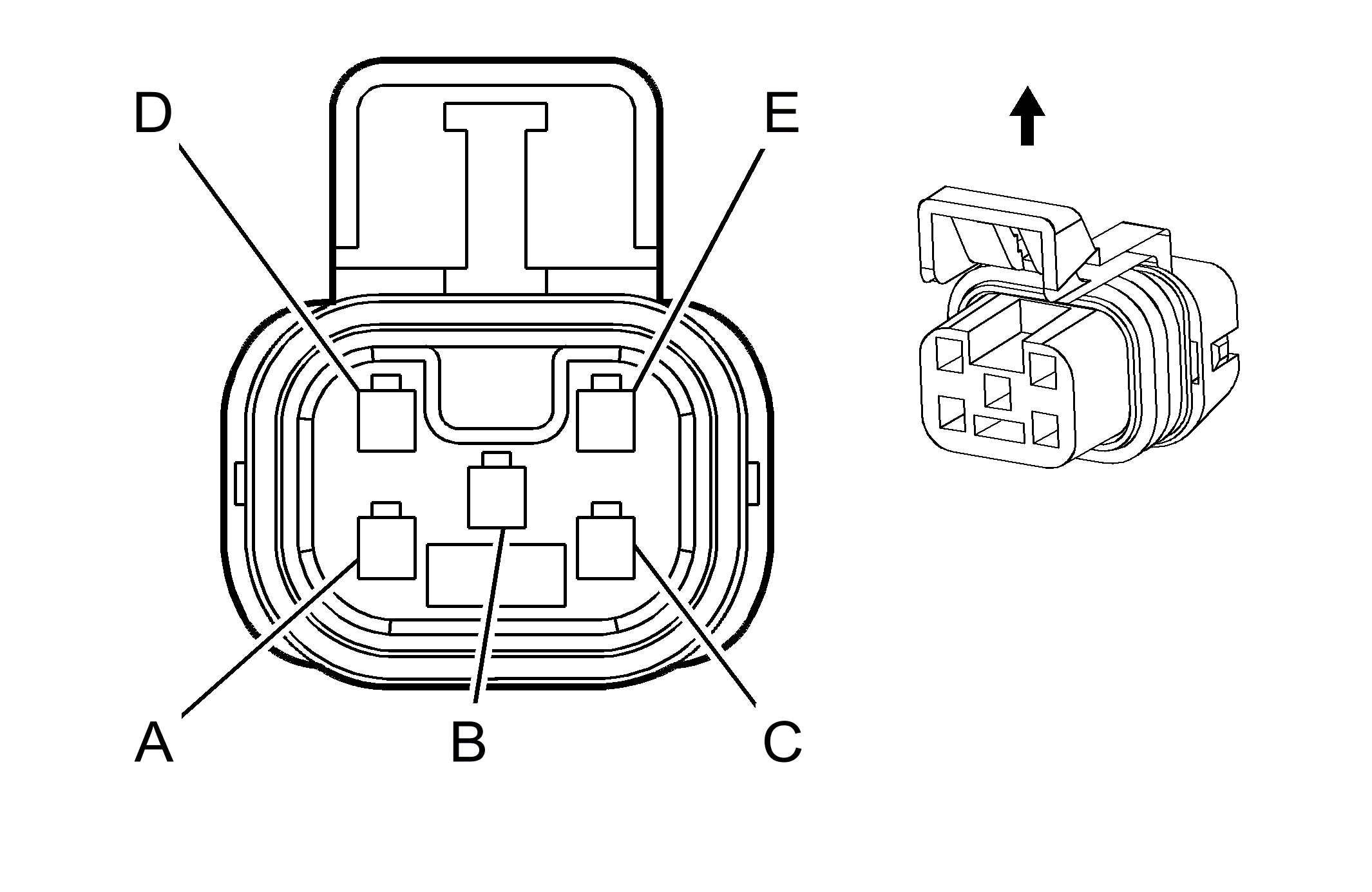

Fig 1: Tail Lamp Circuit Board - Left (Z75 with E52) Connector End View

Courtesy of GENERAL MOTORS CORP.

Pin	Wire Color	Circuit	Function
A	0.5 BN	2509	Left Rear Park Lamps Control
B	0.5 YE/BK	1334	Left Rear Turn Lamp Control (EXP)
B	0.5 YE/BK	1334	Not Used (without EXP)
C	0.5 PK/BK	5356	Left Tail Lamp Outage Detection Signal
D	0.5 BK	1750	Ground
E	0.5 L-BU	20	Left Rear Stop Lamp Control (EXP)
E	0.5 L-BU	18	Left Rear Stop/Turn Lamp Control (except EXP)

Connector Part Information

OEM: 12077591
Service: 12117277
Description: 5-Way F Metri-Pack 150 Series, Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit
