Suspension Damper Solenoid - Right Front (Z55)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 GMC Yukon XL, 2008 GMC Yukon, 2008 Chevrolet Tahoe, 2008 Chevrolet Suburban, and 2008 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Suspension Damper Solenoid - Right Front (Z55) Connector End View
GM287974Courtesy of GENERAL MOTORS CORP.

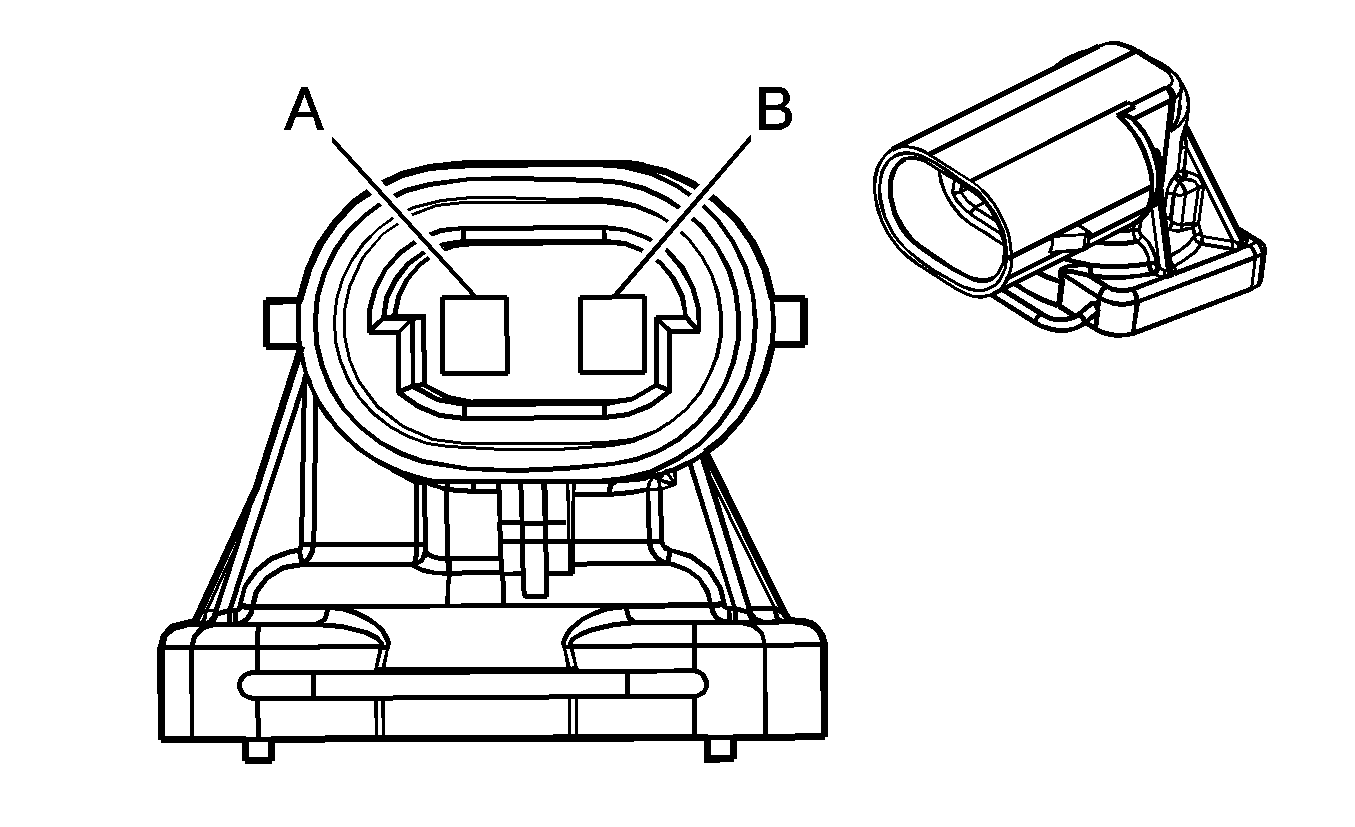

Fig 2: Suspension Damper Solenoid - Right Front (Z55) Connector End View
GM1486322Courtesy of GENERAL MOTORS CORP.
Suspension Damper Solenoid - Right Front (Z55)

Pin Wire Color Circuit Function
A 0.5 L-BU/BK 1116 Right Front Damper Control
B 0.5 GY/BK 1117 Low Reference
Connector Part Information
  • OEM: 15305168
  • Service: 12167117
  • Description: 2-Way F Metri-Pack 150 Series (GY)
  • Suspension Damper Adapter
  • OEM: 15359261
  • Service: 88953232
  • Description: 2-Way M Metri-Pack 150 Series (GY)
Terminal Part Information
  • Terminal/Tray: 12048074/2
  • Core/Insulation Crimp: E/1
  • Release Tool/Test Probe: 12094429/J-35616-2A (GY)
