Steering Wheel Control Switch - Right (UK3)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 GMC Yukon XL, 2008 GMC Yukon, 2008 Chevrolet Tahoe, 2008 Chevrolet Suburban, and 2008 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

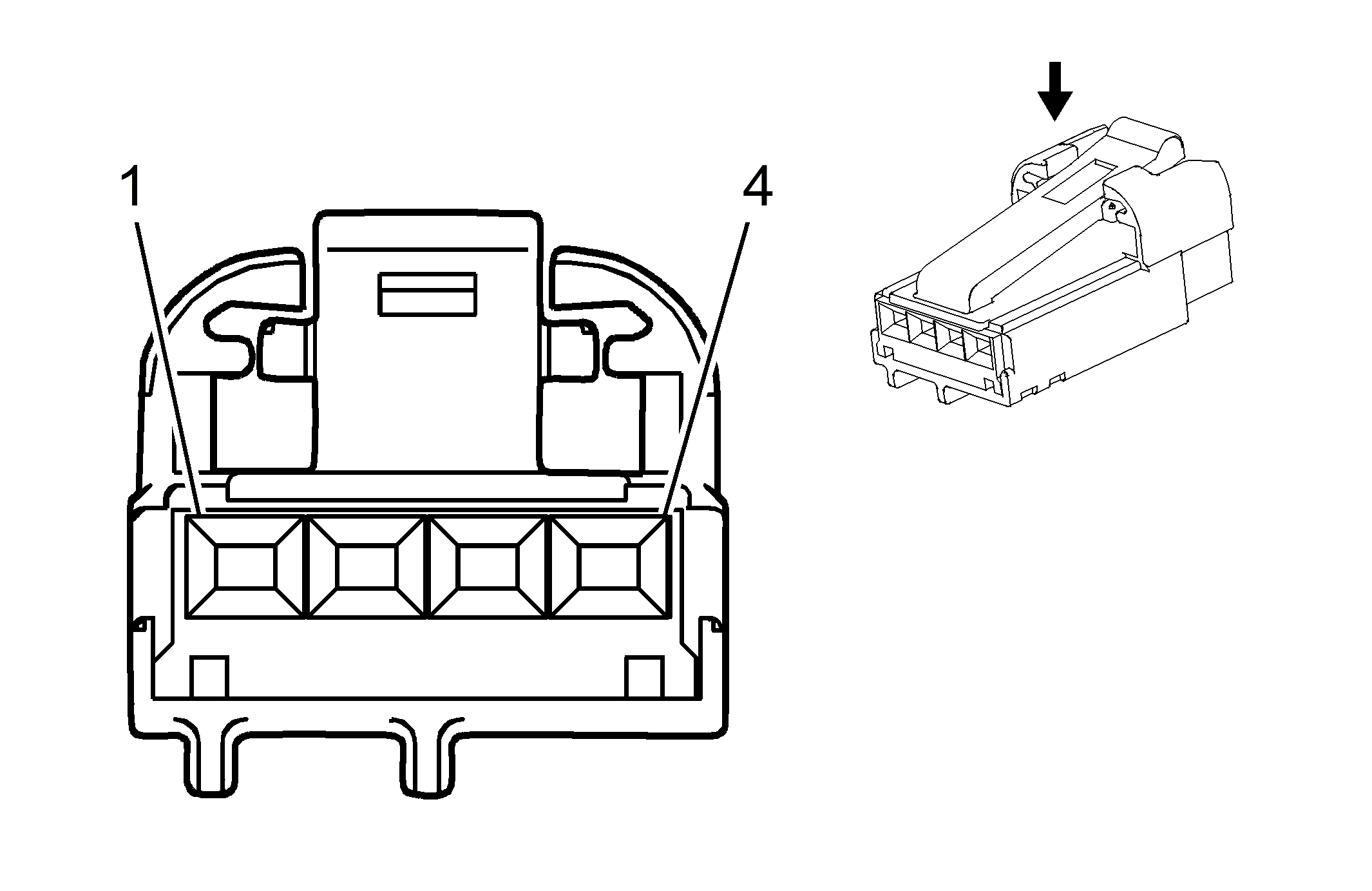

Fig 1: Steering Wheel Control Switch - Right (UK3) Connector End View
GM1711016Courtesy of GENERAL MOTORS CORP.
Steering Wheel Control Switch - Right (UK3)

Pin Wire Color Circuit Function
1 0.35 BK 1050 Ground
2 0.35 BN 6136 Control
3 0.35 PK/BK 1444 12-Volt Reference or I/P Dimming Control
4 0.35 L-GN 6818 Steering Wheel Resistor Ladder Signal 1
Connector Part Information
  • OEM: 15422579
  • Service: See Catalog
  • Description: 4-Way F 0.64 Series (BK)
