Running Board - Left (BRS)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 GMC Yukon XL, 2008 GMC Yukon, 2008 Chevrolet Tahoe, 2008 Chevrolet Suburban, and 2008 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

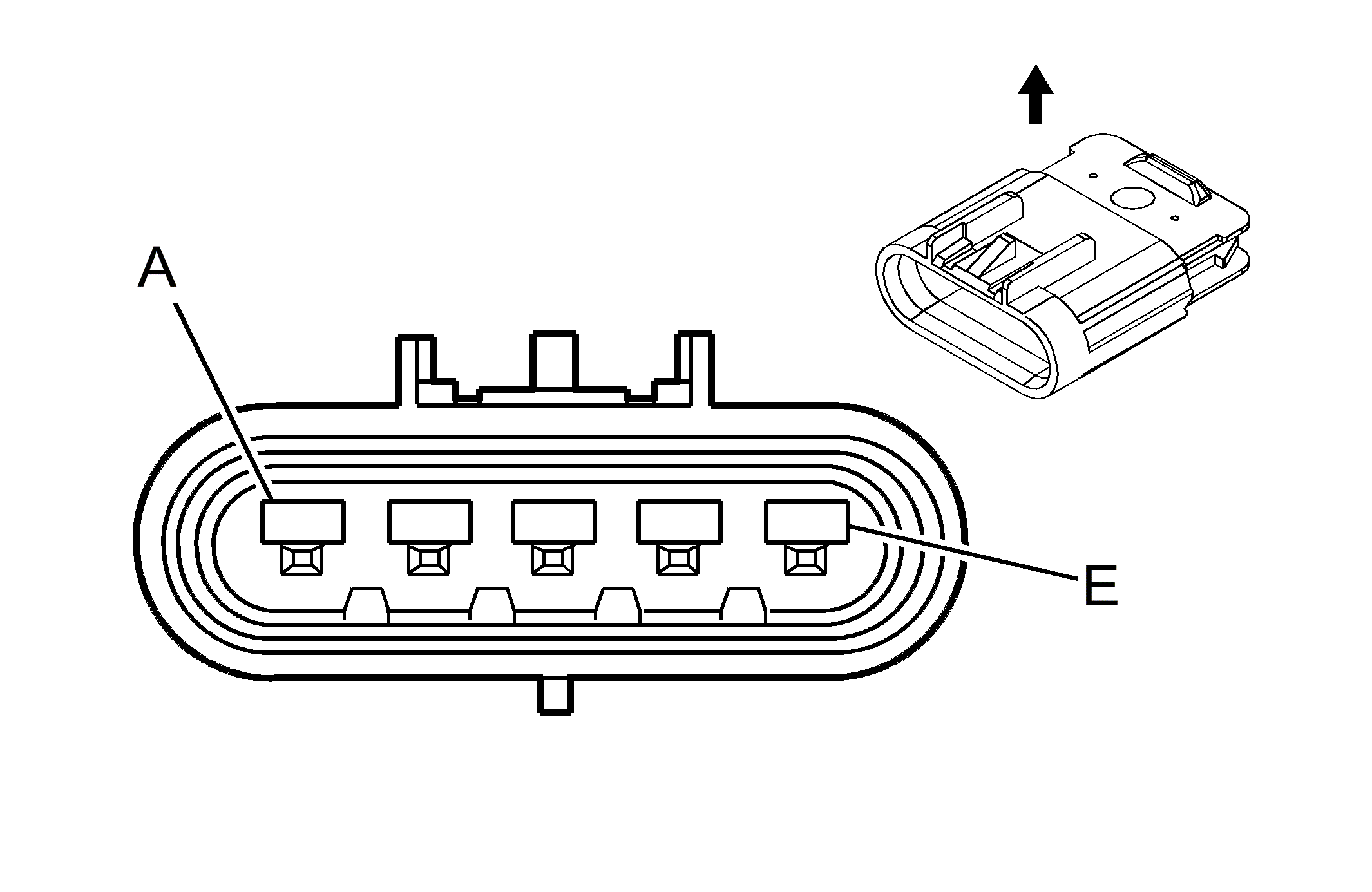

Fig 1: Running Board - Left (BRS) Connector End View
GM893439Courtesy of GENERAL MOTORS CORP.
Running Board - Left (BRS)

Pin Wire Color Circuit Function
A 2 OG 7471 Articulating Running Board Motor Left Control Extend
B 2 GY 7472 Articulating Running Board Motor Left Control Retract
C 0.5 TN 7466 Running Board Motor Sensor Left Return
D 0.5 PK 7468 Running Board Motor Sensor Left Reference
E 0.5 YE 7467 Running Board Motor Sensor Left Signal
Connector Part Information
  • OEM: 15326647
  • Service: 88953360
  • Description: 5-Way F GT 280 Series, Sealed (BK)
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
