Rear Window Wiper Motor (E52)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 GMC Yukon XL, 2008 GMC Yukon, 2008 Chevrolet Tahoe, 2008 Chevrolet Suburban, and 2008 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

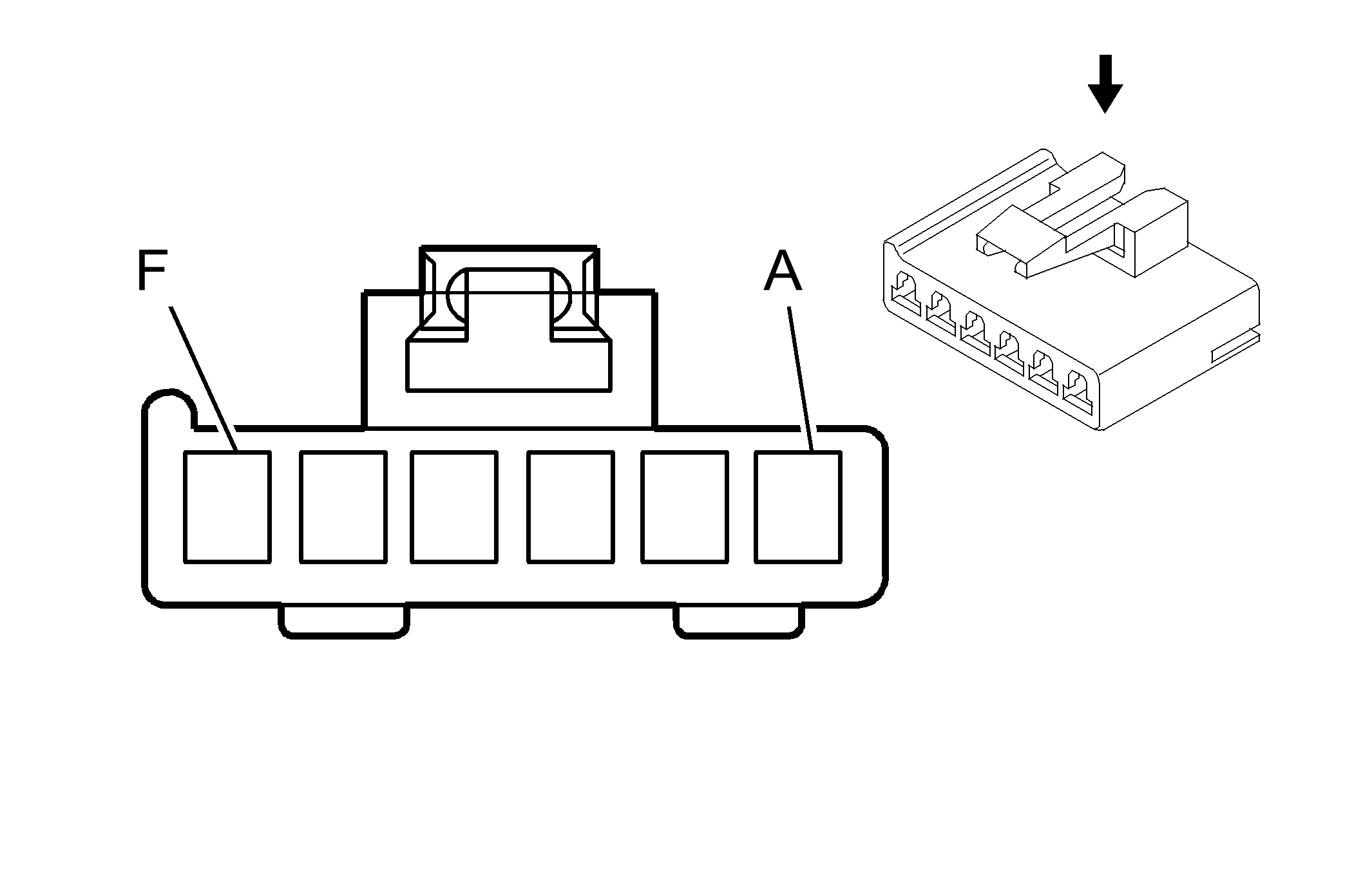

Fig 1: Rear Window Wiper Motor (E52) Connector End View

Courtesy of GENERAL MOTORS CORP.

Pin	Wire Color	Circuit	Function
A	0.35 GY	391	Rear Window Wiper Switch Signal
B	0.35 TN	6188	Lift Glass/Trunk Motor Release Control (except HP2)
C	0.35 PK/BK	1303	Liftgate Ajar Switch Signal
D	1 BK	1450	Ground
E	2 RD/WH	2040	Battery Positive Voltage
F	0.35 L-BU	6795	Lift Glass/Trunk Motor Release Control 2 (except HP2)

Connector Part Information

OEM: 12092254
Service: 12126021
Description: 6-Way F Metri-Pack 280 Series (BK)

Terminal Part Information

Pins: E
Terminal/Tray: 12015858/4
Core/Insulation Crimp: F/G
Release Tool/Test Probe: 12094430/J-35616-4A (PU)

Pins: A, B, C, F
Terminal/Tray: 12034046/2
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 12094430/J-35616-4A (PU)

Pins: D
Terminal/Tray: 12066214/2
Core/Insulation Crimp: F/D
Release Tool/Test Probe: 12094430/J-35616-4A (PU)
