Park Lamp - Left Front (Z75)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 GMC Yukon XL, 2008 GMC Yukon, 2008 Chevrolet Tahoe, 2008 Chevrolet Suburban, and 2008 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

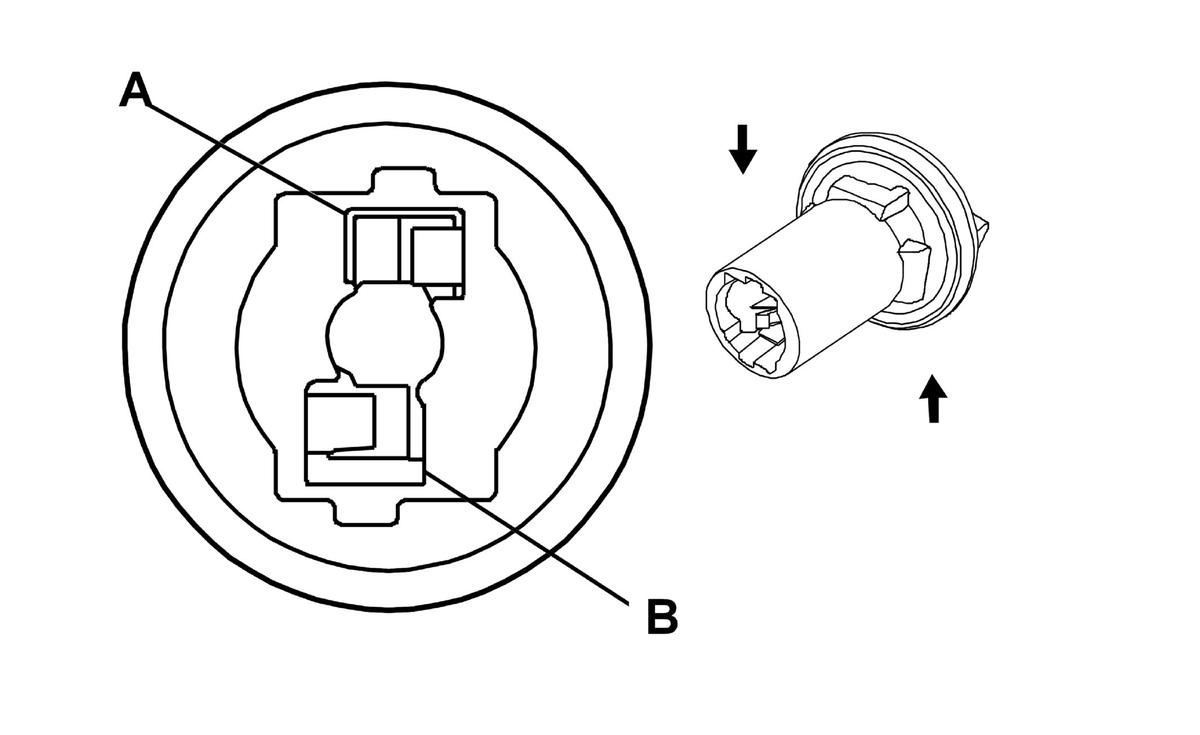

Fig 1: Park Lamp - Left Front (Z75) Connector End View
GM1860844Courtesy of GENERAL MOTORS CORP.
Park Lamp - Left Front (Z75)

Pin Wire Color Circuit Function
A 0.8 BN 2609 Left Front Park Lamp Control
0.5 BN 2609 Left Front Park Lamp Control
B 0.8 BK 1750 Ground
Connector Part Information
  • OEM: 7112-534-4WB
  • Service: See Catalog
  • Description: 2-Way Lamp Socket (BK)
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
