Noise Compensation Microphone (UQS or UQA)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 GMC Yukon XL, 2008 GMC Yukon, 2008 Chevrolet Tahoe, 2008 Chevrolet Suburban, and 2008 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

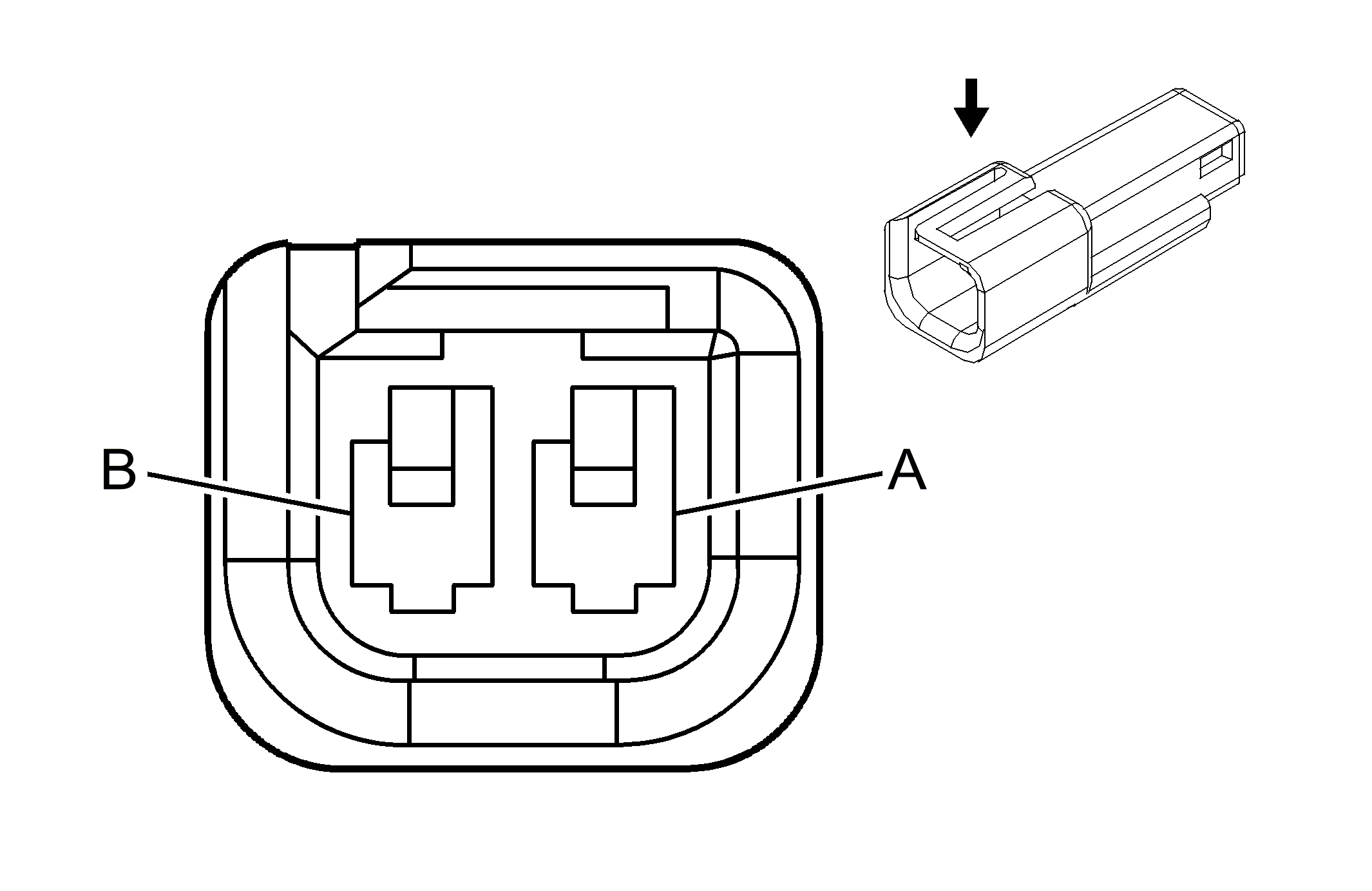

Fig 1: Noise Compensation Microphone (UQS or UQA) Connector End View

Courtesy of GENERAL MOTORS CORP.

Pin	Wire Color	Circuit	Function
A	0.5 BARE	1489	Drain Wire
B	0.5 D-GN	1488	Noise Compensation Microphone Control

Connector Part Information

OEM: 12089868
Service: 12085481
Description: 2-Way M Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: 12047581/2
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094429/J-35616-3 (GY)
