A/Trans Fluid Pump Rotor Package
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 GMC Yukon XL, 2012 GMC Yukon, 2012 Chevrolet Tahoe, 2012 Chevrolet Suburban, and 2012 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

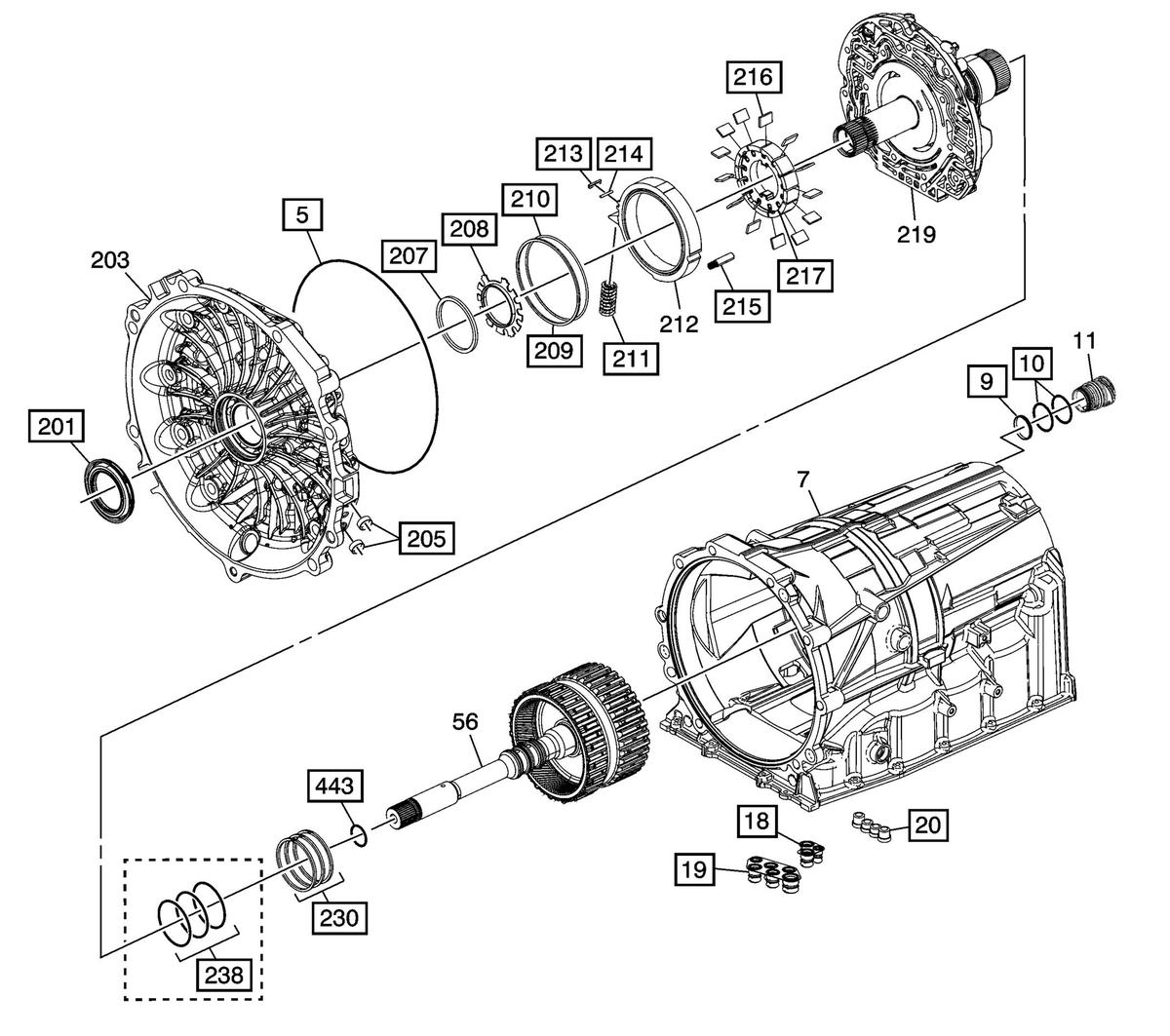

Callouts with boxes around them indicate part is included in the service kit. Callouts without boxes are shown for relationship purposes only.
A/Trans Fluid Pump Rotor Package
| Callout | Quantity | Component Name |
|---|---|---|
| 5 | 1 | A/Trans Fluid Pump Seal |
| 9 | 1 | A/Trans Connector Seal |
| 10 | 2 | A/Trans Connector (O-Ring) Seal |
| 18 | 1 | A/Trans Fluid Pump Seal Assembly |
| 19 | 1 | A/Trans Fluid Pump Seal Assembly |
| 20 | 1 | Center Support Fluid Passage Seal Assembly |
| 201 | 1 | Torque Converter Fluid Seal Assembly |
| 205 | 2 | A/Trans Fluid Cooler Pipe Fitting |
| 207 | 1 | A/Trans Fluid Pump Vane Ring |
| 208 | 1 | A/Trans Fluid Pump Rotor Guide |
| 209 | 1 | A/Trans Fluid Pump Slide Fluid Seal Ring |
| 210 | 1 | A/Trans Fluid Pump Slide (O-Ring) Seal |
| 211 | 1 | A/Trans Fluid Pump Slide Outer Spring |
| 213 | 1 | A/Trans Fluid Pump Slide Seal |
| 214 | 1 | A/Trans Fluid Pump Slide Seal Support |
| 215 | 1 | A/Trans Fluid Pump Slide Pivot Pin |
| 216 | 13 | A/Trans Fluid Pump Vane |
| 217 | 1 | A/Trans Fluid Pump Rotor |
| 230 | 3 | 1-2-3-4 and 3-5 Reverse Clutch Fluid Seal Ring |
| 238 | 3 | 1-2-3-4 and 3-5 Reverse Clutch Fluid Seal Ring |
| 443 | 1 | Turbine Shaft (O-Ring) Seal |
