A/Trans Clutches Seal Kit
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 GMC Yukon XL, 2012 GMC Yukon, 2012 Chevrolet Tahoe, 2012 Chevrolet Suburban, and 2012 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

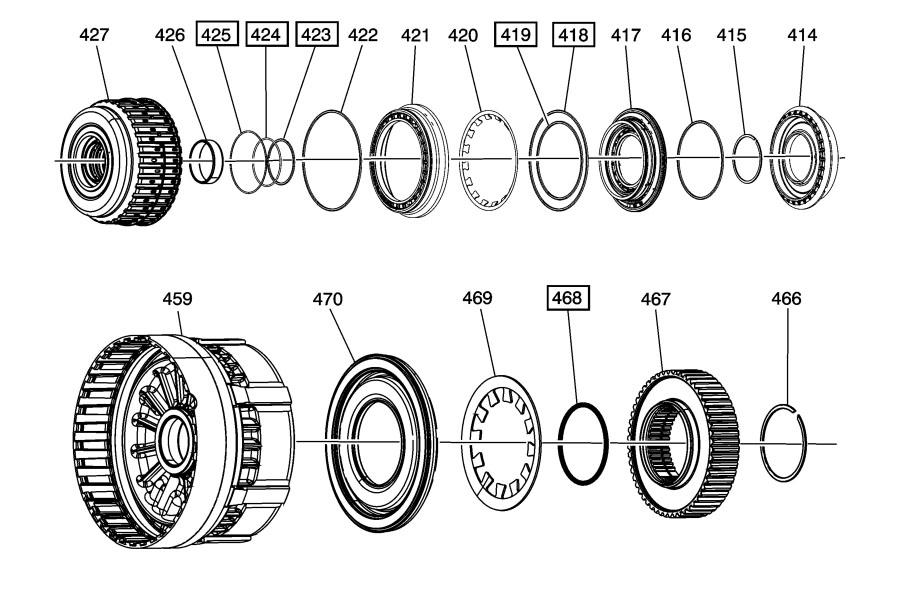

Callouts with boxes around them indicate part is included in the service kit. Callouts without boxes are shown for relationship purposes only.
A/Trans Clutches Seal Kit
| Callout | Quantity | Component Name |
|---|---|---|
| 418 | 2 | 3-5 Reverse Clutch Piston Dam (O-Ring) Seal |
| 419 | 2 | 3-5-Reverse Clutch Piston Inner Seal |
| 423 | 1 | 1-2-3-4 Clutch Piston Inner Seal |
| 424 | 1 | 1-2-3-4 Clutch Piston Housing Seal |
| 425 | 1 | 1-2-3-4 Clutch Piston Housing Seal |
| 468 | 1 | Low Clutch Sprag Seal |
