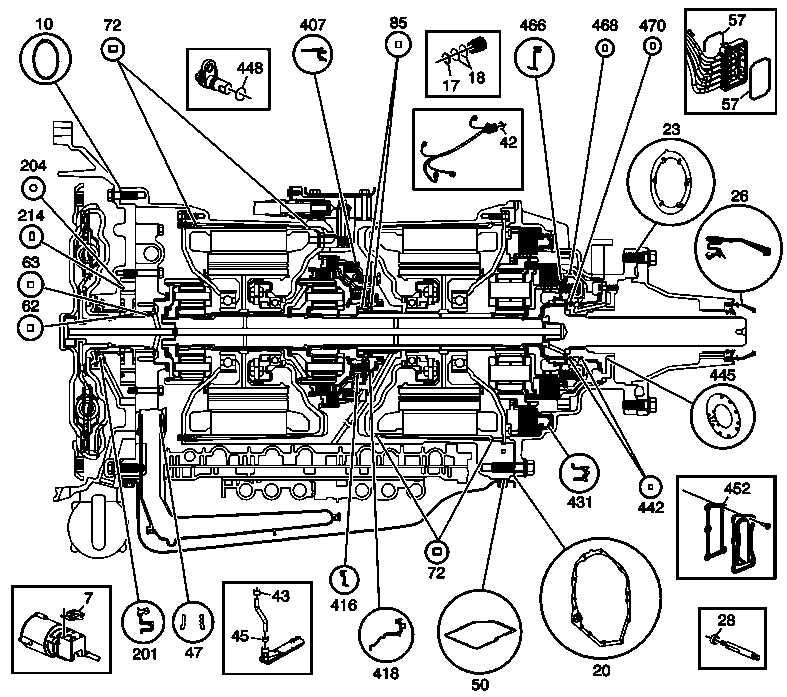

Seal Locations
WARNING: This page is about a different car, the 2012 GMC Yukon, 2012 Chevrolet Tahoe, and 2012 Cadillac Escalade. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 7 | A/Trans Auxiliary Fluid Pump Gasket |
| 10 | A/Trans Torque Dampener Housing Gasket |
| 17 | 24-Way Assembly Connector Lip Seal |
| 18 | 24-Way Assembly Connector O-Ring Seal |
| 20 | A/Trans Rear Case Gasket |
| 23 | Extension Assembly Gasket |
| 26 | Output Seal (2WD Only) |
| 28 | Manual Shift Shaft Seal |
| 42 | A/Trans Control Wiring Harness Extension Harness O-Ring Seal |
| 43 | A/Trans Auxiliary Fluid Filter Seal |
| 45 | A/Trans Auxiliary Fluid Filter Seal |
| 47 | A/Trans Fluid Filter Seal Assembly |
| 50 | A/Trans Fluid Pan Gasket |
| 57 | Generator Power Inverter Module Cable Housing Cover Seal (Qty: 2) |
| 62 | Input Shaft Fluid Seal Ring |
| 63 | A/Trans Torque Dampener Clutch Fluid Seal Ring |
| 72 | Generator Drive Motor Housing Seal |
| 85 | 1-3 Clutch Housing Fluid Seal Ring |
| 201 | A/Trans Fluid Pump Seal |
| 204 | A/Trans Fluid Pump Slide Seal |
| 214 | Pump Slide Fluid Seal Ring |
| 407 | 4th Clutch Piston |
| 416 | 1-3 Clutch Piston Dam |
| 418 | 1-3 Clutch Piston |
| 431 | 1-2 Clutch Piston |
| 442 | 2-3-4 Clutch Housing Seal Ring |
| 445 | 2-3-4 Clutch Support Gasket |
| 448 | A/Trans Output Speed Sensor Seal |
| 452 | Park Pawl Cover Gasket |
| 466 | 2-3-4 Clutch Piston Dam |
| 468 | 2-3-4 Clutch Seal |
| 470 | 2-3-4 Clutch Seal |
