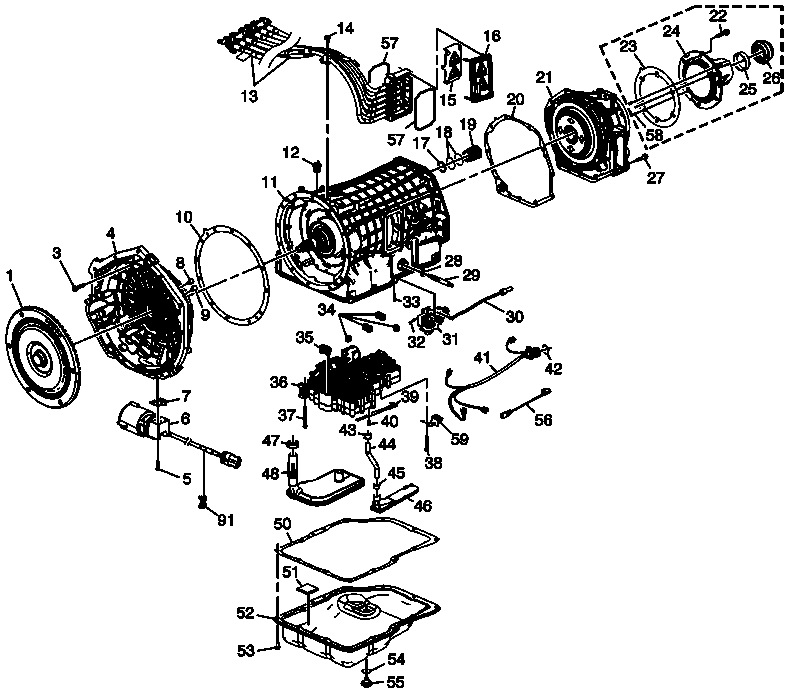

Case and Associated Parts
WARNING: This page is about a different car, the 2012 GMC Yukon, 2012 Chevrolet Tahoe, and 2012 Cadillac Escalade. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | A/Trans Torque Dampener Assembly |
| 3 | A/Trans Fluid Pump Cover Bolt |
| 4 | A/Trans Torque Dampener (w/Fluid Pump) Housing Assembly |
| 5 | A/Trans Auxiliary Fluid Pump Bolt |
| 6 | A/Trans Auxiliary Fluid Pump Assembly |
| 7 | A/Trans Auxiliary Fluid Pump Gasket |
| 8 | A/Trans Torque Dampener Fluid Passage Plug |
| 9 | A/Trans Torque Dampener Fluid Passage Plug |
| 10 | A/Trans Torque Dampener Housing Gasket |
| 11 | A/Trans Case Assembly |
| 12 | Transmission Fluid Fill Tube Seal |
| 13 | Drive Motor Generator Power Inverter Module (3 Phase) Cable Assembly |
| 14 | Drive Motor Generator Power Inverter Module Cable Retaining Bolt |
| 15 | Drive Motor Generator Power Inverter Module Cable Terminal External Bolt Protective Cover |
| 16 | Drive Motor Generator Power Inverter Module (3 Phase) Cable Cover |
| 17 | 24-Way Assembly Connector Lip Seal |
| 18 | 24-Way Assembly Connector O-Ring Seals |
| 19 | 24-Way Assembly Connector |
| 20 | A/Trans Rear Case Gasket |
| 21 | A/Trans Rear Case Assembly |
| 22 | A/Trans Rear Case Bolt |
| 23 | Gasket (2WD Output Only) |
| 24 | 2WD Output Housing Extension Assembly |
| 25 | 2WD Output Bushing |
| 26 | Output Seal (2WD Only) |
| 27 | A/Trans Rear Case Bolt |
| 28 | Manual Shift Shaft Seal |
| 29 | Manual Shift Shaft |
| 30 | Park Pawl Actuator Assembly |
| 31 | A/Trans Manual Shift Shaft Position Switch Assembly |
| 32 | A/Trans Manual Shift Shaft Position Switch Bolt |
| 33 | Manual Shift Shaft Pin |
| 34 | Hybrid Low, 1-2 Clutch Regulator Valve Seal |
| 35 | A/Trans Fluid Pump Seal Assembly |
| 36 | Control (w/ Body and Valve) Valve Assembly |
| 37 | Control Valve Upper Body Bolt |
| 38 | Control Valve Upper Body Bolt |
| 39 | Manual Shift Detent Assembly |
| 40 | Manual Shift Detent Spring Bolt |
| 41 | A/Trans Control Wiring Harness Extension Harness Assembly |
| 42 | A/Trans Control Wiring Harness Extension Harness O-Ring Seal |
| 43 | A/Trans Auxiliary Fluid Filter Seal |
| 44 | A/Trans Auxiliary Fluid Pump Outlet Pipe |
| 45 | A/Trans Auxiliary Fluid Filter Seal |
| 46 | A/Trans Auxiliary Fluid Pump Filter Assembly |
| 47 | A/Trans Fluid Filter Seal Assembly |
| 48 | A/Trans Fluid Filter Assembly |
| 50 | A/Trans Fluid Pan Gasket |
| 51 | A/Trans Fluid Pan Magnet |
| 52 | A/Trans Fluid Pan Assembly |
| 53 | A/Trans Fluid Pan Bolt |
| 54 | A/Trans Fluid Pan Drain Plug O-Ring Seal |
| 55 | Drain Plug Assembly |
| 56 | A/Trans Wiring Harness Assembly |
| 57 | Drive Motor Generator Power Inverter Module Cable Housing Cover Seal |
| 58 | 2WD Output Housing Extension Assembly Guide Pins |
| 59 | Internal Wire Harness Side Bracket |
| 91 | A/Trans Wiring Harness Clip |
