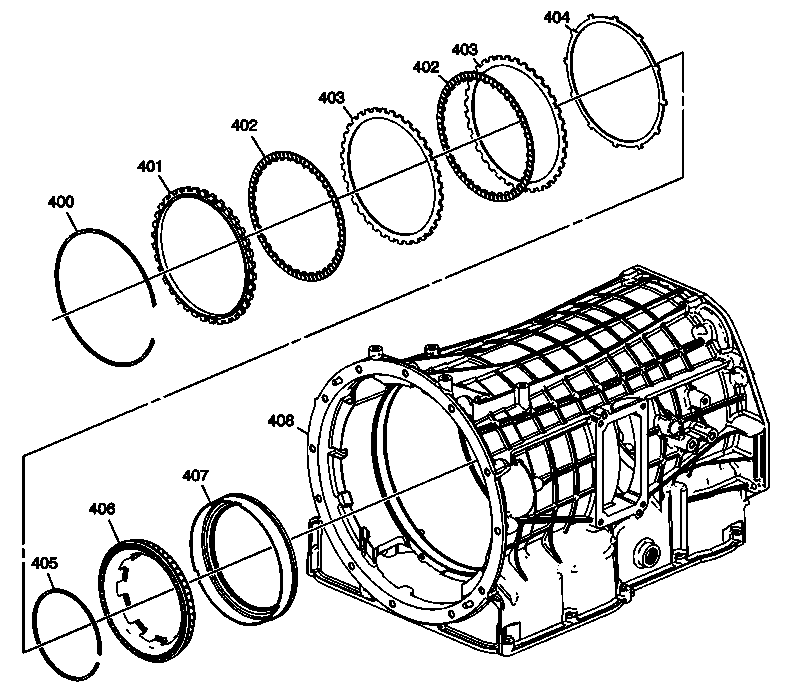

4th Clutch Assembly
WARNING: This page is about a different car, the 2012 GMC Yukon, 2012 Chevrolet Tahoe, and 2012 Cadillac Escalade. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY
| Callout |
Component Name |
| 400 |
4th Clutch Piston Retaining Ring |
| 401 |
4th Clutch Backing Plate |
| 402 |
4th Clutch Plate Assembly |
| 403 |
4th Clutch Plate |
| 404 |
4th Clutch Waved Plate |
| 405 |
4th Clutch Piston Retaining Ring |
| 406 |
4th Clutch Piston Retaining Spring Assembly |
| 407 |
4th Clutch Piston |
| 408 |
A/Trans Case Assembly |
