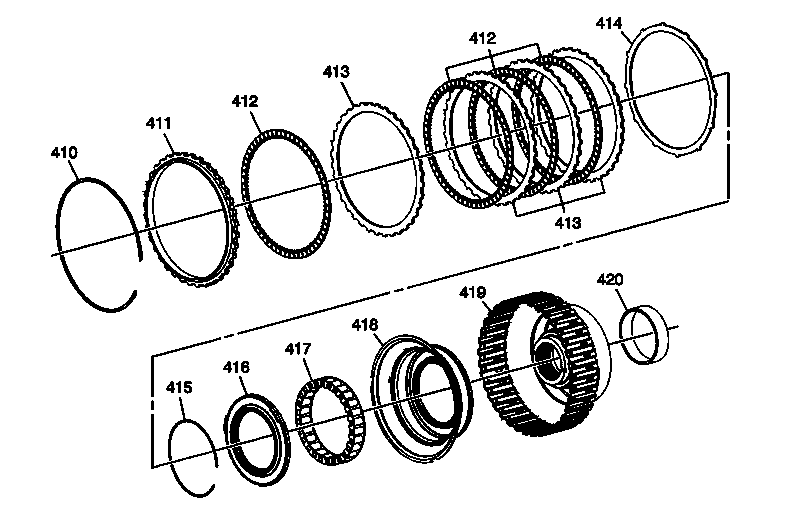

1-3 Clutch Assembly
WARNING: This page is about a different car, the 2012 GMC Yukon, 2012 Chevrolet Tahoe, and 2012 Cadillac Escalade. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 410 | 1-3 Clutch Retaining Ring |
| 411 | 1-3 Clutch Backing Plate |
| 412 | 1-3 Clutch Plate Assembly |
| 413 | 1-3 Clutch Plate |
| 414 | 1-3 Clutch Plate - Waved |
| 415 | 1-3 Clutch Piston Retaining Ring |
| 416 | 1-3 Clutch Piston Dam |
| 417 | 1-3 Clutch Retaining Spring |
| 418 | 1-3 Clutch Piston |
| 419 | 1-3 Clutch Housing Assembly |
| 420 | 1-3 Clutch Housing Bushing |
