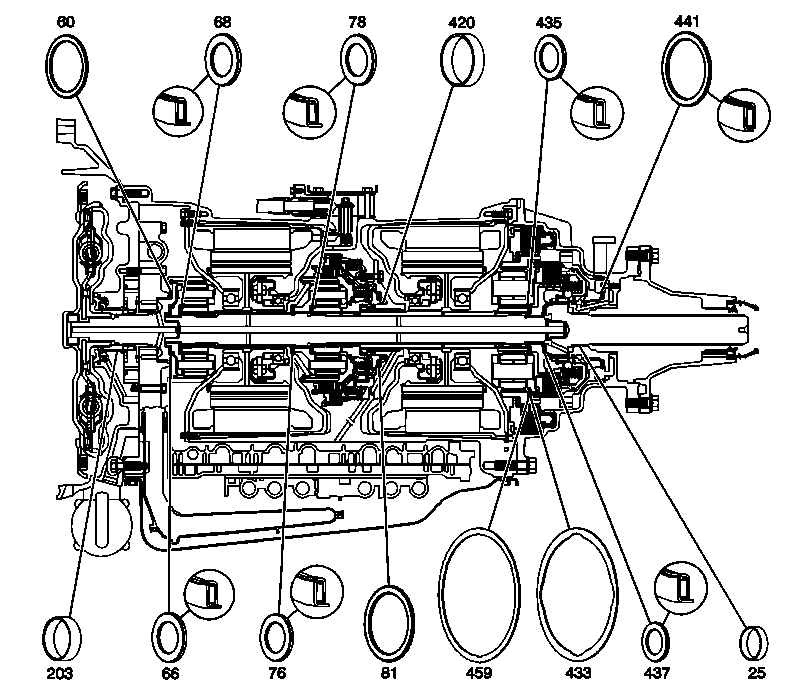

Bushing, Bearing, and Washer Locations
WARNING: This page is about a different car, the 2012 GMC Yukon, 2012 Chevrolet Tahoe, and 2012 Cadillac Escalade. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 25 | 2WD Output Bushing |
| 60 | Input Shaft Thrust Bearing Assembly |
| 66 | Sun Gear Carrier Thrust Bearing Assembly |
| 68 | Internal Gear Thrust Bearing Assembly |
| 76 | Internal Gear Thrust Bearing Assembly |
| 78 | 2-3-4 Clutch Hub Thrust Bearing Assembly |
| 81 | 2-3-4 Clutch Housing Thrust Bearing Assembly |
| 203 | Input Shaft Bushing |
| 420 | 1-3 Clutch Housing Bushing |
| 433 | Internal Gear Thrust Washer - 3rd Position - Steel |
| 435 | Internal Gear Thrust Bearing Assembly |
| 437 | Output Shaft Thrust Bearing Assembly |
| 441 | 2-3-4 Clutch Housing Thrust Bearing Assembly |
| 459 | Internal Gear Thrust Washer - 3rd Position - Plastic |
