Ball Check Valve Locations

WARNING: This page is about a different car, the 2012 GMC Yukon, 2012 Chevrolet Tahoe, and 2012 Cadillac Escalade. However, it is still accessible from the selected car via links, so may be relevant.

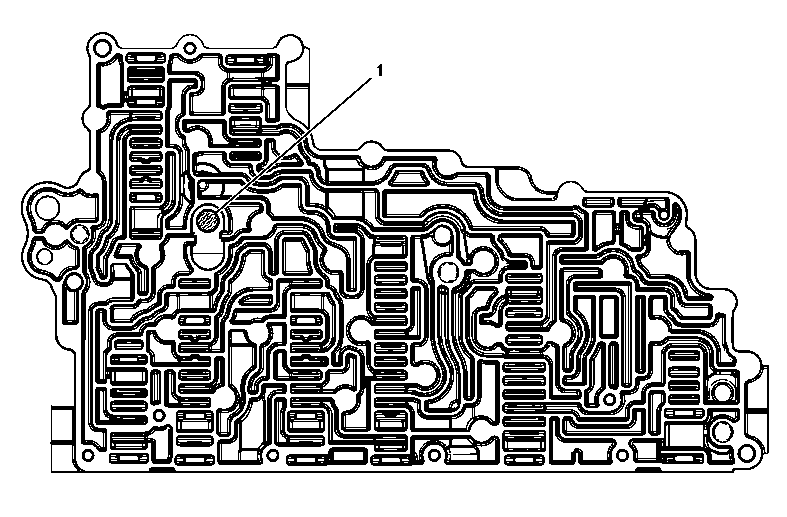

Fig 1: Identifying Ball Check Valve Locations
GM1869861Courtesy of GENERAL MOTORS COMPANY
Ball Check Valve Locations

I.D. Input Oil Input Oil Output Oil
1 Line Auxiliary Line Line and Auxiliary Line
