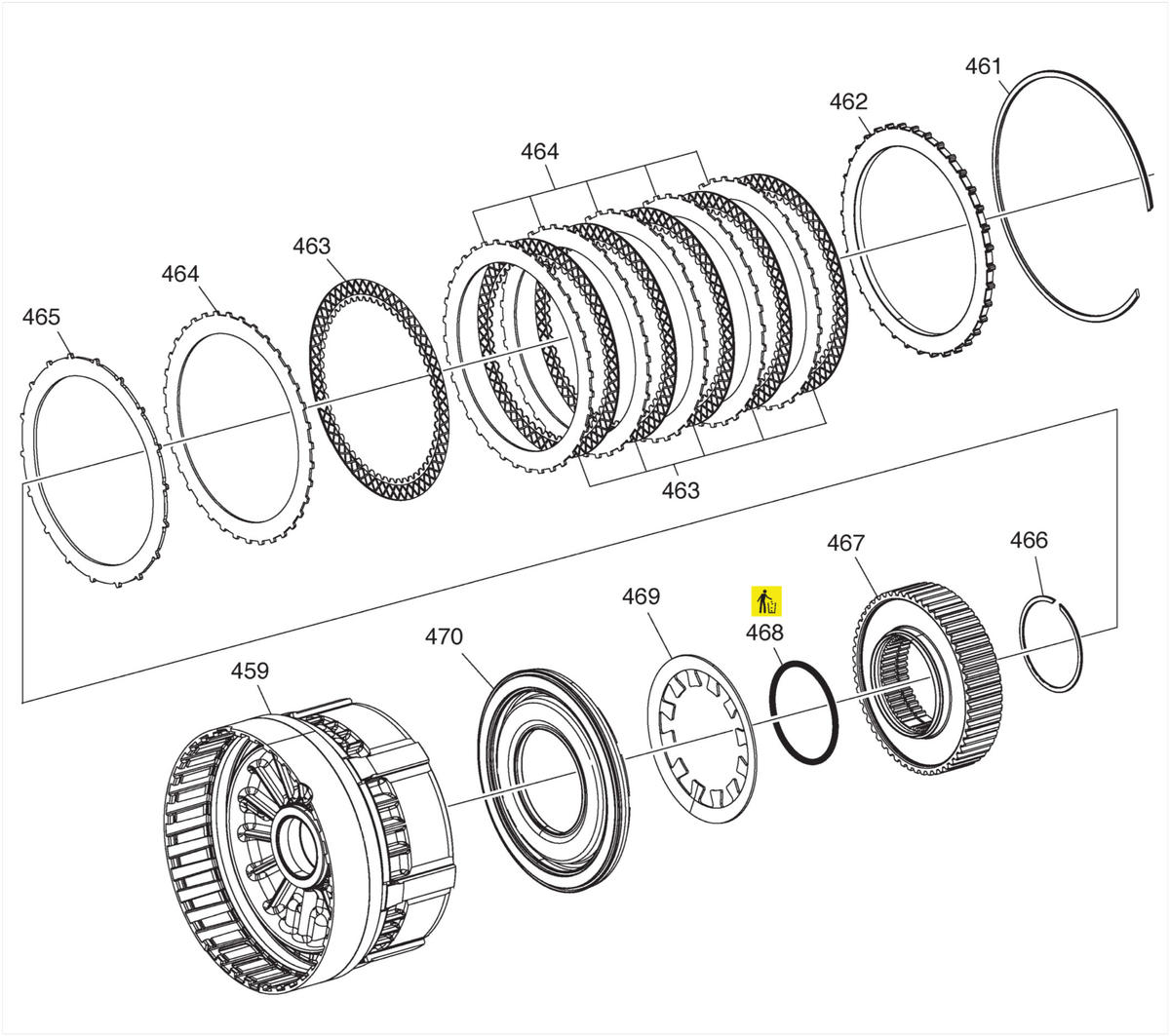

Low and Reverse Clutch Assembly
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 GMC Yukon XL, 2012 GMC Yukon, 2012 Chevrolet Tahoe, 2012 Chevrolet Suburban, and 2012 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 459 | Center Support Assembly |
| 461 | Low and Reverse Clutch Backing Plate Retaining Ring |
| 462 | Low and Reverse Clutch Backing Plate |
| 463 | Low and Reverse Clutch Plate Assembly |
| 464 | Low and Reverse Clutch Plate |
| 465 | Low and Reverse Clutch (Waved) Plate |
| 466 | Low and Reverse Clutch Spring Retaining Ring |
| 467 | Low Clutch Sprag Assembly |
| 468 | Low Clutch Sprag Seal |
| 469 | Low and Reverse Clutch Spring |
| 470 | Low and Reverse Clutch Piston Assembly |
