Transmission Control Wiring Harness Extension Harness Installation
WARNING: This page is about a different car, the 2012 GMC Yukon, 2012 Chevrolet Tahoe, and 2012 Cadillac Escalade. However, it is still accessible from the selected car via links, so may be relevant.

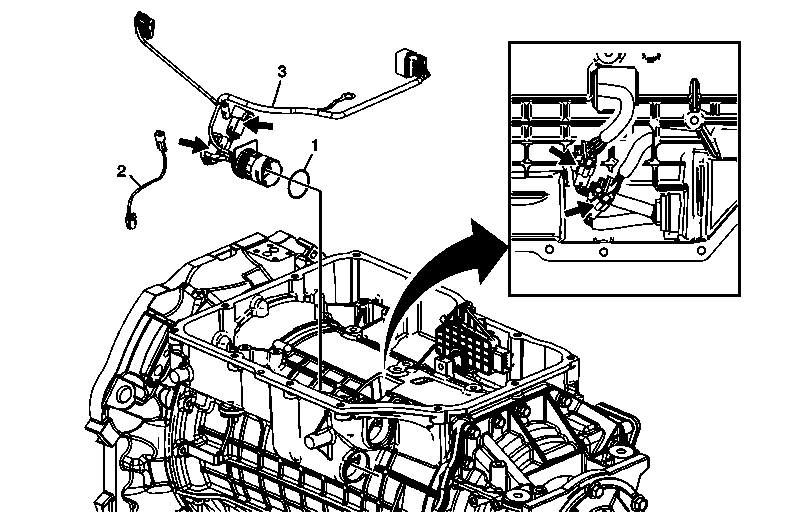

Courtesy of GENERAL MOTORS COMPANY Transmission Control Wiring Harness Extension Harness Installation
| Callout |
Component Name |
| 1 |
A/Trans Control Wiring Harness Extension Harness O-Ring Seal
TIP:
Use only a NEW Seal. |
| 2 |
A/Trans Control Wiring Harness Extension Harness Assembly |
