Control Valve Assembly Removal
WARNING: This page is about a different car, the 2012 GMC Yukon, 2012 Chevrolet Tahoe, and 2012 Cadillac Escalade. However, it is still accessible from the selected car via links, so may be relevant.
Control Valve Assembly Removal

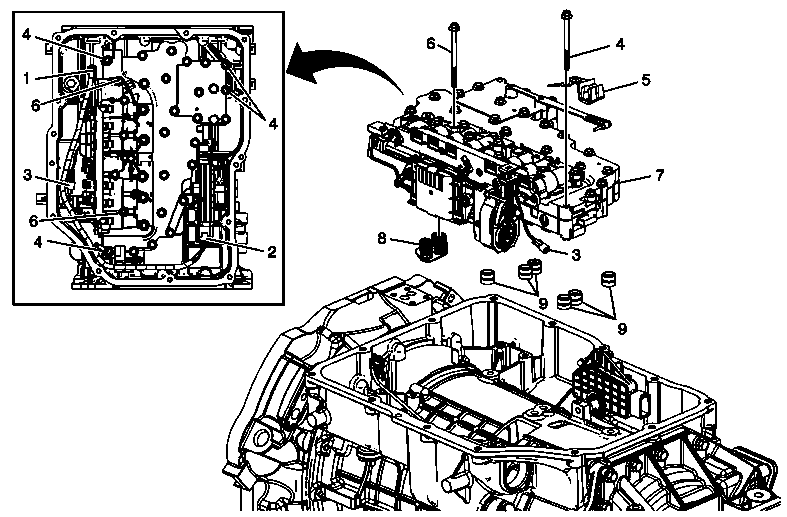

| Callout | Component Name |
|---|---|
| 1 | Control Solenoid (with Body and TCM) Valve Assembly Procedure Disconnect the wiring harness. |
| 2 | Shift Shaft Position Switch Procedure Disconnect the wiring harness. |
| 3 | A/Trans Wiring Harness Assembly Procedure Disconnect the wiring harness. |
| 4 | Control Valve Upper Body Bolt M6 x1.0 x 65 (Qty: 4) TIP: Do not remove all the bolts in the control valve body assembly. Remove only the bolts indicated. |
| 5 | Internal Wire Harness Side Bracket |
| 6 | Control Valve Upper Body Bolt M6 x 1.0 x 80 (Qty: 2) |
| 7 | Control (with Body and Valve) Valve Assembly
CAUTION:
Use care when handling the control valve body assembly. If dropped, damage to the control solenoid valve body assembly internal components, including the transmission control module (TCM), may result. |
| 8 | A/Trans Fluid Pump Seal Assembly TIP: Do not reuse the seal assembly. |
| 9 | Hybrid Low, 1-2 Clutch Regulator Valve Seal (Qty: 6) TIP: Do not reuse the seal assembly. |
