Manual Shaft Detent Assembly Removal
WARNING: This page is about a different car, the 2012 GMC Yukon, 2012 Chevrolet Tahoe, and 2012 Cadillac Escalade. However, it is still accessible from the selected car via links, so may be relevant.

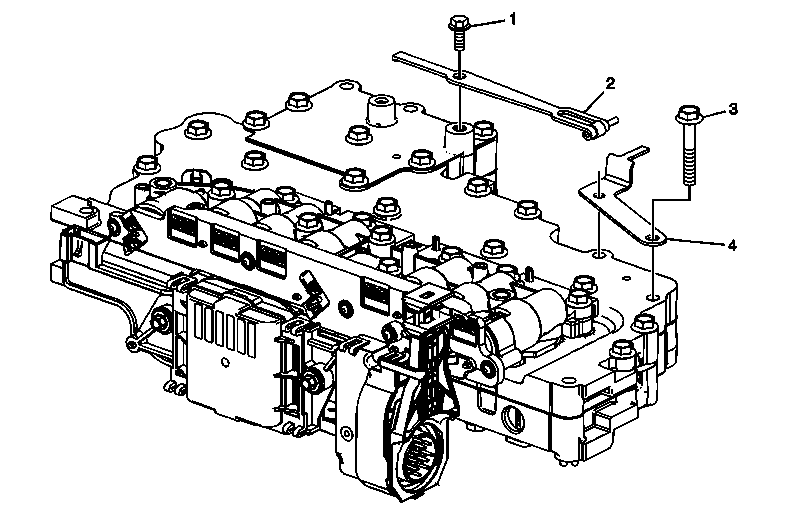

Courtesy of GENERAL MOTORS COMPANY Manual Shaft Detent Assembly Removal
| Callout |
Component Name |
| 1 |
Manual Shift Detent Spring Bolt |
| 2 |
Manual Shift Detent Assembly |
| 3 |
Control Valve Channel Plate Bolt M6 x 1.0 x 35 (Qty: 2) |
| 4 |
A/Trans Manual Shift Shaft Position Switch Assembly Bracket |
