Automatic Transmission Electrical Connector Passage Sleeve Installation
WARNING: This page is about a different car, the 2012 GMC Yukon, 2012 Chevrolet Tahoe, and 2012 Cadillac Escalade. However, it is still accessible from the selected car via links, so may be relevant.
Automatic Transmission Electrical Connector Passage Sleeve Installation

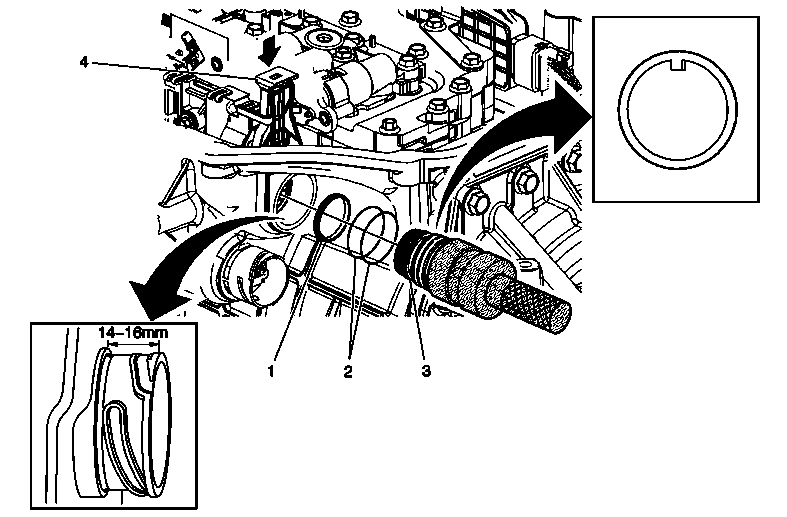

| Callout | Component Name |
|---|---|
| 1 | A/Trans Electrical Connector Passage Lip Seal TIP: Inspect the lip seal for damage. |
| 2 | A/Trans Electrical Connector Passage O-Ring Seal TIP: Inspect the O-Ring seals for damage. |
| 3 | A/Trans Electrical Connector Passage Sleeve
CAUTION:
Orientate the alignment tab inside the passage sleeve with the slot in the electrical connector of the control solenoid valve assembly. Push the sleeve straight into the case bore and connector. Do NOT rotate the sleeve at any time. Ensure the sleeve is fully seated into the case. When the sleeve is properly installed, the distance from the case surface to the end of the sleeve should be 14-16 mm. Even though the correct electrical connections may still be maintained, failure to ensure proper installation of the sleeve may result in a fluid leak around the sleeve lip seal and into the sleeve cavity. Specification 14-16 mm Special Tools
|
| 4 | Electrical Connector Slide Lock TIP: Push down on the electrical connector slide lock to ensure proper installation. |
