Torque Converter Removal and Holding Fixture Installation

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 GMC Yukon XL, 2012 GMC Yukon, 2012 Chevrolet Tahoe, 2012 Chevrolet Suburban, and 2012 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

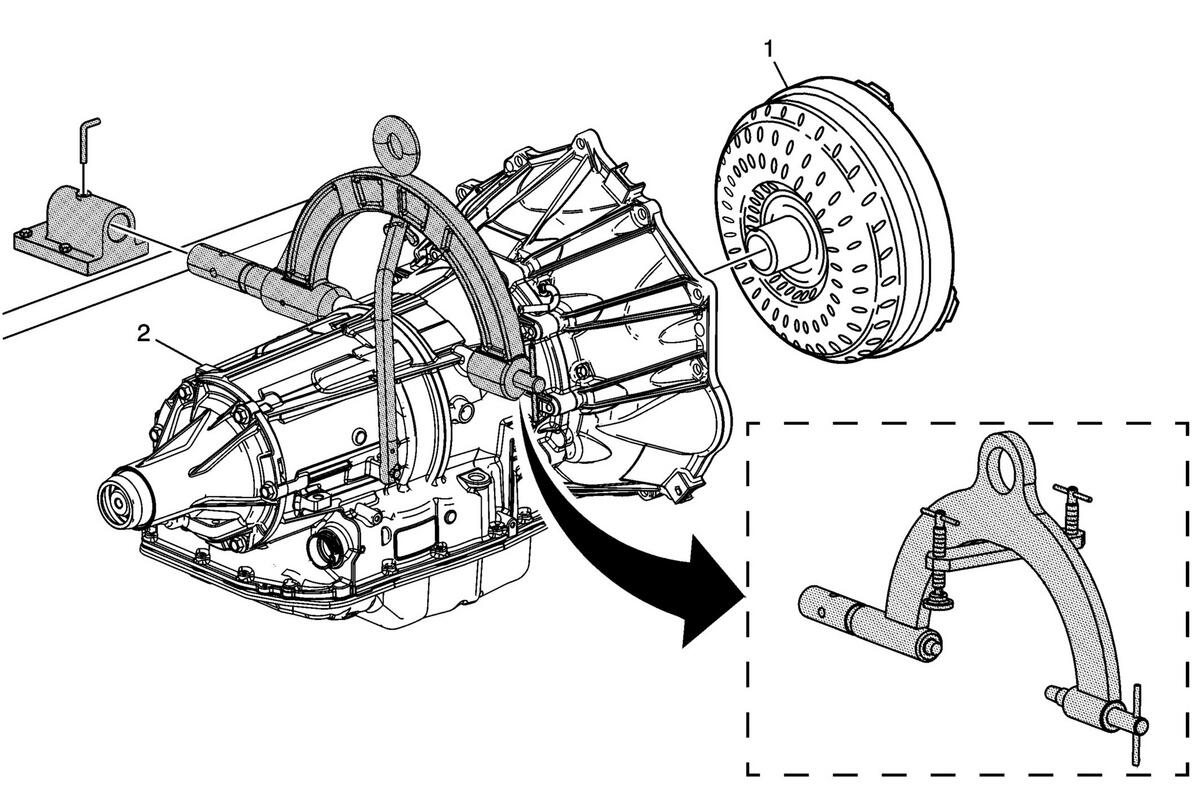

Fig 1: Torque Converter And Holding Fixture Component View

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Torque Converter Assembly
2	Transmission Case Assembly Rotate the transmission so that the converter housing is up and secure with locking pin. Allow any remaining transmission fluid to drain from the case extension. Special Tools DT 47605 Holding Fixture Adapter DT 47605 Holding Fixture J 3289-20 Holding Fixture Base Assembly J 8763-B Holding Fixture For equivalent regional tools, refer to Special Tools .

Callout

Component Name

Torque Converter Assembly

Transmission Case Assembly

Rotate the transmission so that the converter housing is up and secure with locking pin.
Allow any remaining transmission fluid to drain from the case extension.

Special Tools

DT 47605 Holding Fixture Adapter
DT 47605 Holding Fixture
J 3289-20 Holding Fixture Base Assembly
J 8763-B Holding Fixture

For equivalent regional tools, refer to Special Tools .
