Torque Converter Installation and Holding Fixture Removal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 GMC Yukon XL, 2012 GMC Yukon, 2012 Chevrolet Tahoe, 2012 Chevrolet Suburban, and 2012 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

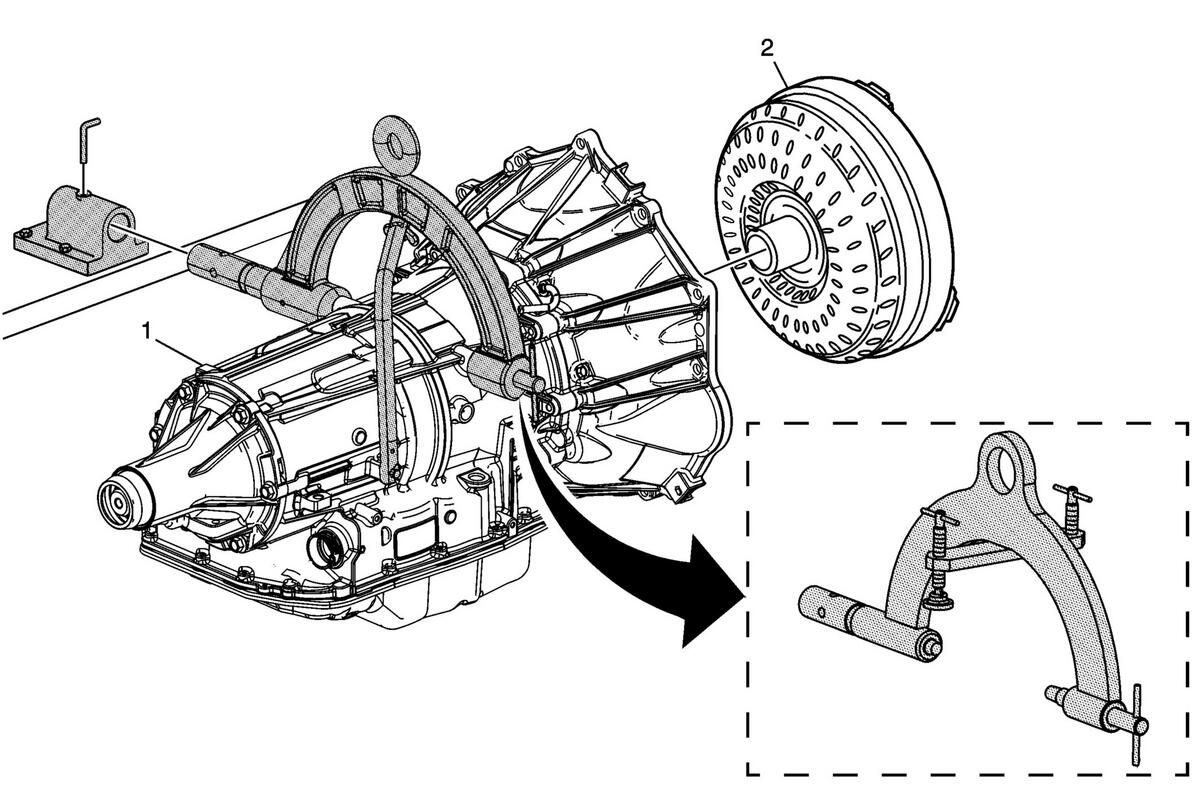

Fig 1: Torque Converter And Holding Fixture Component View

Courtesy of GENERAL MOTORS COMPANY

Callout	Procedure
Preliminary Procedure Rotate the transmission so that the fluid pan assembly is down.
1	Transmission Case Assembly Special Tools DT 47605 Holding Fixture J 3289-20 Holding Fixture Base Assembly J 8763-B Holding Fixture For equivalent regional tools, refer to Special Tools .
2	Torque Converter Assembly

Callout

Procedure

Preliminary Procedure
Rotate the transmission so that the fluid pan assembly is down.

Transmission Case Assembly

Special Tools

DT 47605 Holding Fixture
J 3289-20 Holding Fixture Base Assembly
J 8763-B Holding Fixture

For equivalent regional tools, refer to Special Tools .

Torque Converter Assembly
