Torque Converter Housing with Fluid Pump Installation
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 GMC Yukon XL, 2012 GMC Yukon, 2012 Chevrolet Tahoe, 2012 Chevrolet Suburban, and 2012 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
Torque Converter Housing with Fluid Pump Installation

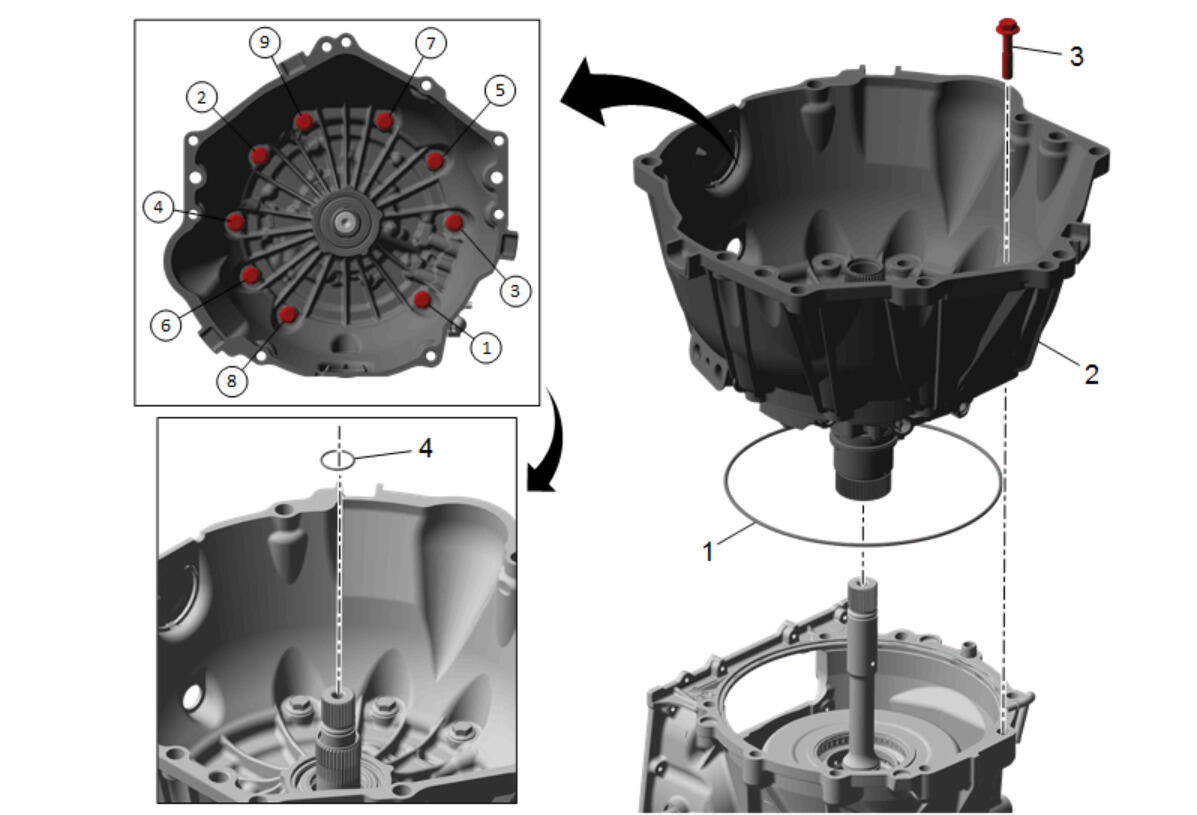

| Callout | Component Name |
|---|---|
| 1 | NEW Fluid Pump Seal |
| 2 | Torque Converter (with Fluid Pump) Housing Assembly
CAUTION:
Ensure the turbine shaft (O-ring) seal is not installed prior to installing the torque converter housing assembly. The seal may become cut or damaged during installation of the torque converter housing assembly. |
| 3 | Bolts M10 x 50 (Qty: 9)
CAUTION:
Refer to Fastener Caution . Procedure Tighten in the sequence shown. Tighten 72 N.m (53 lb ft) |
| 4 | NEW Turbine Shaft (O-Ring) Seal |
