Torque Converter Housing with Fluid Pump Assemble

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 GMC Yukon XL, 2012 GMC Yukon, 2012 Chevrolet Tahoe, 2012 Chevrolet Suburban, and 2012 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

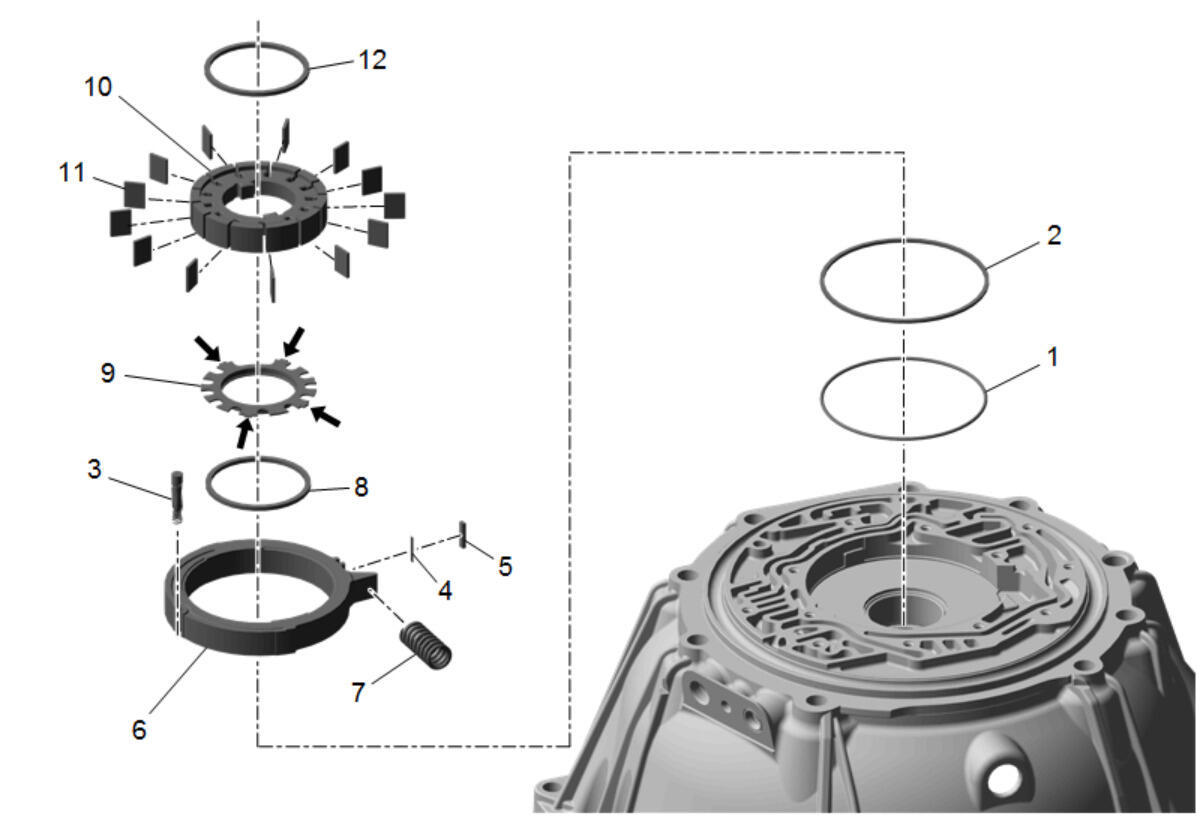

Fig 1: Torque Converter Housing with Fluid Pump Component View

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Fluid Pump Slide Fluid Seal Ring
2	Fluid Pump Slide (O-Ring) Seal
3	Fluid Pump Slide Pivot Pin
4	Fluid Pump Slide Seal Support TIP: The seal support is circular. The seal is rectangular.
5	Slide Seal
6	Fluid Pump Slide TIP: If installing a NEW pump slide into the torque converter housing, ensure to properly select the correct rotor and slide before performing this procedure. Refer to Fluid Pump Selective Measurement , and Fluid Pump Selective Specifications .
7	Fluid Pump Slide Outer Spring
8	Fluid Pump Vane Ring
9	Fluid Pump Rotor Guide CAUTION: Align the rotor guide tabs to the notches on the bottom of the rotor. Failure to do so may cause transmission damage.
10	Fluid Pump Rotor TIP: If installing a NEW pump rotor into the torque converter housing, ensure to properly select the correct rotor and slide before performing this procedure. Refer to Fluid Pump Selective Measurement , and Fluid Pump Selective Specifications .
11	Fluid Pump Vanes (Qty: 13)
12	Fluid Pump Vane Ring
