Torque Converter Fluid Seal Replacement
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 GMC Yukon XL, 2012 GMC Yukon, 2012 Chevrolet Tahoe, 2012 Chevrolet Suburban, and 2012 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
Torque Converter Fluid Seal Replacement

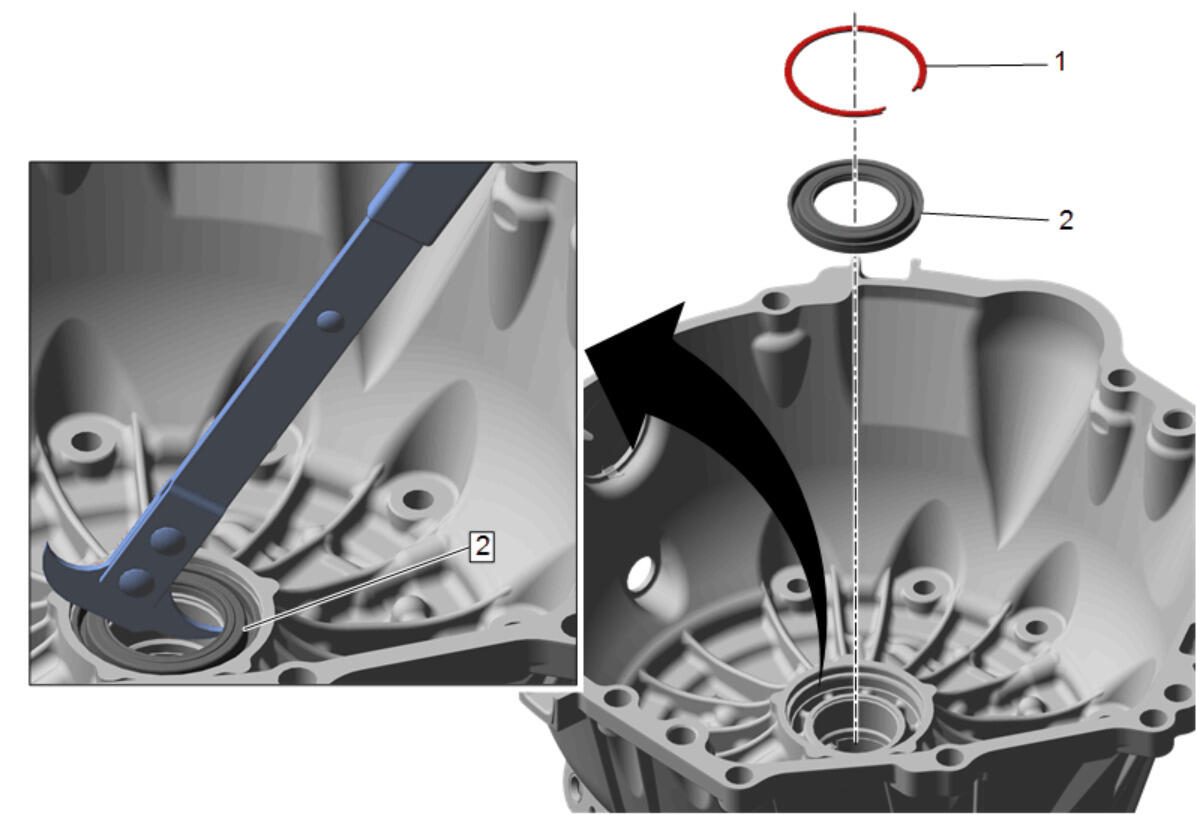

| Callout | Component Name |
|---|---|
| 1 | Torque Converter Fluid Seal Retaining Ring |
| 2 | Torque Converter Fluid Seal Assembly TIP: The seal can be installed by hand. Special Tool EN 45000 Seal Remover For equivalent regional tools, refer to Special Tools . |
