Fluid Pump Cover Installation

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 GMC Yukon XL, 2012 GMC Yukon, 2012 Chevrolet Tahoe, 2012 Chevrolet Suburban, and 2012 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

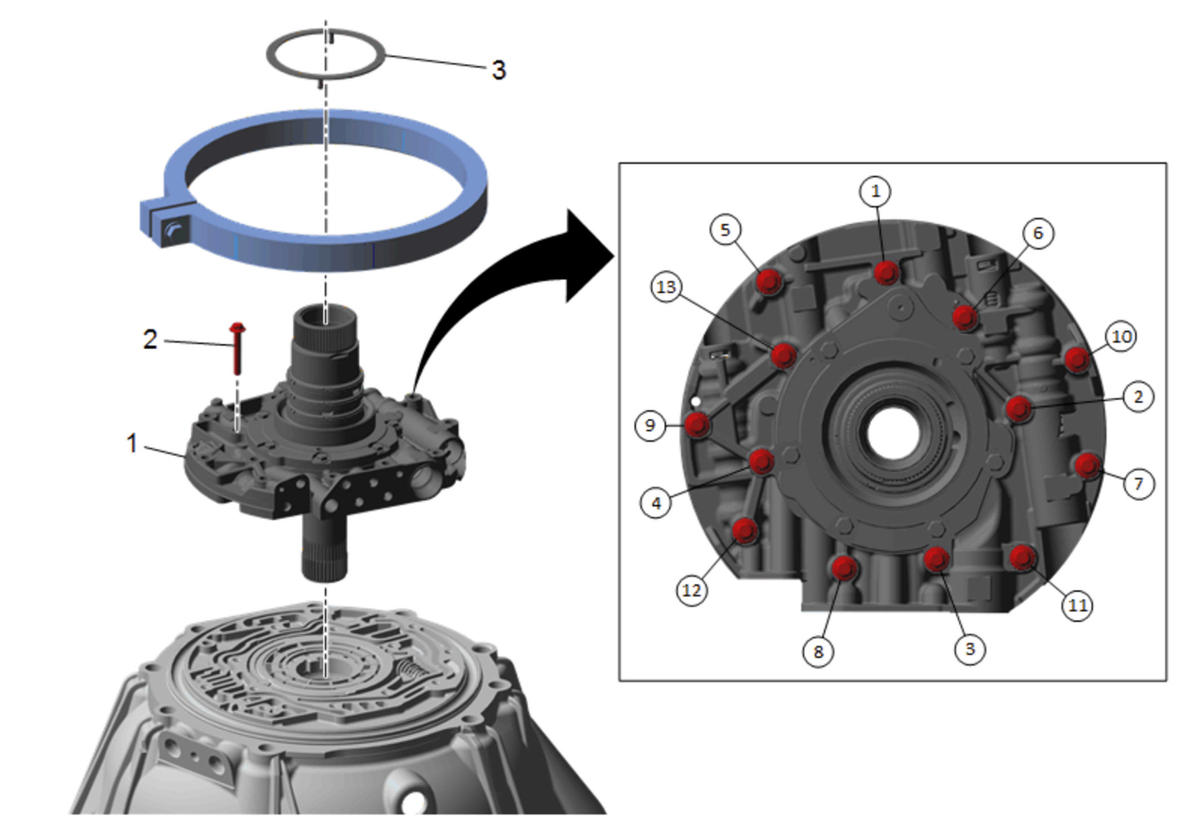

Fig 1: Fluid Pump Cover Component View

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Fluid Pump Cover Assembly
2	Fluid Pump Cover Bolts M6 x 40 (Qty: 13) TIP: Hand tighten only.
3	Alignment Tool and Bolt CAUTION: Refer to Fastener Caution . Procedure Center the DT 46664 pump cover alignment tool around the fluid pump cover assembly in the 9 o'clock position and tighten the alignment bolt. Tighten the fluid pump cover bolts in the sequence shown. Tighten 11 N.m (97 lb in) Special Tools DT 46664 Pump Cover Alignment Tool For equivalent regional tools, refer to Special Tools .
4	NEW 1-2-3-4 and 3-5 Reverse Clutch Housing Thrust Washer
