Manual Shaft Detent Assembly and Manual Shift Shaft Position Switch Removal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 GMC Yukon XL, 2012 GMC Yukon, 2012 Chevrolet Tahoe, 2012 Chevrolet Suburban, and 2012 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

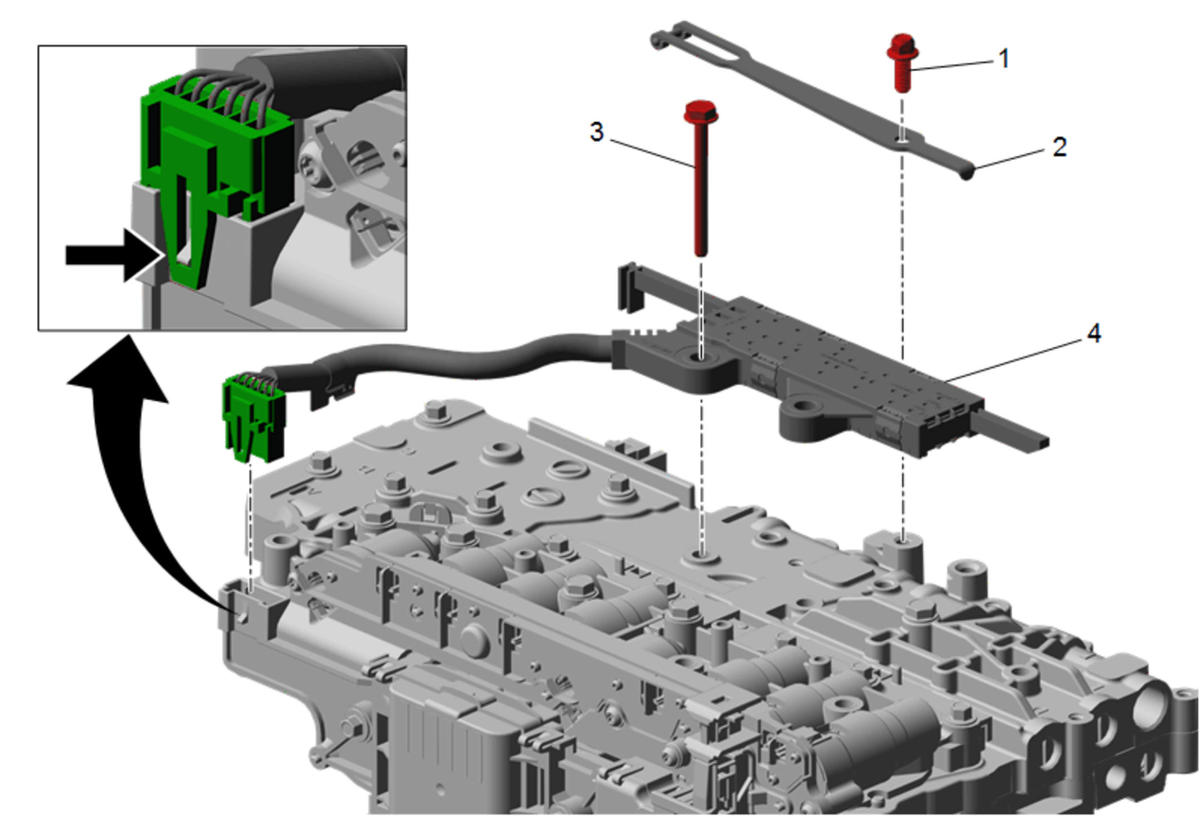

Fig 1: Identifying Manual Shaft Detent Assembly & Manual Shift Shaft Position Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Bolt M6 x 14.5
2	Manual Shaft Detent Assembly
3	Bolt M5 x 55
4	A/Trans Manual Shift Shaft Position Switch Assembly Electrical Connector TIP: Release the connector lock before disconnecting.
5	A/Trans Manual Shift Shaft Position Switch Assembly
