Manual Shift Shaft Position Switch Installation

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 GMC Yukon XL, 2012 GMC Yukon, 2012 Chevrolet Tahoe, 2012 Chevrolet Suburban, and 2012 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

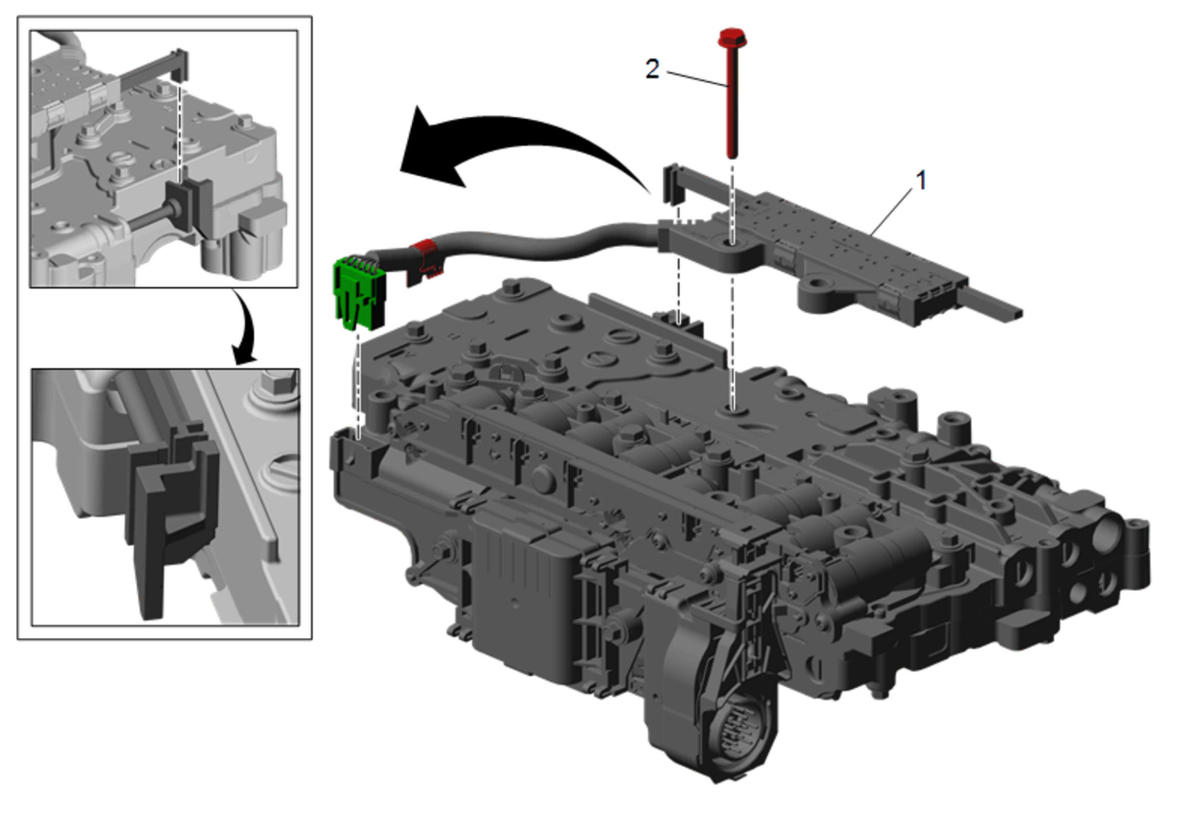

Fig 1: Manual Shift Shaft Position Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	A/Trans Manual Shift Shaft Position Switch Assembly
2	Manual Valve Link NOTE: Align the switch activator slide with the manual valve link.
3	Bolt M5 x 55 NOTE: Hand tighten only.
4	A/Trans Manual Shift Shaft Position Switch Harness Clip NOTE: The wiring harness clip on the manual shift shaft position switch does not need to be replaced if damaged or missing. The clip functions only as a manufacturing assembly aid to keep the harness clear during an automated bolt installation process. If the clip is damaged, simply remove and discard.
5	A/Trans Manual Shift Shaft Position Switch Electrical Connector NOTE: Connect and lock the manual shift shaft position switch electrical connector to the control solenoid valve assembly.
