Case Extension Assembly Installation
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 GMC Yukon XL, 2012 GMC Yukon, 2012 Chevrolet Tahoe, 2012 Chevrolet Suburban, and 2012 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
Case Extension Assembly Installation

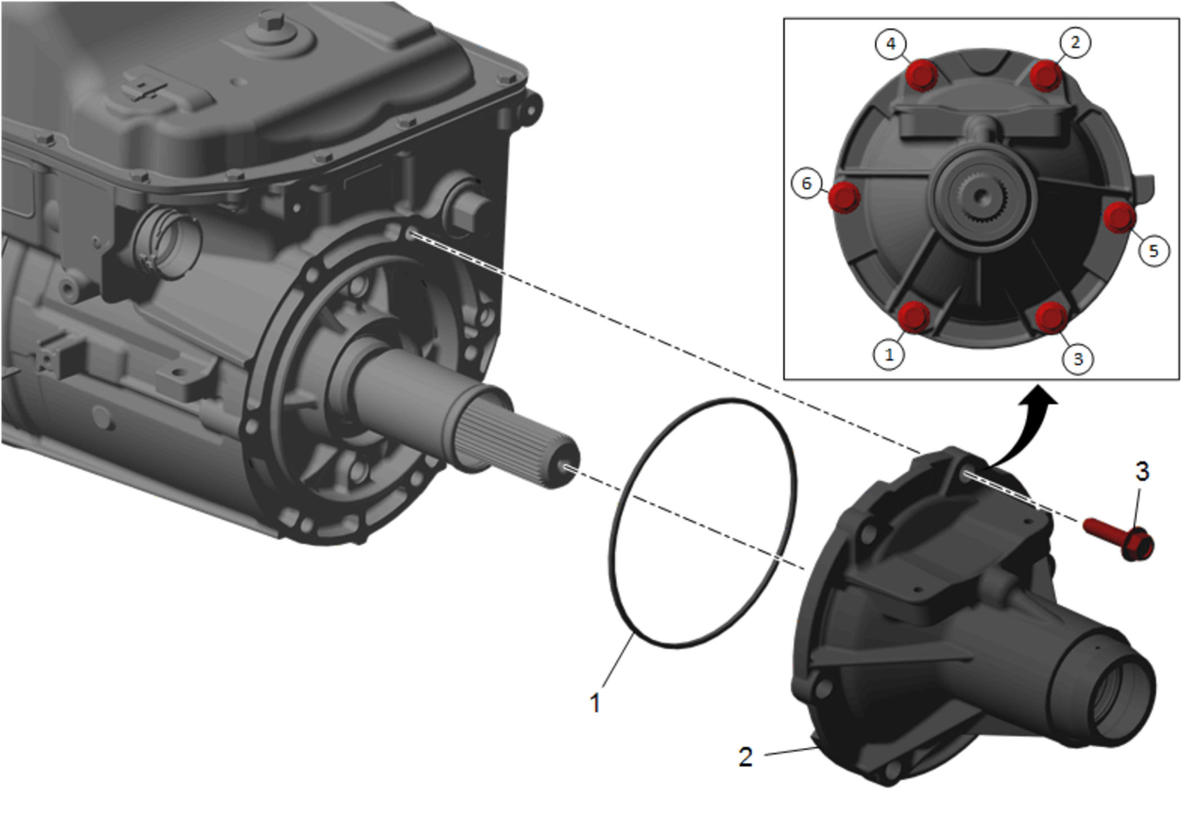

| Callout | Component Name |
|---|---|
| 1 | NEW Case Extension Seal |
| 2 | Case Extension |
| 3 | Bolts M10 x 40 (Qty: 6)
CAUTION:
Refer to Fastener Caution . Procedure Tighten in sequence shown. Tighten 55 N.m (41 lb ft) |
