Stabilizer Shaft Link Replacement

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 GMC Yukon XL, 2012 GMC Yukon, 2012 Chevrolet Tahoe, 2012 Chevrolet Suburban, and 2012 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

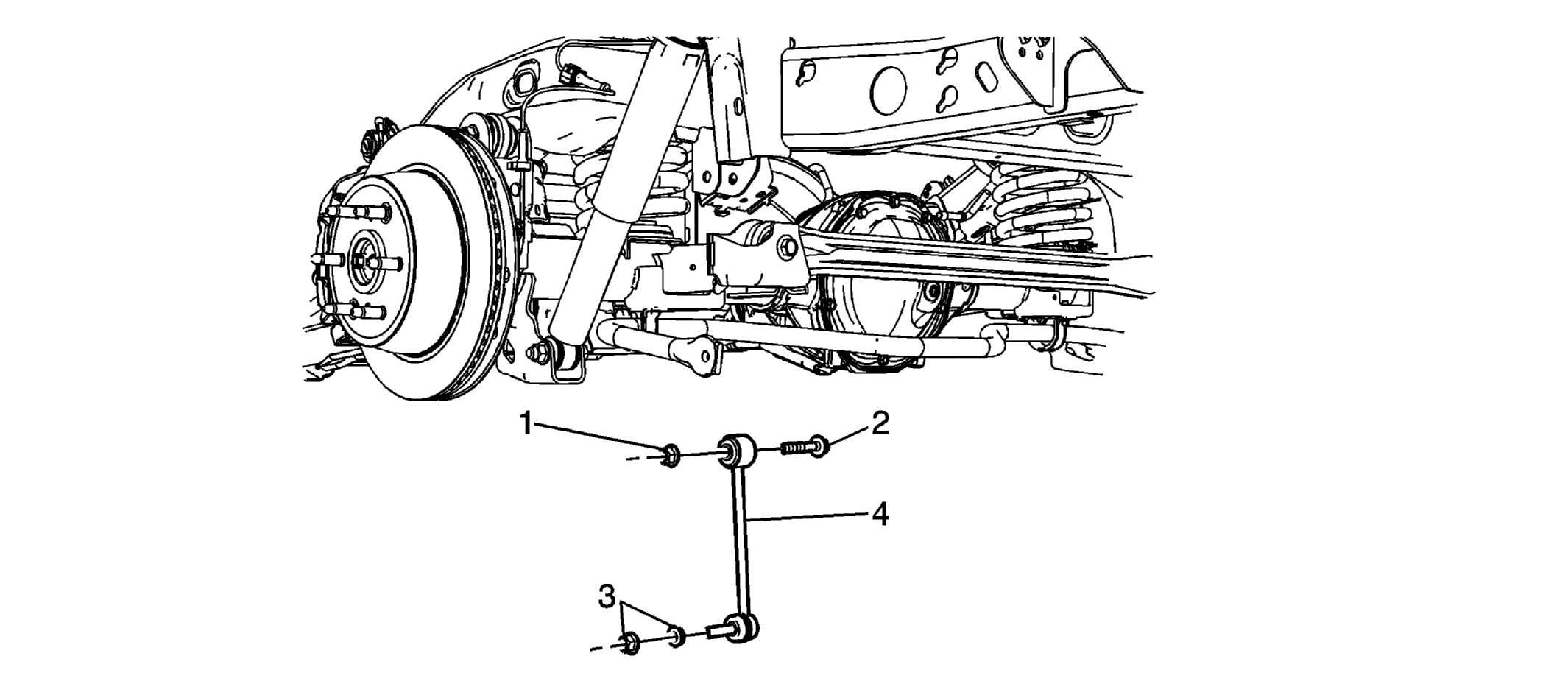

Fig 1: View Of Stabilizer Shaft Link
GM1871116Courtesy of GENERAL MOTORS COMPANY
Stabilizer Shaft Link Replacement

Callout Component Name
Preliminary Procedure
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
1 Rear Upper Stabilizer Shaft Link Nut
CAUTION:

Refer to Fastener Caution .


Tighten
65 N.m (48 lb ft) plus 40 degrees
2 Rear Upper Stabilizer Shaft Link Bolt
3 Rear Lower Stabilizer Shaft Nut (Qty: 2)

Procedure

  1. Use an Allen wrench to keep the lower stabilizer shaft ball stud from rotating while removing the outer nut.
  2. When installing the inner stabilizer shaft link nut, ensure that it is tighten securely against the ball joint.

Tighten
65 N.m (48 lb ft) plus 40 degrees
4 Rear Stabilizer Shaft
