Stabilizer Shaft Insulator Replacement

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 GMC Yukon XL, 2012 GMC Yukon, 2012 Chevrolet Tahoe, 2012 Chevrolet Suburban, and 2012 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

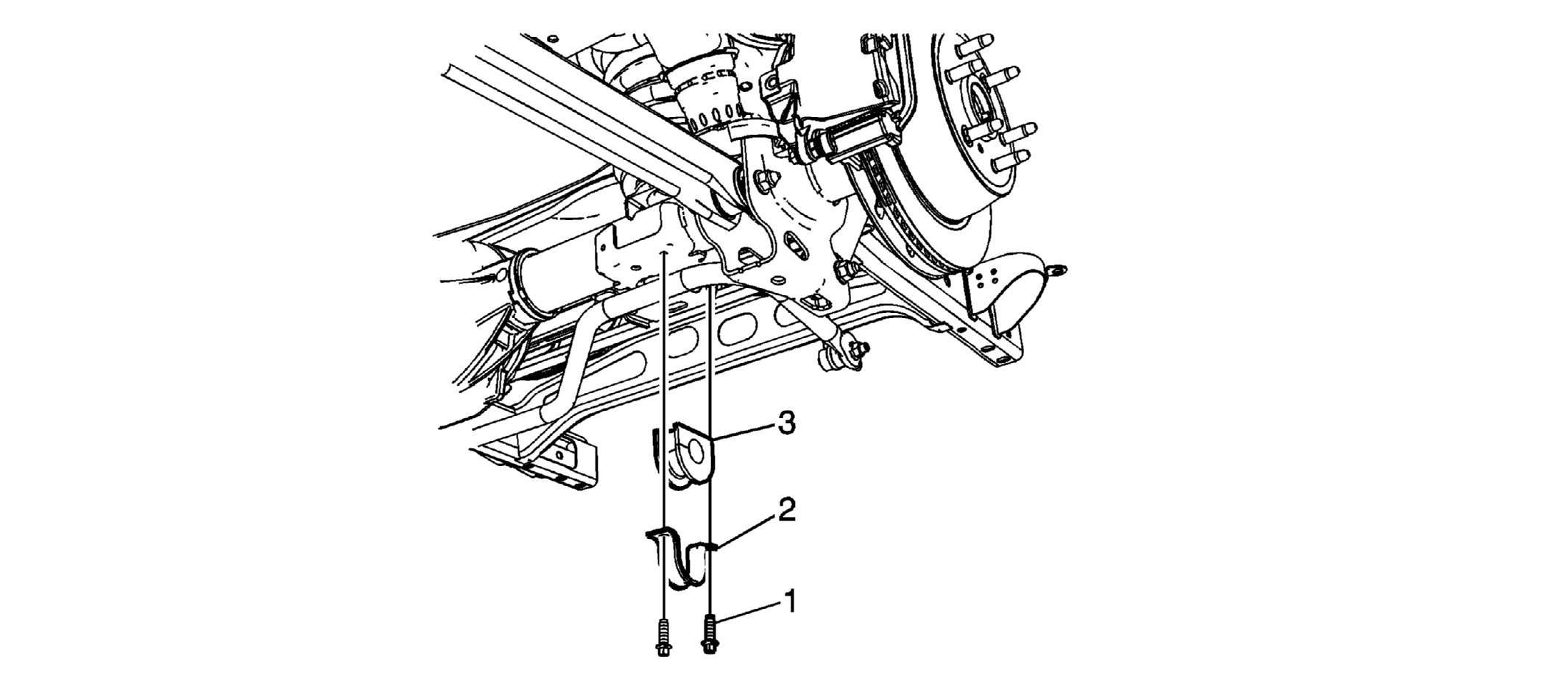

Fig 1: View Of Stabilizer Shaft Insulator

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Rear Stabilizer Shaft Insulator Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 32 N.m (24 lb ft)
2	Rear Stabilizer Shaft Insulator Clamp
3	Rear Stabilizer Shaft Insulator TIP: Ensure that the slit in the insulator is facing the front of the vehicle.
