Installation Procedure
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 GMC Yukon XL, 2012 GMC Yukon, 2012 Chevrolet Tahoe, 2012 Chevrolet Suburban, and 2012 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

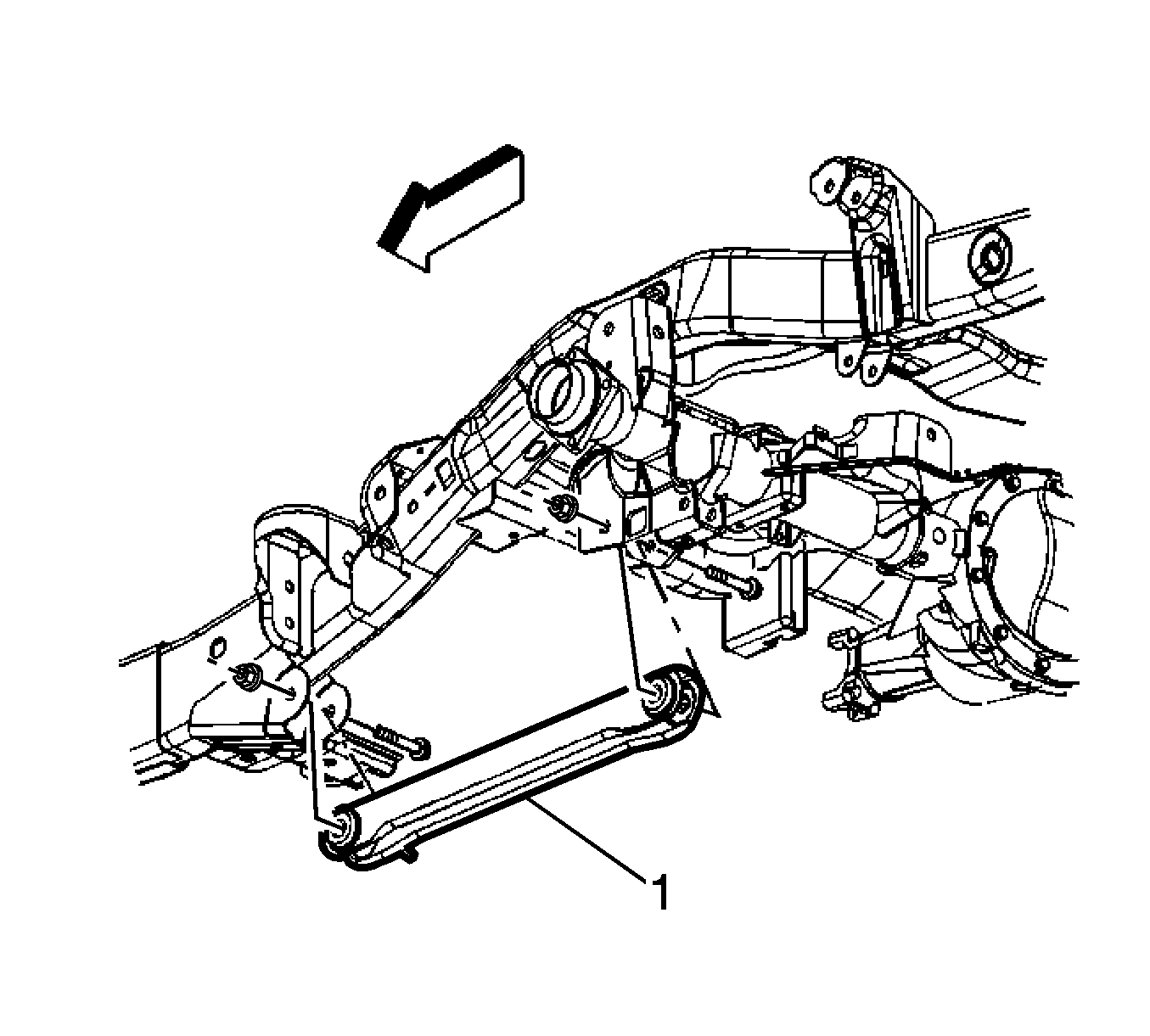

- Install the lower control arm (1).
- Install the lower control arm retaining bolts.
- Install the lower control arm retaining nut and tighten:
- First Pass: 100 N.m (74 lb ft).
- Final Pass: plus 55 degrees.
- Remove the rear axle support.
- Lower the vehicle.
CAUTION:
Refer to Fastener Caution .
NOTE:
Do not tighten the bolts unless the suspension is at the ride height.
