Vehicle Speed Sensor Replacement

WARNING: This page is about a different car, the 2012 GMC Yukon XL, 2012 GMC Yukon, 2012 Chevrolet Tahoe, and 2012 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

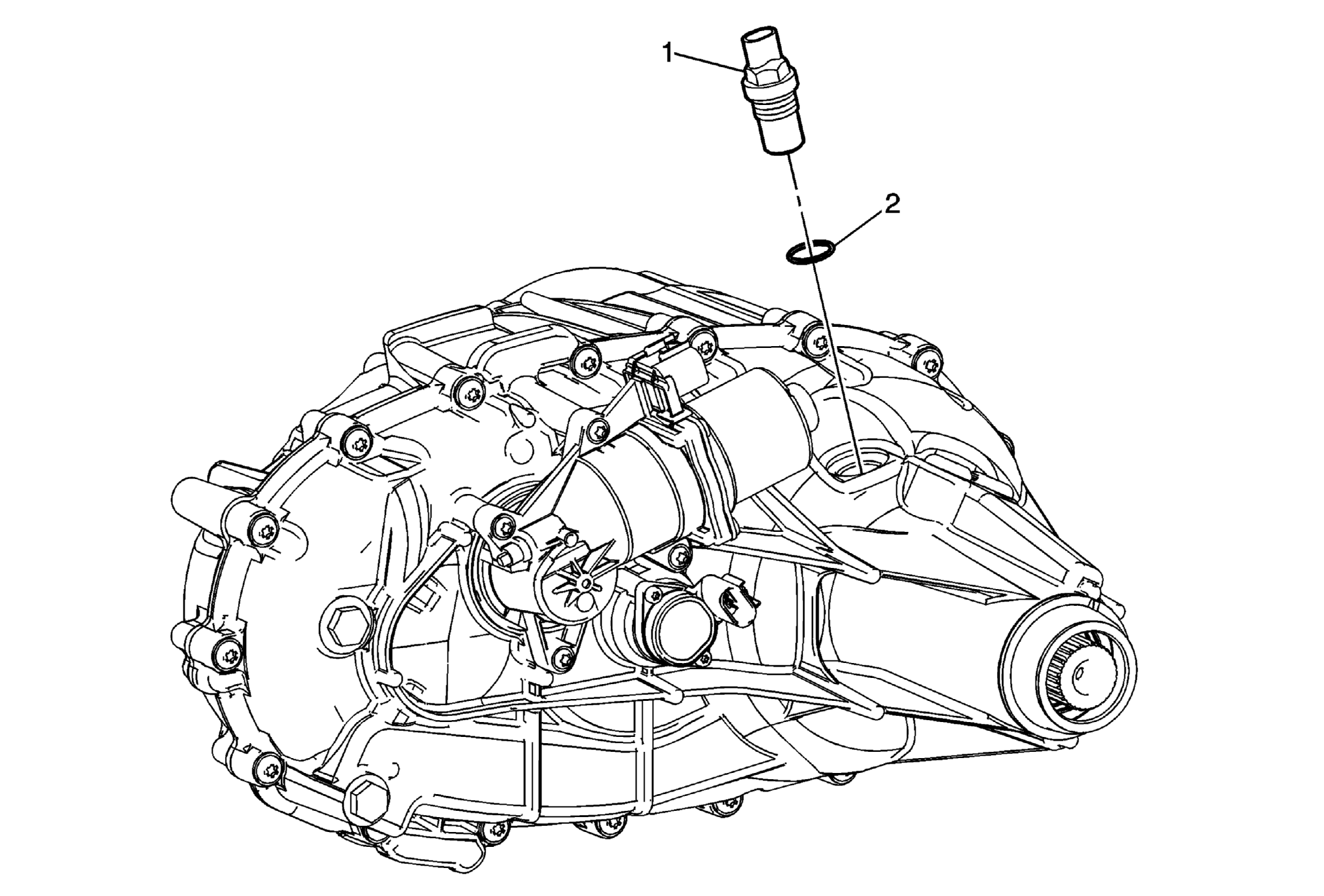

Fig 1: Vehicle Speed Sensor Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the transfer case shield, if equipped. Refer to Transfer Case Shield Replacement .
1	Vehicle Speed Sensor CAUTION: Refer to Fastener Caution . Procedure Disconnect vehicle speed sensor electrical connector. Tighten 17 N.m (13 lb ft)
2	Vehicle Speed Sensor O-ring Procedure Lightly lubricate the O-ring with clean DEXRON® VI.

Callout

Component Name

Preliminary Procedures

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the transfer case shield, if equipped. Refer to Transfer Case Shield Replacement .

Vehicle Speed Sensor

CAUTION:

Refer to Fastener Caution .

Procedure
Disconnect vehicle speed sensor electrical connector.
Tighten
17 N.m (13 lb ft)

Vehicle Speed Sensor O-ring
Procedure
Lightly lubricate the O-ring with clean DEXRON® VI.
