Installation Procedure

WARNING: This page is about a different car, the 2012 GMC Yukon XL, 2012 GMC Yukon, 2012 Chevrolet Tahoe, and 2012 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

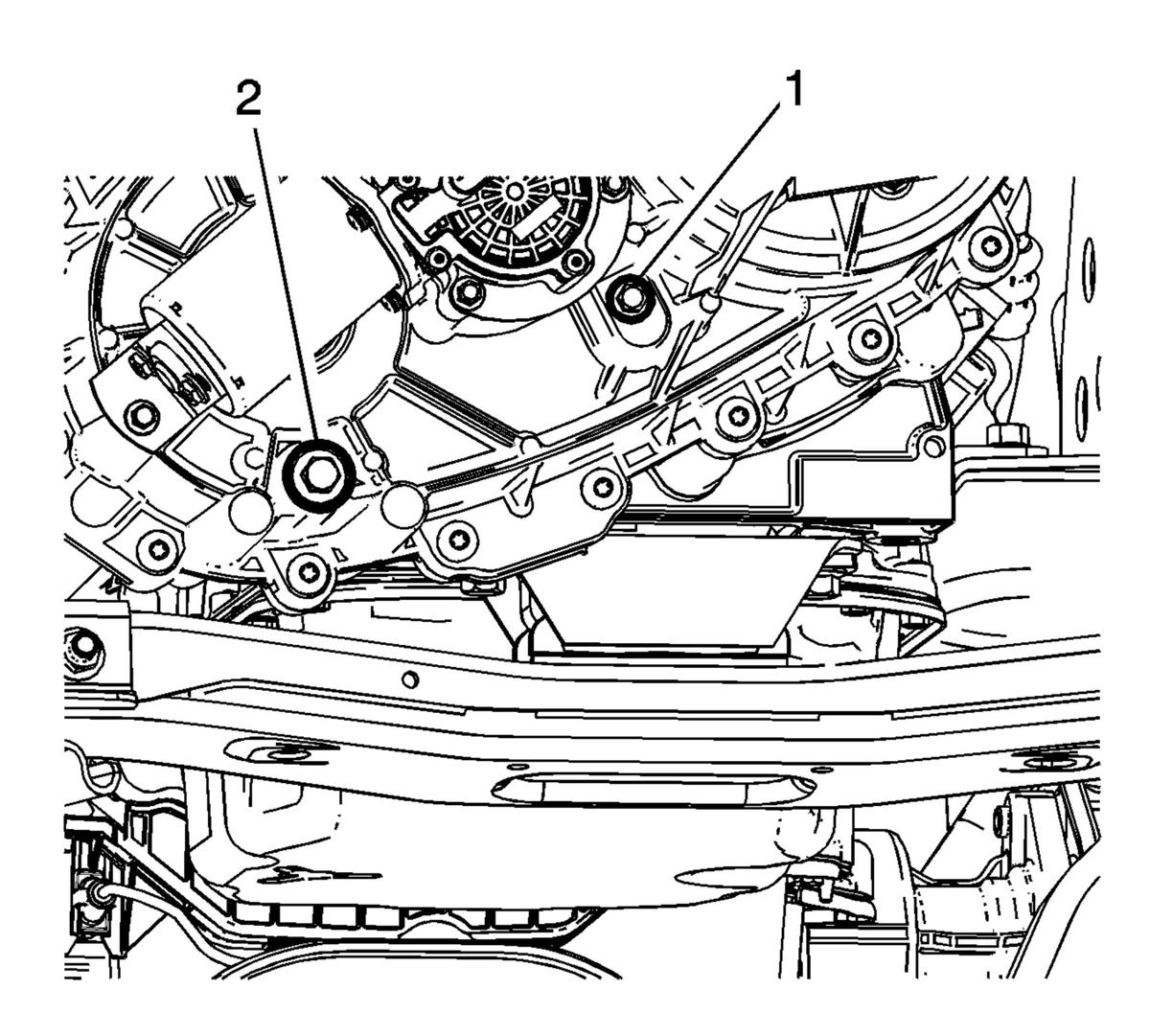

    Fig 1: Transmission Fluid Drain And Fill Plugs
    GM2622584Courtesy of GENERAL MOTORS COMPANY
  1. Install the fill plug (1).
  2. Lower the vehicle.
