Removal Procedure

WARNING: This page is about a different car, the 2007 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION: Refer to Battery Disconnect Caution .
  1. Disconnect the negative battery cable.
    2. Fig 1: Locating I/P Insulator Retaining Bolts
    GM787371Courtesy of GENERAL MOTORS CORP.
  2. Remove the passenger insulator. Refer to Instrument Panel Insulator Replacement .
  3. Disconnect the brake release lever from the instrument panel (I/P).
    4. Fig 2: View Of Data Link Connector Retaining Bolts/Screws
    GM386625Courtesy of GENERAL MOTORS CORP.
  4. Remove the screws from the data link connector.
  5. Remove the data link connector from the I/P.
    6. Fig 3: I/P Center Console
    GM816362Courtesy of GENERAL MOTORS CORP.
  6. Remove the I/P center console. Refer to Console Replacement .

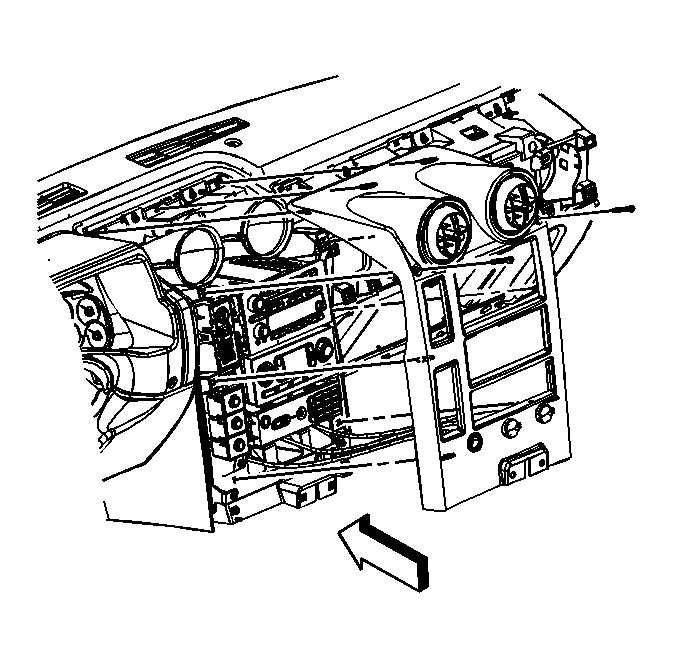

    7. Fig 4: I/P Center Trim Panel
    GM832824Courtesy of GENERAL MOTORS CORP.
  7. Remove the I/P center trim panel. Refer to Instrument Panel Center Trim Panel Replacement .
    8. Fig 5: Left & Right I/P Side Trim
    GM816365Courtesy of GENERAL MOTORS CORP.
  8. Remove the left and right I/P side trim.
    9. Fig 6: I/P Assist Handle
    GM816332Courtesy of GENERAL MOTORS CORP.
  9. Remove the assist handle. Refer to Instrument Panel Assist Handle Replacement .

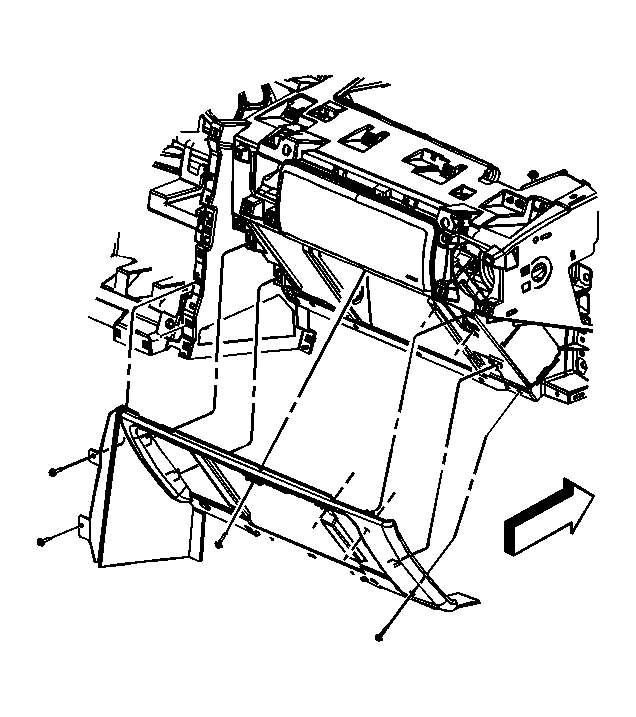

    10. Fig 7: I/P Compartment
    GM832822Courtesy of GENERAL MOTORS CORP.
  10. Remove the I/P compartment. Refer to Instrument Panel Compartment Replacement .
    11. Fig 8: Driver Knee Bolster
    GM816351Courtesy of GENERAL MOTORS CORP.
  11. Remove the drivers knee bolster. Refer to Driver Knee Bolster Panel Replacement .
    12. Fig 9: I/P Accessory Left Trim Panel
    GM816356Courtesy of GENERAL MOTORS CORP.
  12. Remove the left accessory trim plate. Refer to Instrument Panel Accessory Trim Plate Replacement - Left Side .
    13. Fig 10: I/P Accessory Right Trim Panel
    GM816334Courtesy of GENERAL MOTORS CORP.
  13. Remove the right accessory trim panel. Refer to Instrument Panel Accessory Trim Plate Replacement - Right Side .
    14. Fig 11: I/P Air Bag Module
    GM815846Courtesy of GENERAL MOTORS CORP.
  14. Remove the I/P air bag module. Refer to Inflatable Restraint Instrument Panel Module Replacement .
  15. Remove the steering column. Refer to Steering Column Replacement .
    16. Fig 12: I/P Cluster Trim Panel
    GM816354Courtesy of GENERAL MOTORS CORP.
  16. Remove the I/P cluster. Refer to Instrument Cluster Replacement .
    17. Fig 13: Upper Trim Pad
    GM816340Courtesy of GENERAL MOTORS CORP.
  17. Remove the I/P upper trim pad. Refer to Instrument Panel Upper Trim Pad Replacement .

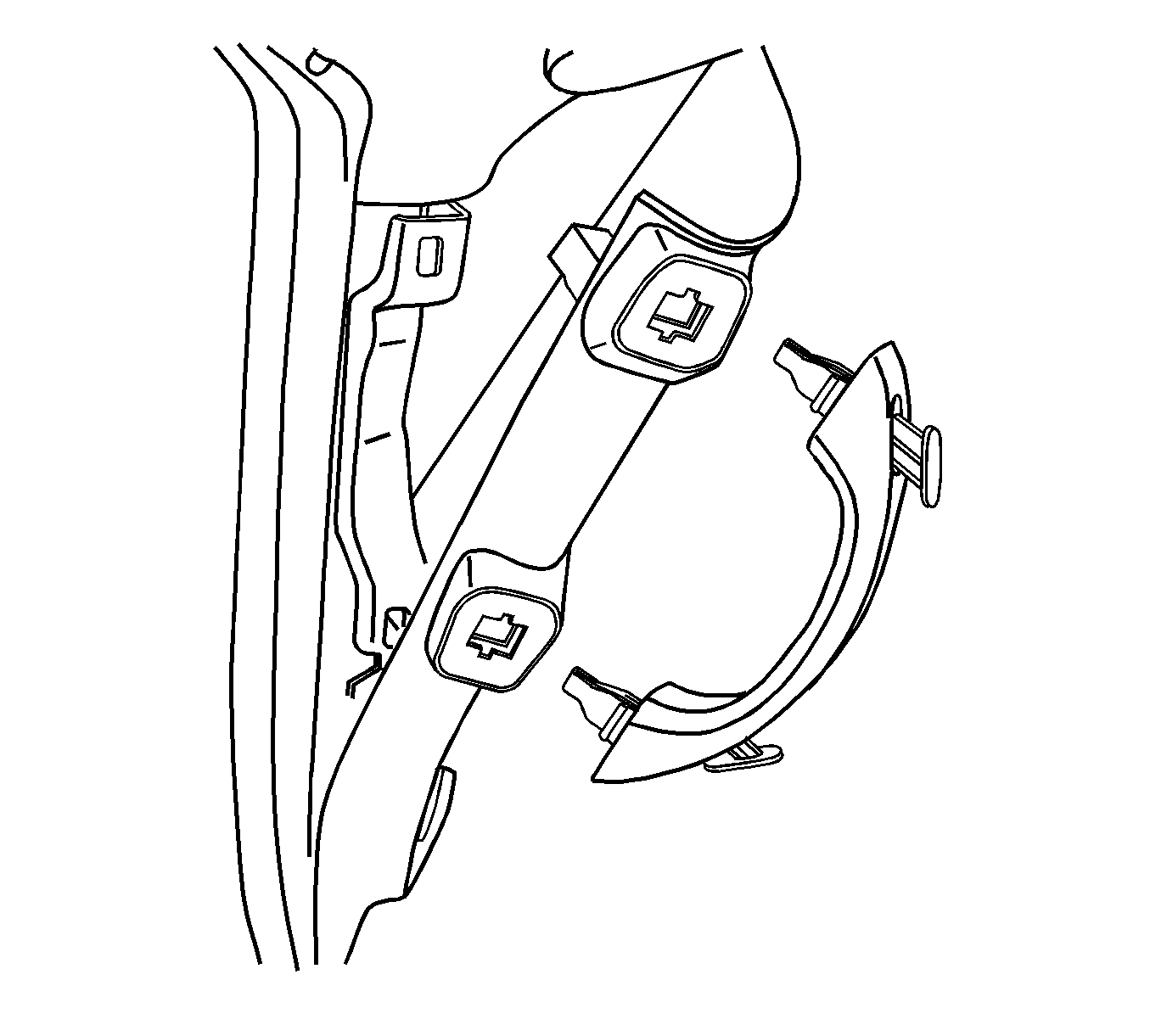

    18. Fig 14: Front Assist Handle
    GM922456Courtesy of GENERAL MOTORS CORP.
  18. Remove both windshield garnish moldings. Refer to Windshield Pillar Garnish Molding Replacement .
    19. Fig 15: Identifying Radio
    GM815852Courtesy of GENERAL MOTORS CORP.
  19. Remove the radio from center stack. Refer to Radio Replacement .
    20. Fig 16: HVAC Control
    GM815858Courtesy of GENERAL MOTORS CORP.
  20. Remove the HVAC control. Refer to HVAC Control Module Replacement for the automatic system.
    21. Fig 17: Communication Interface Module & I/P
    GM815865Courtesy of GENERAL MOTORS CORP.
  21. Remove the OnStar® module from center stack. Refer to OnStar Button Assembly Replacement .
    22. Fig 18: Traction Control & Air Ride Switch Module Assembly
    GM815914Courtesy of GENERAL MOTORS CORP.
  22. Remove the traction control, air ride switch module assembly.
    23. Fig 19: Transfer Case Control Switch Module
    GM815899Courtesy of GENERAL MOTORS CORP.
  23. Remove the transfer case control switch module. Refer to Transfer Case Shift Control Module Replacement for the BW 4484 transfer case.
    24. Fig 20: Rear Wiper Switch
    GM815902Courtesy of GENERAL MOTORS CORP.
  24. Remove the rear wiper switch. Refer to Rear Window Wiper and Washer Switch Replacement .
    25. Fig 21: Headlamp Switch
    GM815903Courtesy of GENERAL MOTORS CORP.
  25. Remove headlamp switch. Refer to Headlamp Switch Replacement .
  26. Remove the upper HVAC air temperature sensors from the HVAC ducts. Refer to Air Temperature Sensor Replacement - Upper Right Side and Air Temperature Sensor Replacement - Upper Left Side for the automatic system.
  27. Remove the lower HVAC air temperature sensors from the HVAC ducts. Refer to Air Temperature Sensor Replacement - Lower Left Side and Air Temperature Sensor Replacement - Lower Right Side for the automatic system.

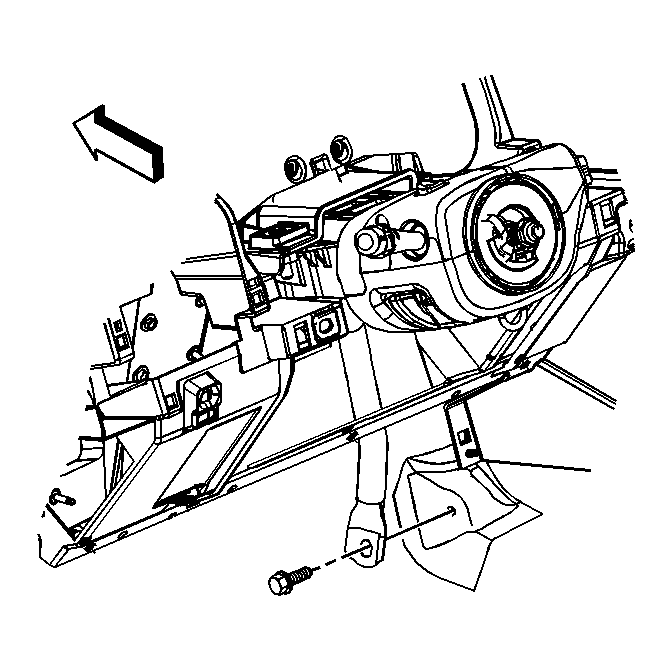

    28. Fig 22: I/P Carrier Center Support Bracket Nut
    GM832818Courtesy of GENERAL MOTORS CORP.
  28. Remove the nut from the I/P carrier center support.
  29. Remove the upper I/P carrier bolts.
  30. Remove the drivers and passenger side I/P carrier bolts.
  31. Disconnect the electrical connections from the body control module (BCM) to the body harness.
  32. Remove the wiring harnesses through the openings in the I/P retainer.
  33. Remove the I/P assembly from the vehicle.
