Removal Procedure

WARNING: This page is about a different car, the 2007 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen and move reward center console for access to knee bolster bolt. Refer to Console Replacement .
  2. Remove the instrument panel cluster (IPC) trim. Seeinstrument panel cluster (IPC) trim .

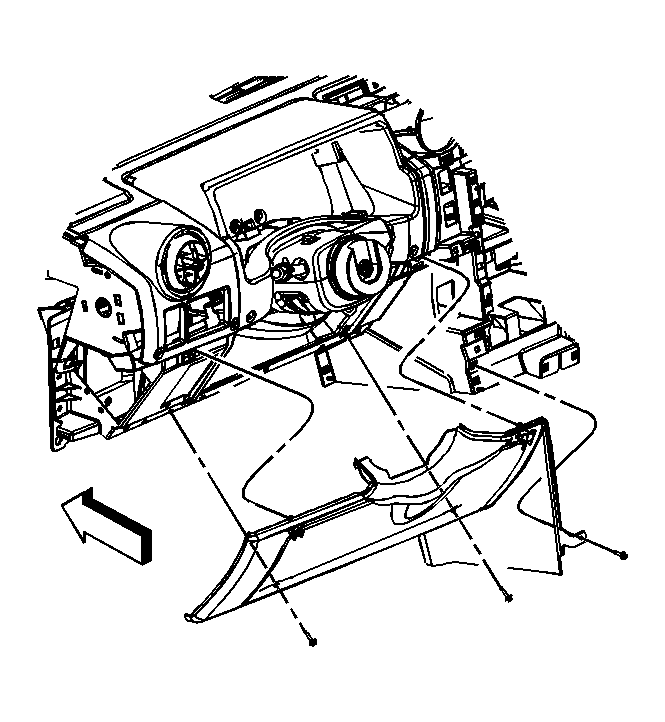

    3. Fig 1: Knee Bolster Trim Panel
    GM832830Courtesy of GENERAL MOTORS CORP.
  3. Remove the screws/bolts that hold knee bolster trim panel to I/P.
  4. Remove the knee bolster trim.
