Driver Seat Schematics

WARNING: This page is about a different car, the 2007 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

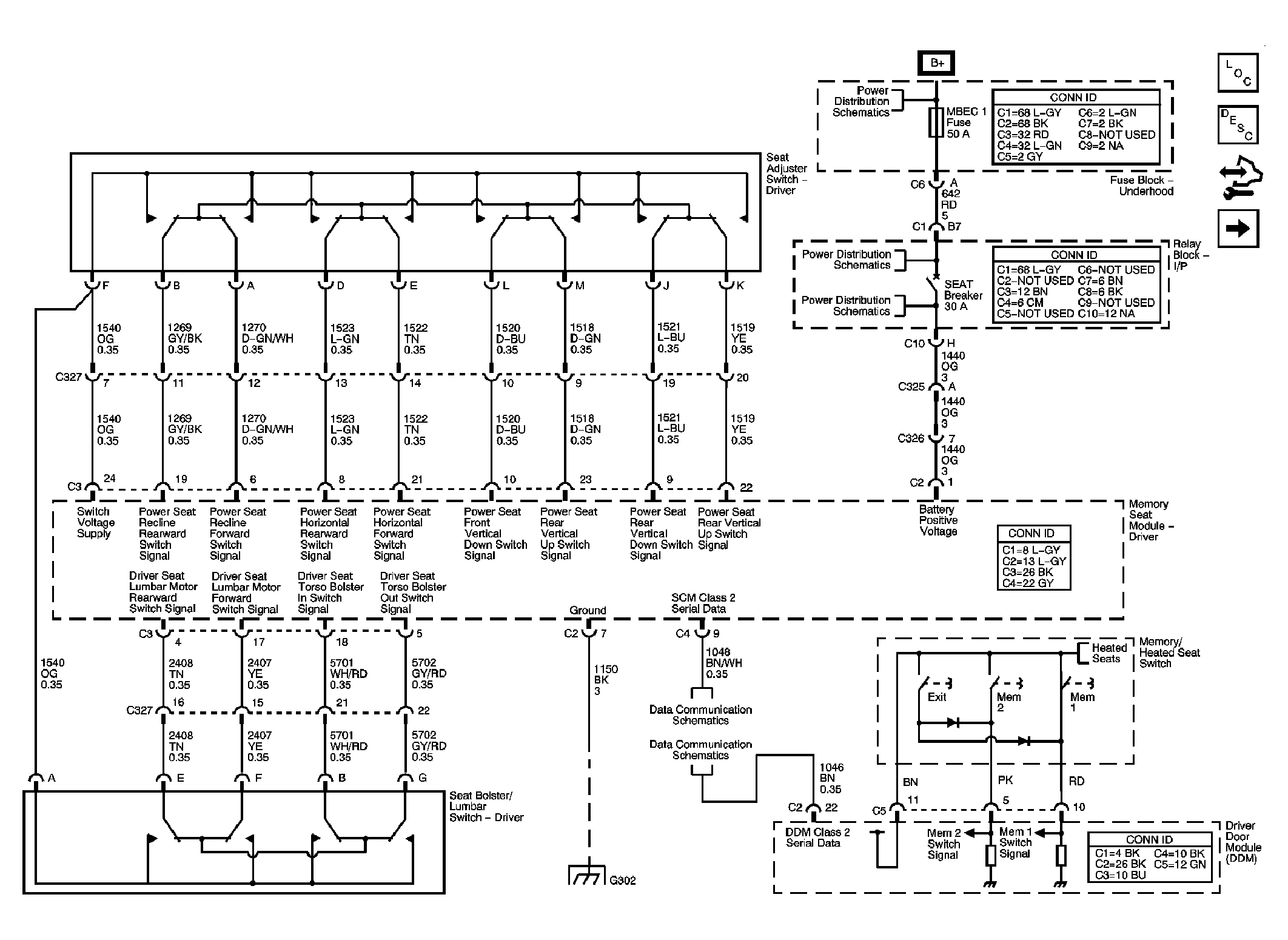

Fig 1: Memory Control Schematic
GM1807721Courtesy of GENERAL MOTORS CORP.

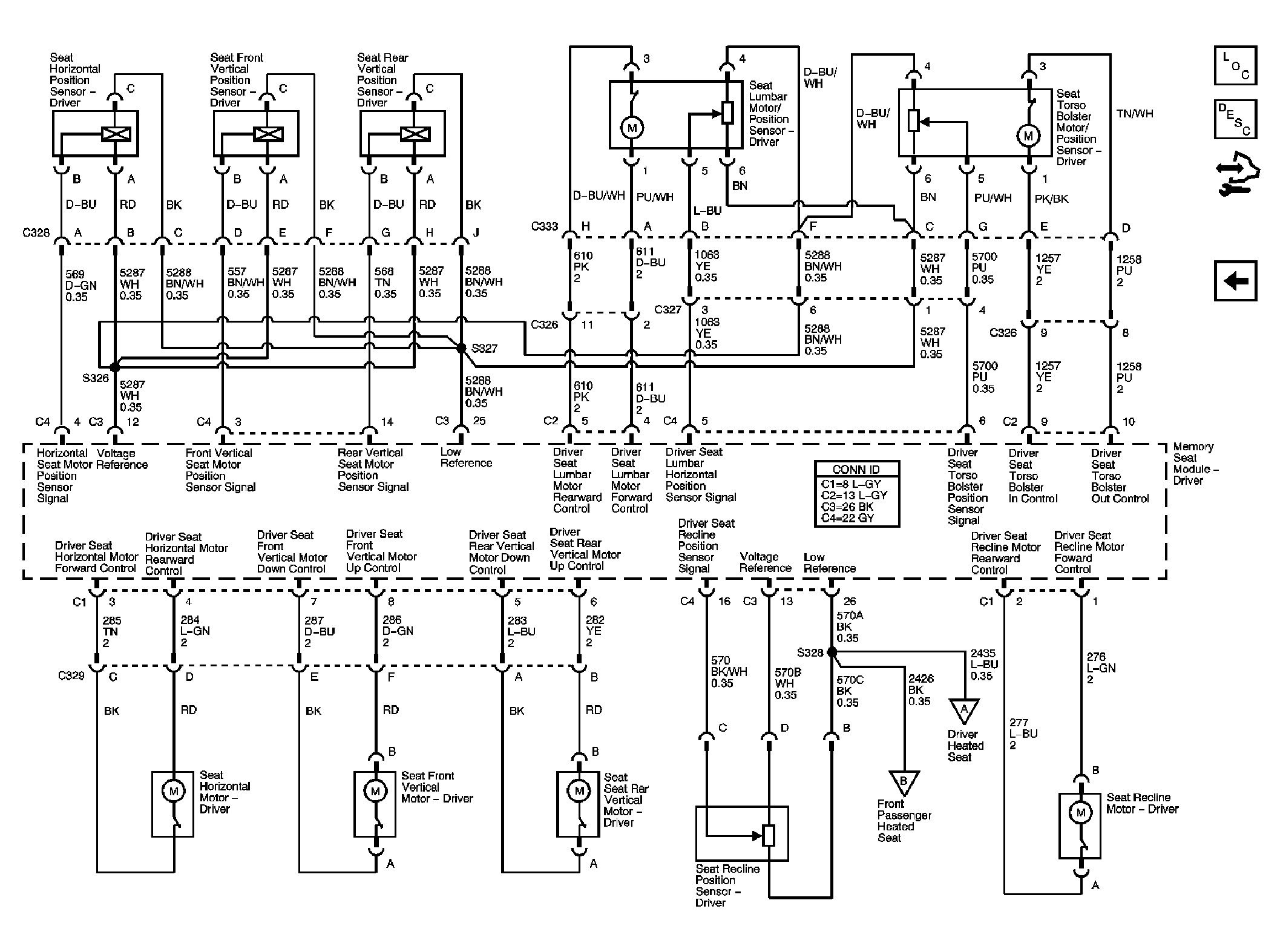

Fig 2: Position Sensor and Motor Schematic
GM1807723Courtesy of GENERAL MOTORS CORP.
