Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 GMC Yukon XL, 2012 GMC Yukon, 2012 Chevrolet Tahoe, 2012 Chevrolet Suburban, and 2012 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

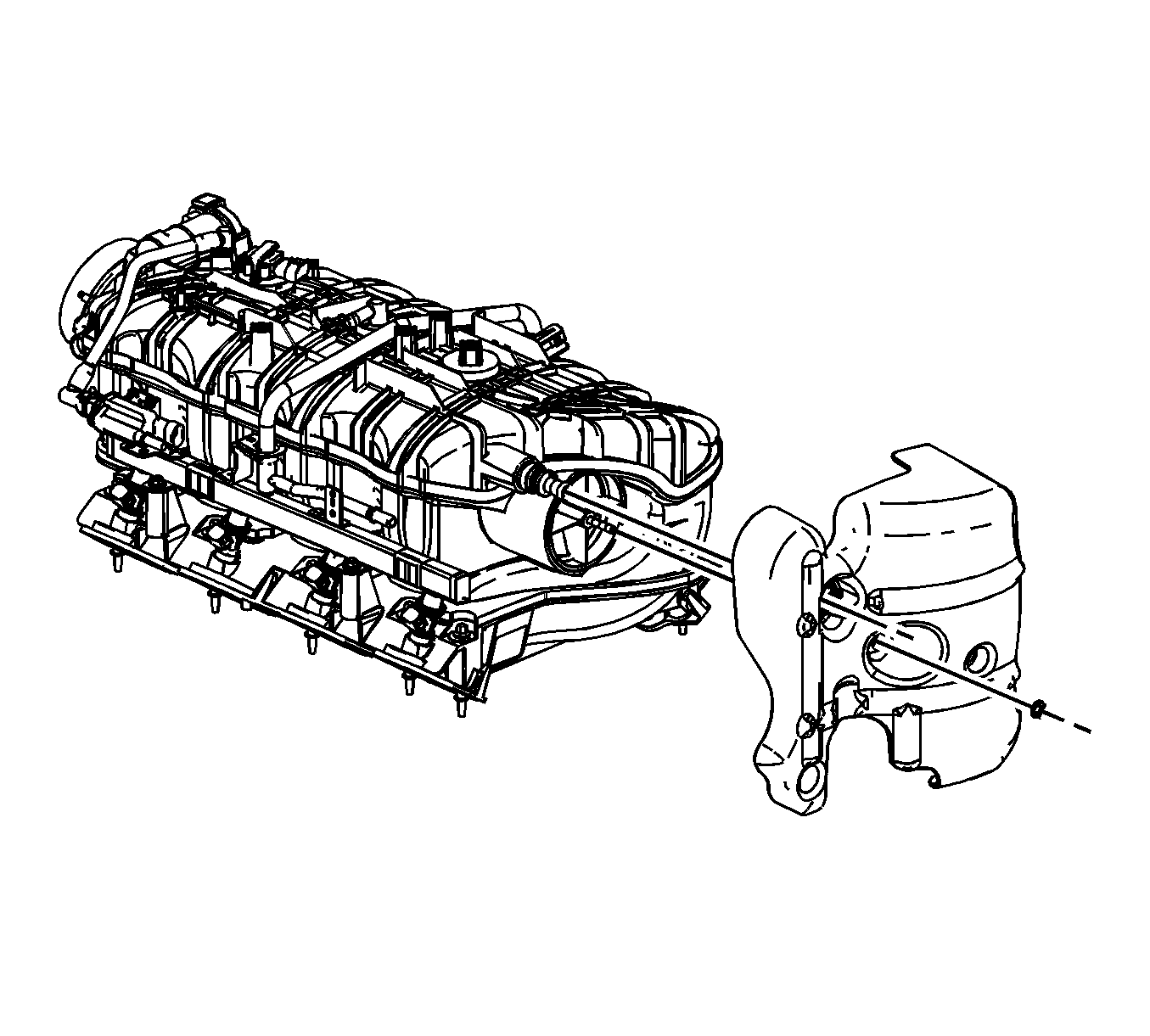

    Fig 1: View Of Upper Intake Manifold Cover & Nut
    GM1697057Courtesy of GENERAL MOTORS COMPANY
  1. Install the upper intake manifold cover.
  2. Install the upper intake manifold cover nut until snug

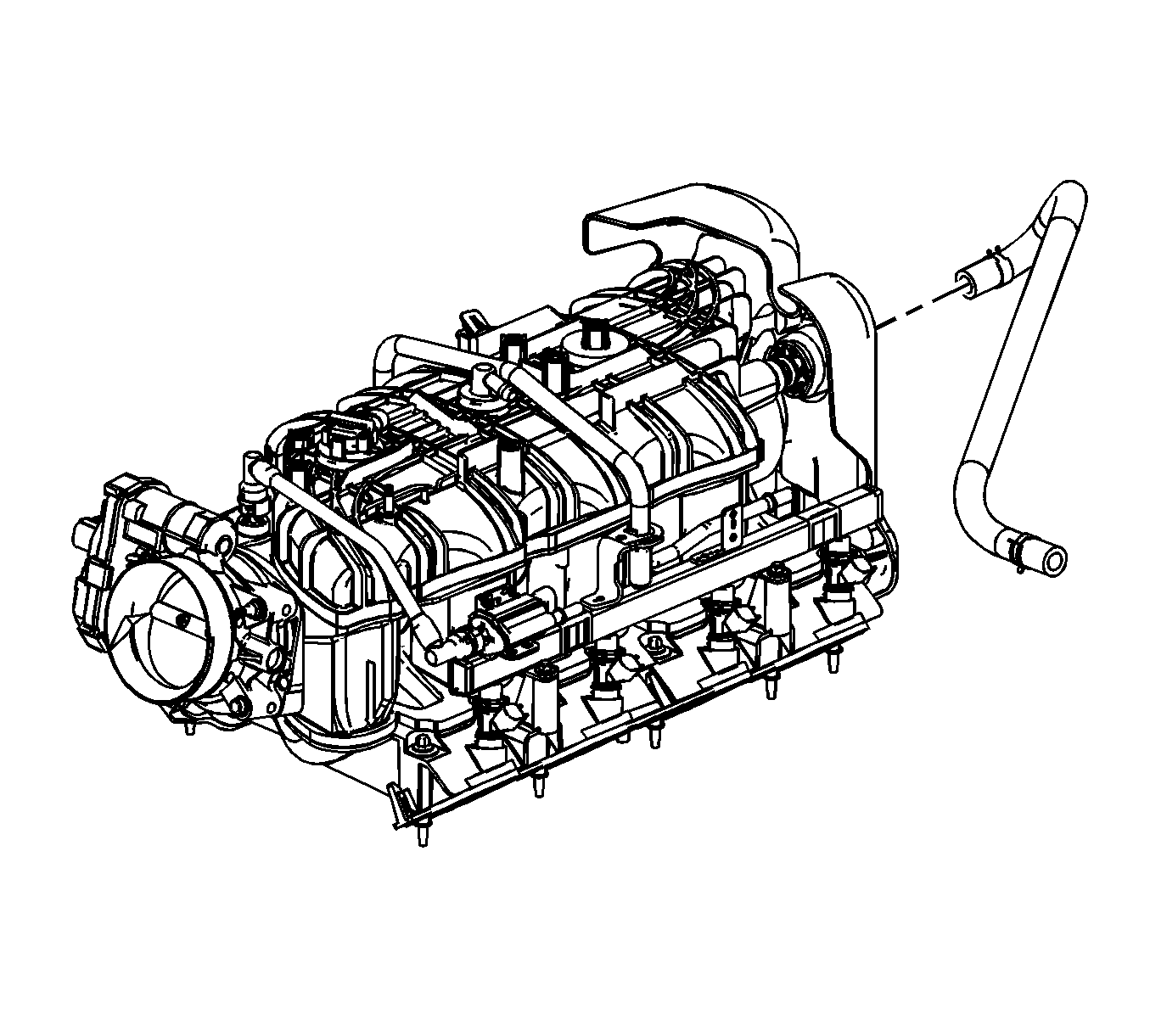

    3. Fig 2: View Of Vacuum Brake Booster Hose
    GM1697051Courtesy of GENERAL MOTORS COMPANY
  3. Install the brake booster vacuum hose to the intake manifold nipple.
  4. Position the brake booster vacuum hose clamp at the intake manifold.
  5. Install the intake manifold. Refer to Intake Manifold Replacement (RPOs LC9, LMG, LY5, L76) , Intake Manifold Replacement (RPOs LY2, LY6) , Intake Manifold Replacement (Except RPOs LY2, LY6, LC9, LMG, LY5) .
