Removal Procedure
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 GMC Yukon XL, 2012 GMC Yukon, 2012 Chevrolet Tahoe, 2012 Chevrolet Suburban, and 2012 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
- Install the front shock absorber assembly in the CH-48845 spring compressor.

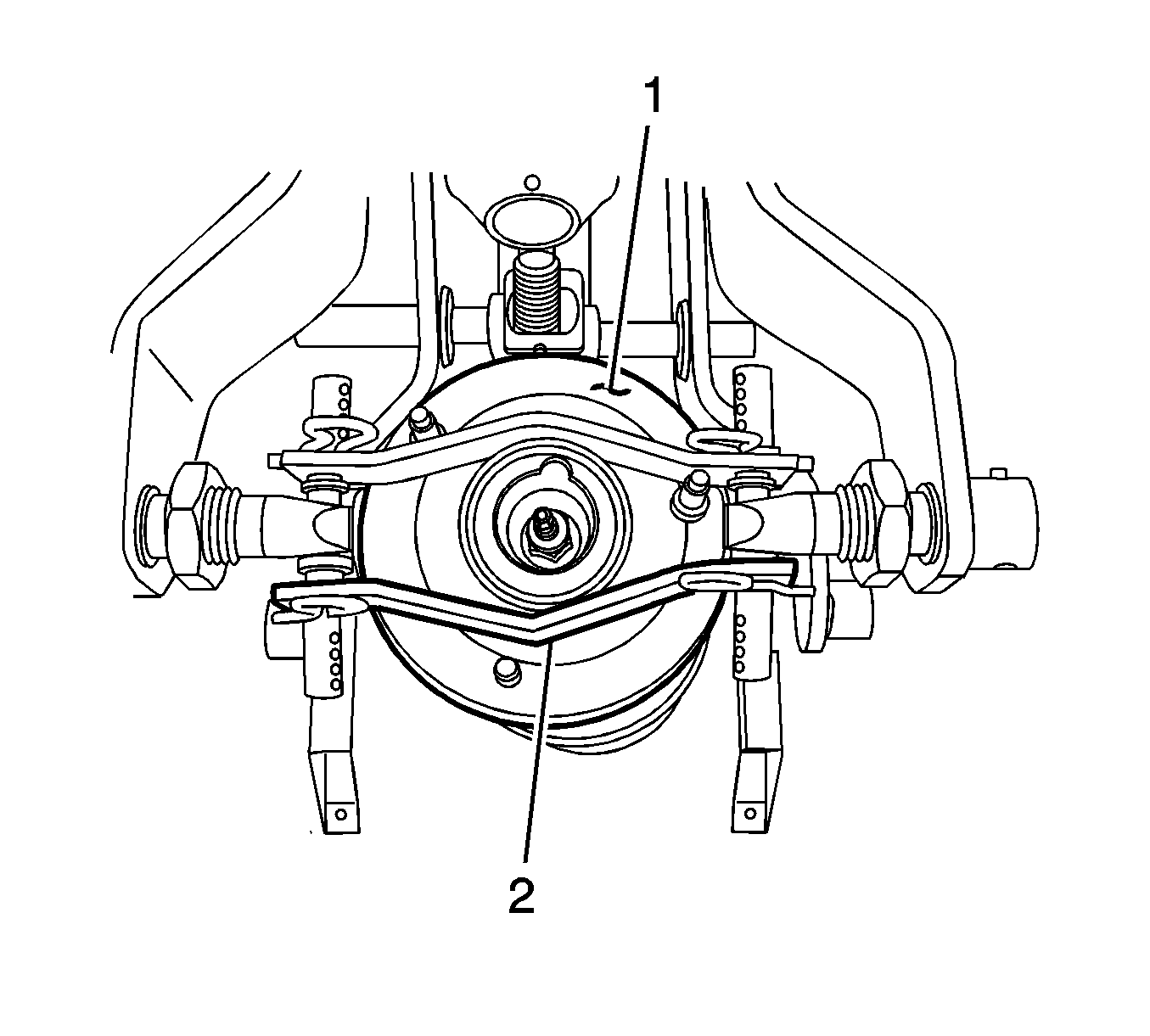

- Position the shock absorber (2) in the upper retaining bracket of the CH-48845 spring compressor (1) so the shock absorber will be centered.

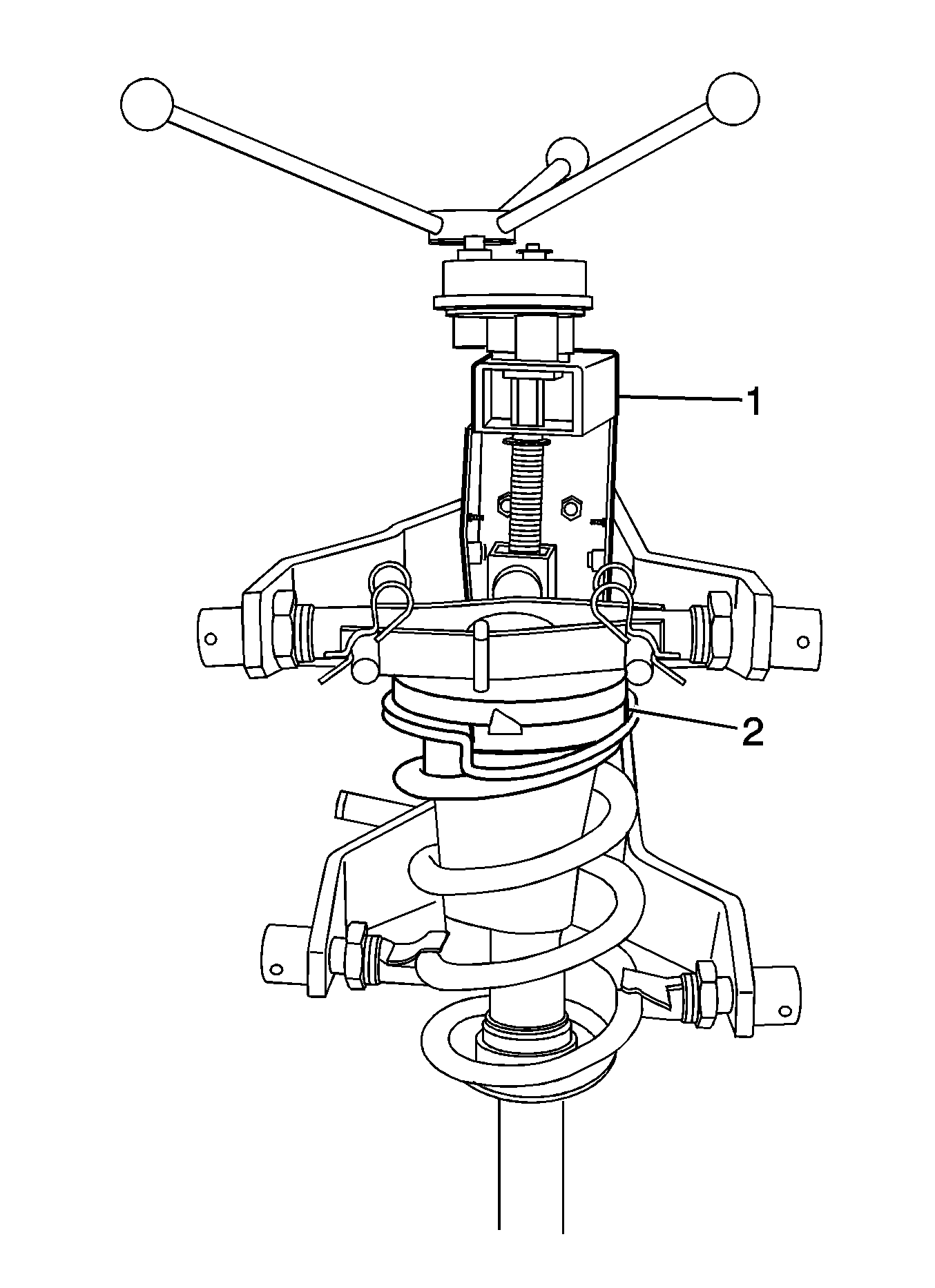

- Using the CH-48845 spring compressor (1), compress the front spring (2).
- Using the appropriate size wrench, hold the shock absorber shaft.

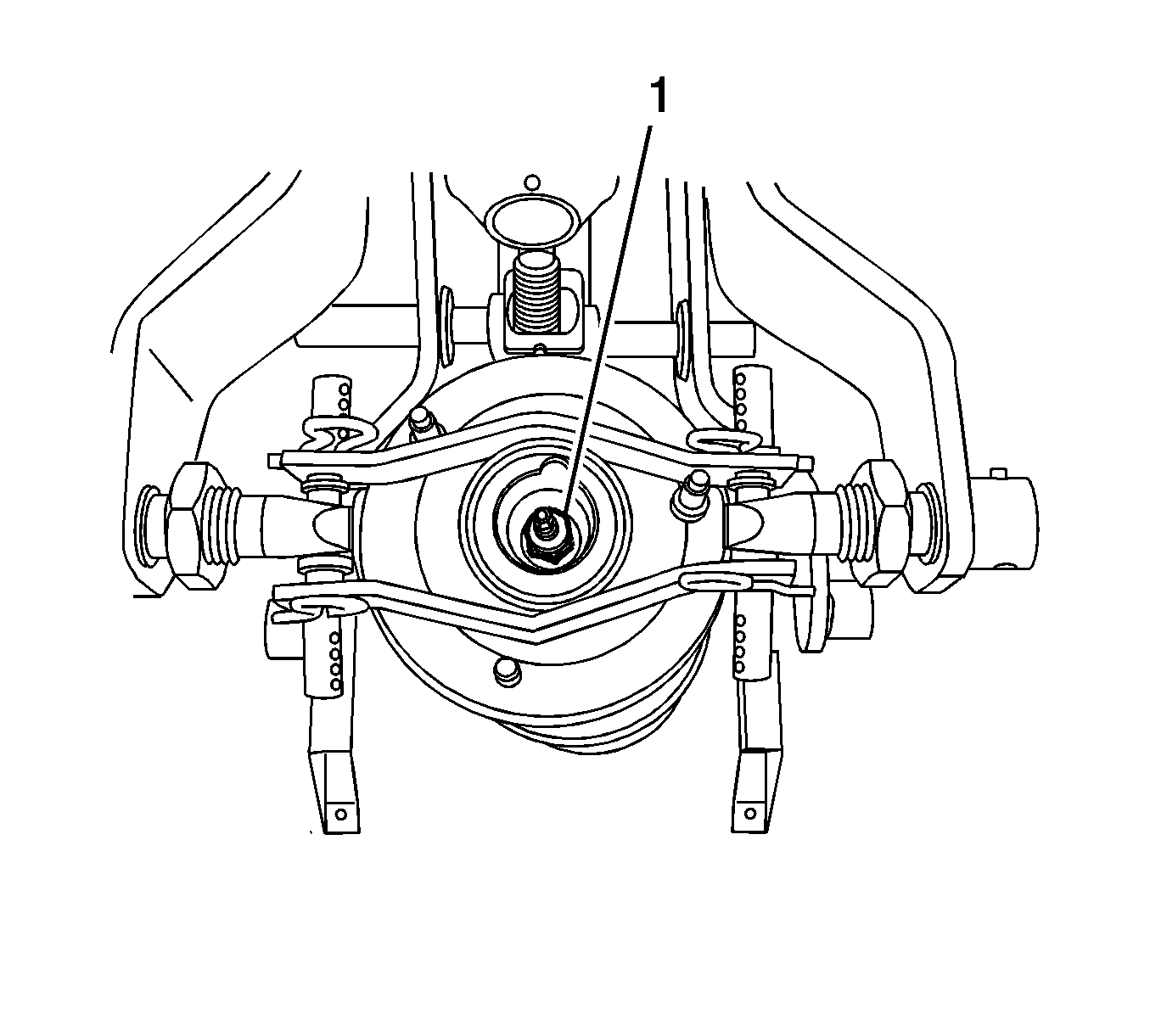

- Using the appropriate tool, remove and discard the shock absorber nut (1).
- Remove the front lower shock absorber (2) and the front spring lower insulator (1).
- Remove the front suspension strut mount (1), front spring upper seat (2), front suspension strut bumper (3), front spring upper insulator (4), and the front suspension spring (5) from the spring compressor.
WARNING:
Use only the CH-48845 Spring Compressor when servicing suspension components on this vehicle. Other tools may not be strong enough for the springs on this vehicle and you could be injured if you do not use Special Tool CH-48845. Failure to do so could result in serious personal injury.
NOTE:
Use only hand tools to perform the following service procedure.
NOTE:
For vehicles equipped with electronic suspension control, ensure that the upper retaining bracket of the CH-48845 is adjusted properly so that it DOES NOT damage the front suspension mount.
