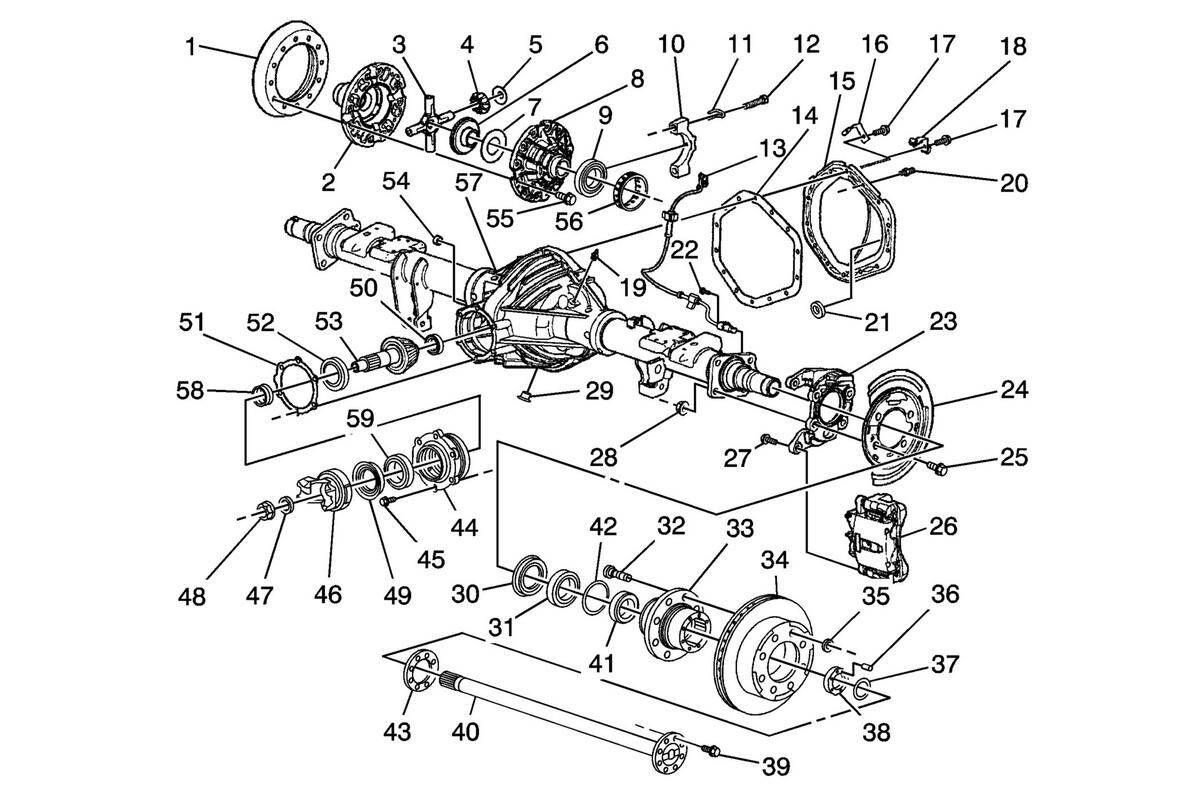

Rear Axle Disassembled Views (10.5 inch VSES)
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 GMC Yukon XL, 2012 GMC Yukon, 2012 Chevrolet Tahoe, 2012 Chevrolet Suburban, and 2012 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Differential Ring Gear |
| 2 | Differential Case |
| 3 | Differential Pinion Gear Spider |
| 4 | Differential Pinion Gear |
| 5 | Differential Pinion Gar Thrust Washer |
| 6 | Differential Side and Pinion Gear |
| 7 | Differential Side Gear Thrust Washer |
| 8 | Differential Case |
| 9 | Differential Bearing |
| 10 | Differential Bearing Cap |
| 11 | Differential Bearing Adjusting Nut Lock |
| 12 | Differential Bearing Cap Bolt |
| 13 | Rear Wheel Speed Sensor |
| 14 | Rear Axle Housing Cover Gasket |
| 15 | Rear Axle Housing Cover |
| 16 | Rear Brake Pipe Clip |
| 17 | Rear Axle Housing Cover Bolt |
| 18 | Park Brake Rear Cable Clip |
| 19 | Rear Axle Vent Hose Connector |
| 20 | Rear Axle Housing Cover Stud |
| 21 | Rear Axle Housing Chip Collector Magnet |
| 22 | Rear Wheel Speed Sensor Bolt |
| 23 | Rear Park Brake Anchor Backing Plate |
| 24 | Rear Brake Shield |
| 25 | Park Brake Bolt |
| 26 | Rear Brake Caliper |
| 27 | Rear Brake Caliper Bolt |
| 28 | Rear Brake Backing Plate Nut |
| 29 | Rear Axle Housing Drain Plug |
| 30 | Rear Axle Shaft Seal |
| 31 | Rear Wheel Inner Cup and Cone Bearing |
| 32 | Rear Wheel Stud |
| 33 | Rear Wheel Hub |
| 34 | Rear Brake Rotor |
| 35 | Wheel Nut |
| 36 | Rear Wheel Bearing Adjusting Nut Key |
| 37 | Rear Wheel Bearing Adjusting Nut Key Retainer |
| 38 | Rear Wheel Bearing Adjusting Nut |
| 39 | Rear Axle Shaft Bolt |
| 40 | Rear Axle Shaft |
| 41 | Rear Wheel Outer Cup and Cone Bearing |
| 42 | Rear Wheel Bearing Retainer |
| 43 | Rear Axle Shaft Gasket |
| 44 | Differential Drive Pinion Gear Bearing Retainer |
| 45 | Differential Drive Pinion Gear Bearing Bolt |
| 46 | Differential Drive Pinion Gear Yoke Kit |
| 47 | Differential Drive Pinion Gear Washer |
| 48 | Differential Drive Pinion Gear Nut |
| 49 | Differential Drive Pinion Gear Seal |
| 50 | Differential Drive Pinion Gear Pilot Bearing |
| 51 | Differential Drive Pinion Gear Bearing Shim |
| 52 | Differential Drive Pinion Gear Inner Bearing |
| 53 | Differential Ring and Drive Pinion Gear Set |
| 54 | Headless Square Socket Plug |
| 55 | Rear Differential Ring Gear Bolt |
| 56 | Differential Bearing Adjusting Nut |
| 57 | Rear Axle Housing |
| 58 | Differential Drive Pinion Gear Bearing Spacer |
| 59 | Differential Drive Pinion Gear Outer Bearing |
