Air Suspension Schematics

WARNING: This page is about a different car, the 2007 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

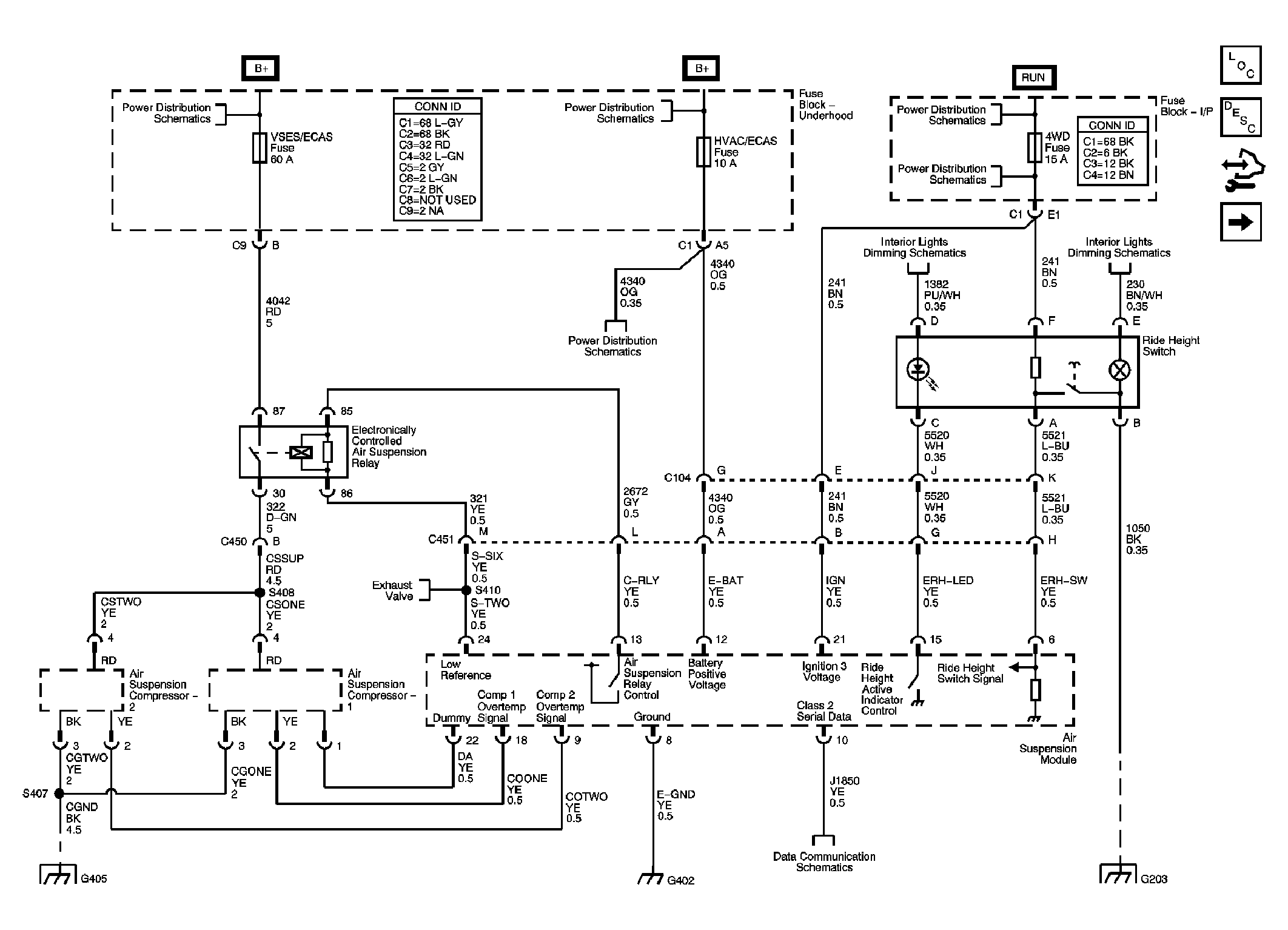

Fig 1: Power, Ground, Serial Data, and Ride Height Switch

Courtesy of GENERAL MOTORS CORP.

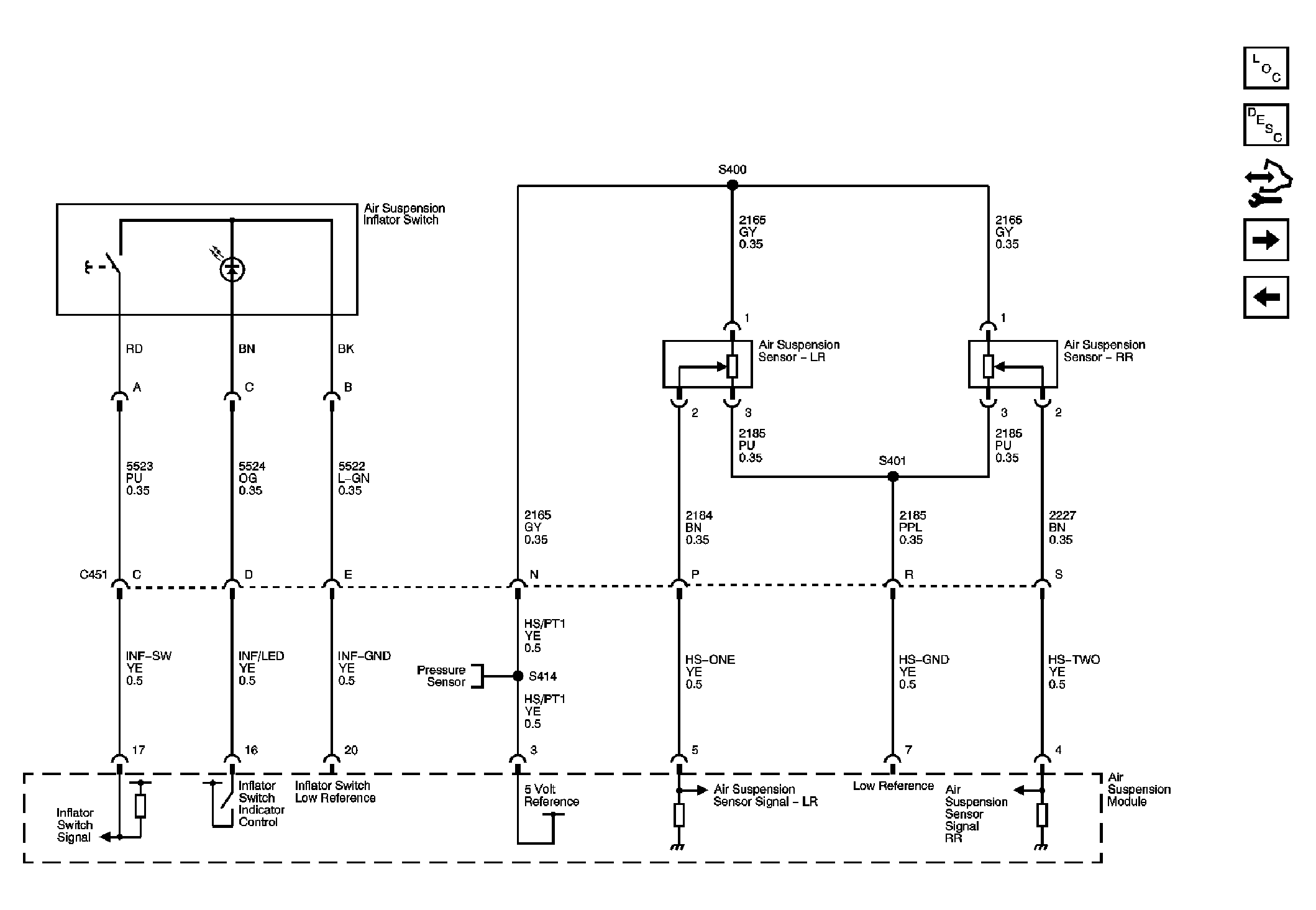

Fig 2: Inflator Switch and Position Sensors

Courtesy of GENERAL MOTORS CORP.

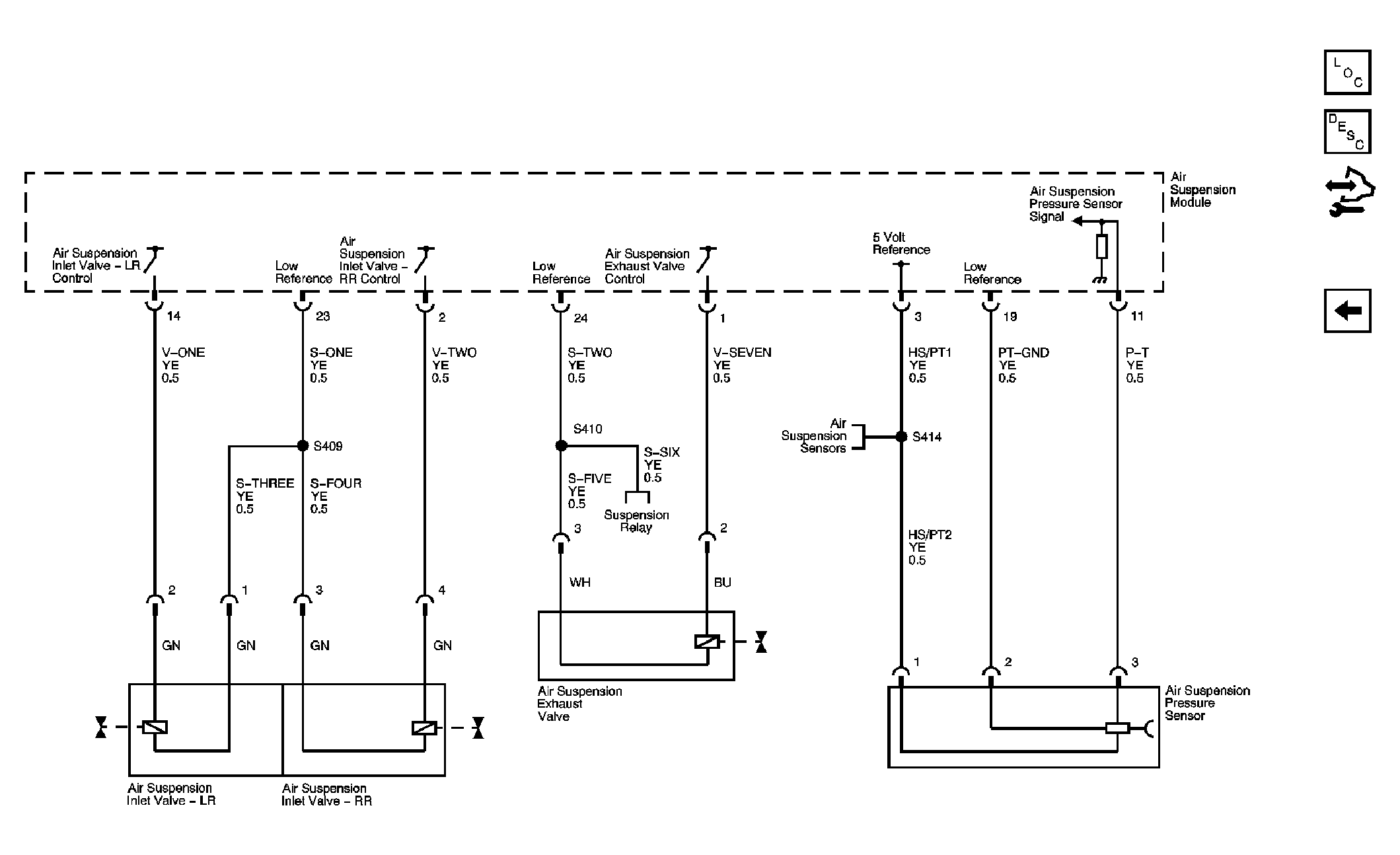

Fig 3: Solenoid Valves and Pressure Sensors

Courtesy of GENERAL MOTORS CORP.
