Removal Procedure

WARNING: This page is about a different car, the 2007 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the rear tire and wheel. Refer to Tire and Wheel Removal and Installation .
  3. Support the rear axle at the proper D height. Refer to Trim Height Specifications .
    4. Fig 1: Air Spring Level Sensor Link
    GM793287Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the air spring level sensor link from the upper control arm.
  5. Disconnect the air spring level sensor electrical connector located on the frame. Do not attempt to separate the connection at the sensor.

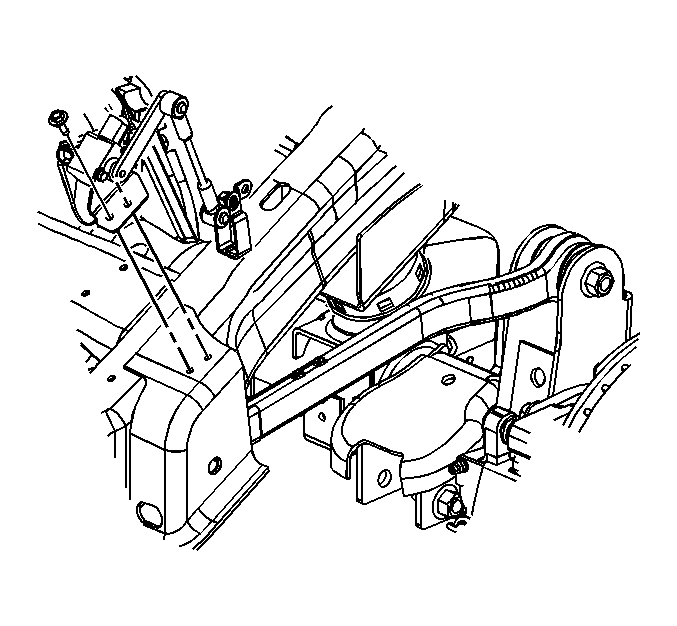

    6. Fig 2: Air Spring Level Sensor
    GM793285Courtesy of GENERAL MOTORS CORP.
  6. Remove the air spring level sensor to the frame mounting bolts.
  7. Remove the air spring level sensor.
