Rear Brake Hose Replacement (Frame to Rear Axle JH6)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 GMC Yukon XL, 2012 GMC Yukon, 2012 Chevrolet Tahoe, 2012 Chevrolet Suburban, and 2012 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

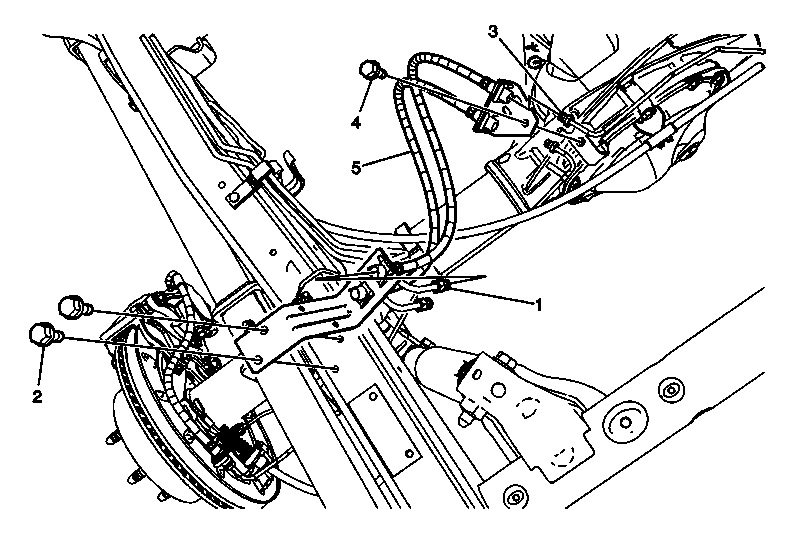

Fig 1: Rear Brake Hose Replacement (Frame to Axle - JD9, JF3 w/JL4)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Brake Dust Warning . WARNING: Refer to Brake Fluid Irritant Warning . Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Brake Pipe Fitting (Qty: 2) CAUTION: Refer to Fastener Caution . Procedure Remove any dirt or debris from the brake pipe fitting. Cap the brake pipe fitting to prevent brake fluid loss and contamination. Tighten 25 N.m (18 lb ft)
2	Hose Bracket to Frame Bolt (Qty: 2) Tighten 25 N.m (18 lb ft)
3	Brake Pipe Fitting (Qty: 2) Procedure Remove any dirt or debris from the brake pipe fittings. Cap the brake pipe fittings to prevent brake fluid loss and contamination. Tighten 25 N.m (18 lb ft)
4	Hose to Rear Axle Bolt Tighten 25 N.m (18 lb ft)
5	Rear Brake Hose Assembly Procedure Bleed the hydraulic brake system. Refer to Hydraulic Brake System Bleeding (Pressure) , Hydraulic Brake System Bleeding (Two-mode Hybrid) , Hydraulic Brake System Bleeding (Manual) .
