Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 GMC Yukon XL, 2012 GMC Yukon, 2012 Chevrolet Tahoe, 2012 Chevrolet Suburban, and 2012 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Block the drive wheels.
    2. Fig 1: Brake Pedal Position Sensor Bolt
    GM2690215Courtesy of GENERAL MOTORS COMPANY
  2. Disconnect the brake pedal position sensor electrical connector.
  3. Remove the brake pedal position sensor bolt (1).
    4. Fig 2: Brake Pedal Position Sensor
    GM2690226Courtesy of GENERAL MOTORS COMPANY
  4. Remove the brake pedal position sensor (1).
    5. Fig 3: Power Brake Booster Pushrod Retaining Clip Bolt
    GM2716605Courtesy of GENERAL MOTORS COMPANY
  5. Remove the power brake booster pushrod retaining clip bolt (1).
    6. Fig 4: Power Brake Booster Pushrod Retaining Clip
    GM2716606Courtesy of GENERAL MOTORS COMPANY
  6. Remove the power brake booster pushrod retaining clip (1).
  7. Disconnect the power brake booster pushrod.
    8. Fig 5: Brake Pedal Pivot Nut
    GM2716607Courtesy of GENERAL MOTORS COMPANY
  8. Remove the brake pedal pivot nut (1).
    9. Fig 6: Brake Pedal Pivot Bolt
    GM2716608Courtesy of GENERAL MOTORS COMPANY
  9. Remove the brake pedal pivot bolt (1).

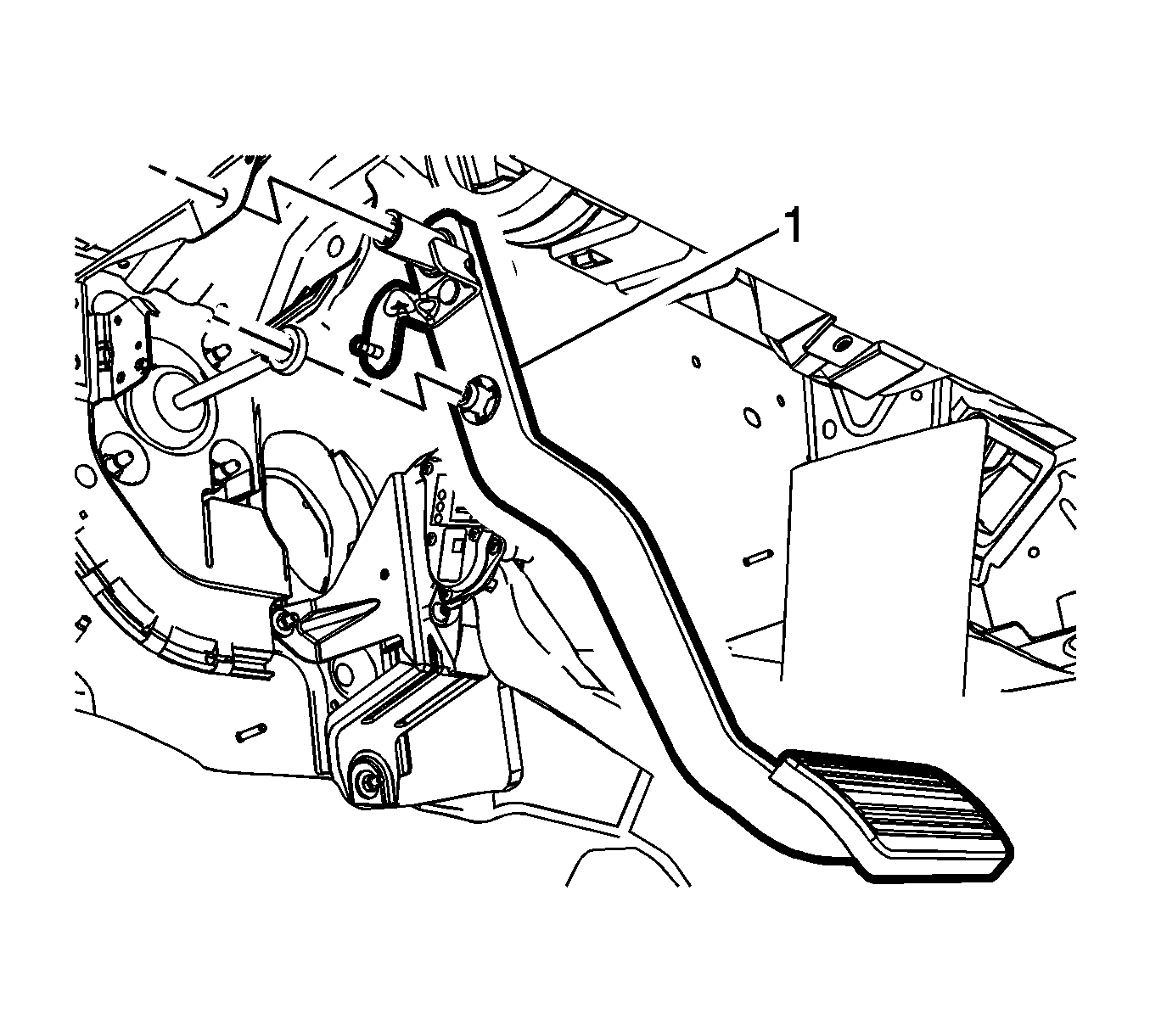

    10. Fig 7: Brake Pedal
    GM2716609Courtesy of GENERAL MOTORS COMPANY
  10. Remove the brake pedal (1).
