Section 476 (Antilock Brake System - Hybrid (Hp2))
>>
Schematic Wiring Diagrams
>>
Antilock Brake System Wiring Schematics
>>
Sensors Wiring Schematics
Sensors Wiring Schematics
WARNING:
This page is about a different car, the 2012 GMC Yukon, 2012 Chevrolet Tahoe, and 2012 Cadillac Escalade. However, it is still accessible from the selected car via links, so may be relevant.

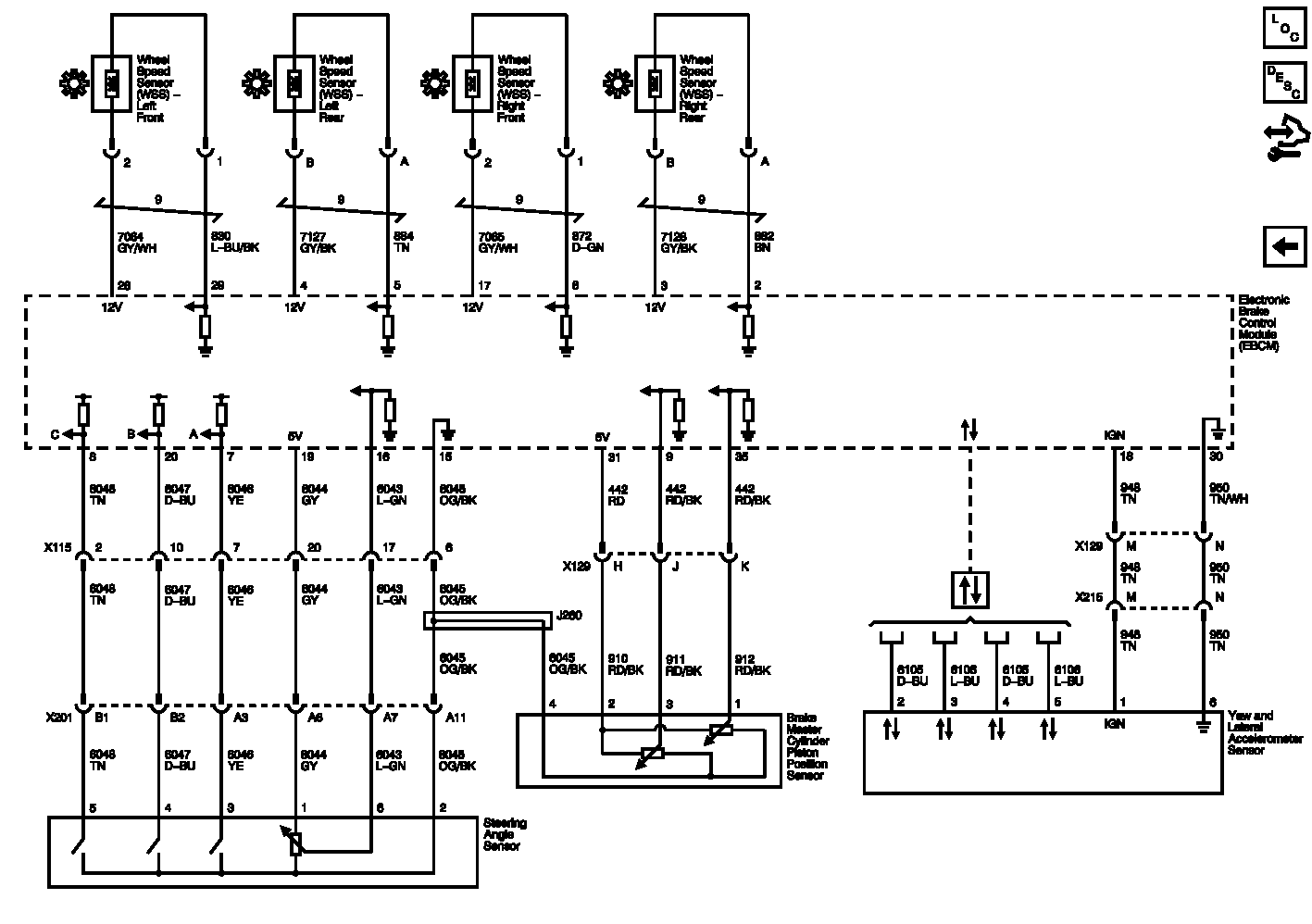

Fig 1: Sensors Wiring Schematics
Courtesy of GENERAL MOTORS COMPANY
